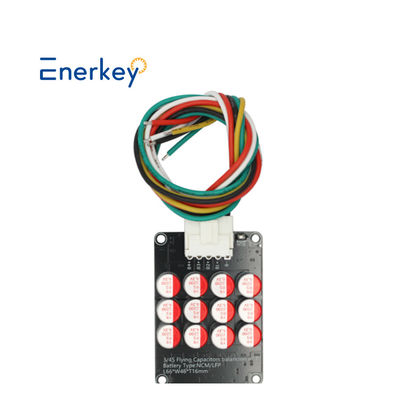

LiFePO4 3S 4S 5A Active Balancer



Active balancing is a technique that improves the battery life by maximizing the capacity of a battery pack with multiple cells, ensuring that all of its energy is available for use.

The Balancer comes with wiring, pre-assembled, ready for use.

Installation should be completed by a qualified auto electrician only.



There are two different types of Battery equalizers:



Passive Battery Equalizer or balancer(Passive balancers)
Active Battery Equalizer or balancer(Active balancers)
The active battery equalizer in this method the battery equalizer have inductor or capacitors to balance the batteries they will use using their extra energy that stores in the battery with higher voltage to charging the other battery that has lower voltage so the active battery equalizer has higher efficiency than the passive type but it is expensive.
We also sells Enerkey 6s,8s,14s,16s,21s and inductive balancers like 4s 1.2A, 8s 1.2A, 14s 1.2A, 17s 1.2A, 4s 10A and 8s 10A Inductive balancers.



Technical Parameters



EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product strings	3S	4S	5S
Suitable strings	3S	3-4S	4-5S
Product Size(mm)	L66*W35*T16	L66*W46*T16	L69*W58*T16
Weight with box	0.12kg	0.13kg	0.15kg
Battery Type	NCM/LFP	NCM/LFP	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
Voltage equalization accuracy	5mV (typical value)
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃





Packing List

 Wire connect

A single EK-C4S5A supports the use of 3s and 4s string battery packs. The wiring method is as follows:

EK-C4S5A supports cascading battery packs. Fox exmple, 2pcs of 4s cascade to 7s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
