This active equalizer is a transformer push-pull rectification feedback type, real-time, dynamic, synchronous, and energy transfer type.



Specification:
Item Type:Smart Active Balancer
Applicable Battery Type: Ternary lithium, lithium iron
Adaptable Battery Strings Number: 2-24 strings
Minimum Balance Voltage: 30mV
Maximum Equalizing Current: 8A
Forced Equilibrium Timing: 60 minutes

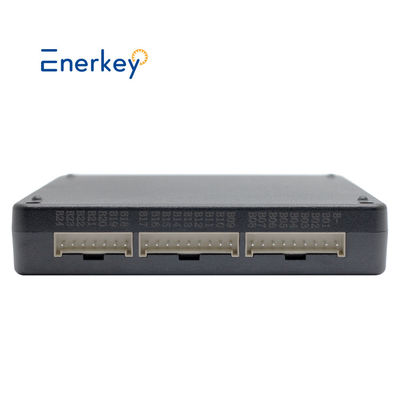

Cable Interface: 3.81 interface
Low Voltage Automatic Shutdown: 2.7V (2.5V)/string
Balance Method: Parallel energy transfer method
Standby Load Power Consumption: Battery Balance Power Consumption after Startup: 80mA (voltage difference = 10mV)
Automatic Start Trigger Voltage: +70mV
Automatic Start Off Voltage: +20mV



Applicable cells:

lithium iron phosphate (3.2V), ternary lithium (3.7V), lithium titanate. When using lithium titanate batteries, please note when purchasing.





Technical Parameters

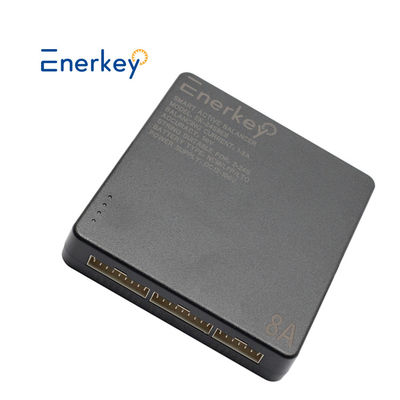

Product model	8A Smart Active Balancer for 2-24s (EK-24S8EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~8A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)

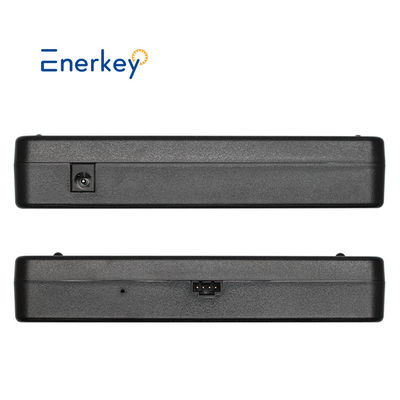

External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Base station backup power supply,Solar power station

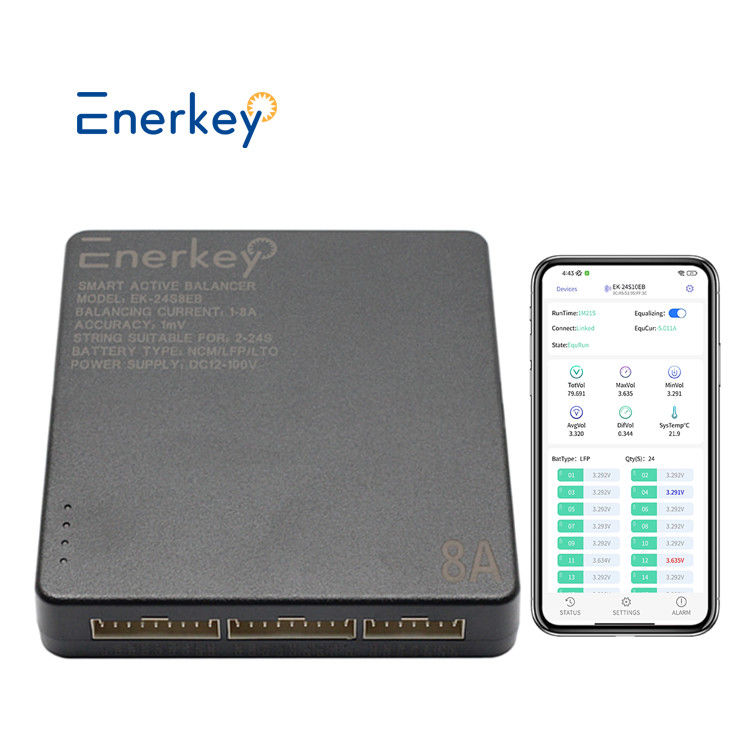

Indicator Light Definition

Green – Power supply status indicator light

Always on: power supply is good



Blue – Bluetooth status indicator light

Always on: connected successfully

Flash: disconnect



Yellow – Work status indicator light

Always on: equalization is finished

Flash: equalizer at work



Red – Malfunction status indicator light

Always on: The number of battery cells does not match the setting

Flash: The resistance of equalizer line is excessive

Packing List

 Use Manual

Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:
