The 16S 4A Active Balancer offers several important features for effective battery management:

Active Balancing: Efficiently redistributes energy from higher-voltage cells to lower-voltage ones, optimizing battery performance.

4A Current Rating: Capable of balancing up to 4A, making it suitable for high-capacity battery packs.



16-Series Support: Specifically designed for managing 16 series-connected cells, ensuring balanced operation across the entire pack.

Real-Time Monitoring: Monitors voltage and temperature of each cell continuously, enhancing safety and performance.

Communication Protocols: Supports customized various interfaces like CAN or UART for seamless integration with battery management systems.





Technical Parameters

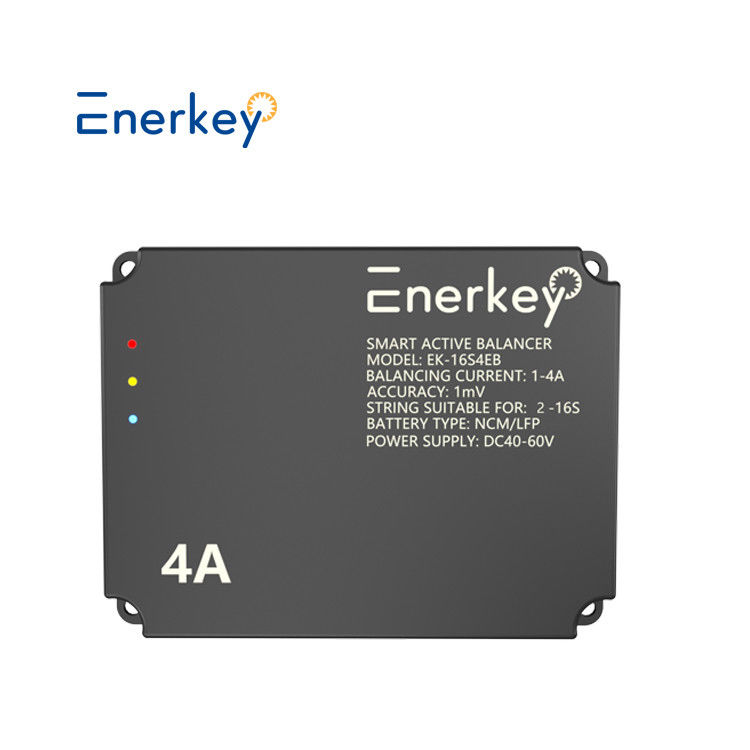

Product model	16S 4A Smart Active Balancer for 2-16s (EK-16S4EB)
Supported battery type	NCM / LFP(Li-ion/Lifepo4)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~4A
Whether an external power supply is required	When the total battery system voltage is below 24V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

EK-16S4EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
