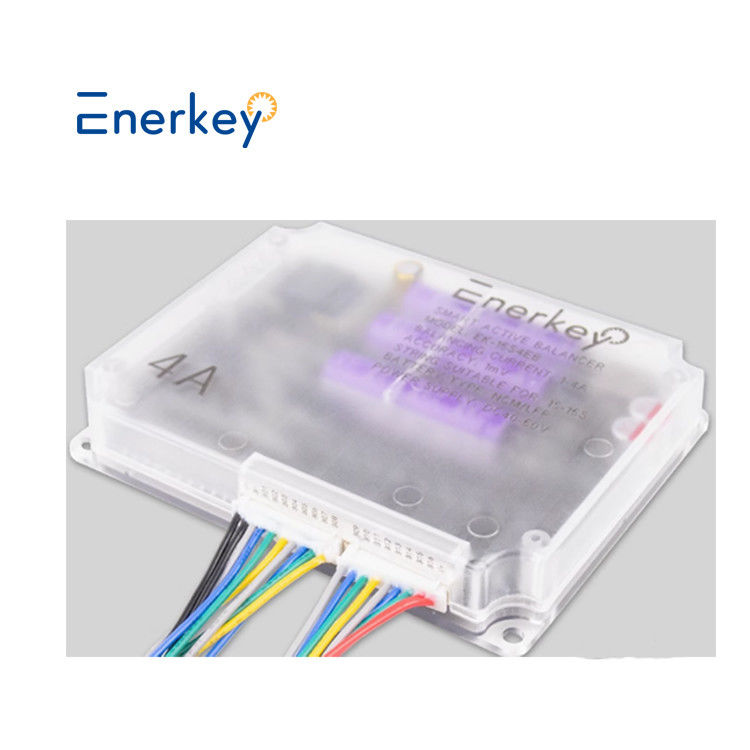

16S 4A 15S-16S Smart Active Balancer Equalizer 45-112volt 4A max - NMC/ LFP - For Lithium Battery Packs



The 16S 4A Active Balancer offers several advantages:

Improved Efficiency: Active balancing redistributes energy, reducing energy losses and enhancing overall battery efficiency.

Extended Battery Life: By ensuring even charge distribution, it minimizes cell wear and extends the lifespan of the battery pack.

Enhanced Performance: Maintains optimal voltage levels across cells, leading to better overall performance in applications.





Technical Parameters

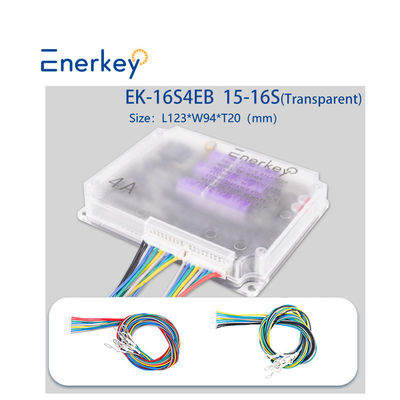

Product model	16S 4A Smart Active Balancer for 15-16S (EK-16S4EB)
Supported battery type	NCM / LFP(Li-ion/Lifepo4)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~4A
Whether an external power supply is required	When the total battery system voltage is below 24V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

EK-16S4EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
