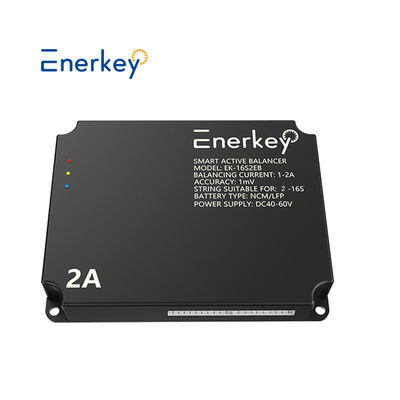

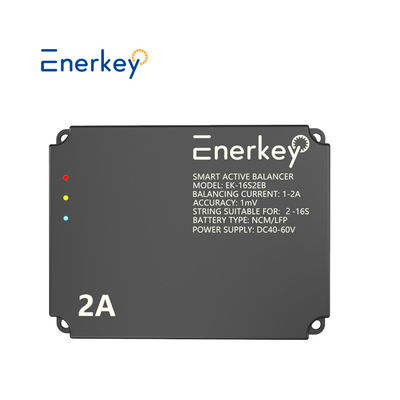

Product model: EK-16S2EB

Unit quantity (S) :2S～16S

Cascading: Support

Product size:L123 x W94 x T20(mm)

Weight (package concluded): 220g

Supported battery type: NCM / LFP

Single cell voltage collection range :1.5V～4.5V



Product use manual
1.Download app and manual, Please contact us to send you
2.Wire connection as our wire diagram
3.Startup
4. Open the app and connect the device
5.Set the number of strings and battery type and capacity and stop voltage and run voltage and start balance current.
6.Check the battery status
①.Scan the following QR codes to download app, instructions and videos.
②.Connect the protection board and battery pack according to the following wiring diagram, Make sure that the last power cord is also connected to the main positive pole, The total voltage of the battery pack must be greater than 25V before starting up
③.Make sure your mobile Bluetooth is turned on, then turn on APP click on the top left corner of APP to search for devices, and click on the device name to connect to the default password: 12345





Technical Parameters

Product model	16S 2A Smart Active Balancer for 2-16s (EK-16S2EB)
Supported battery type	NCM / LFP(Li-ion/Lifepo4)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~2A
Whether an external power supply is required	When the total battery system voltage is below 24V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle

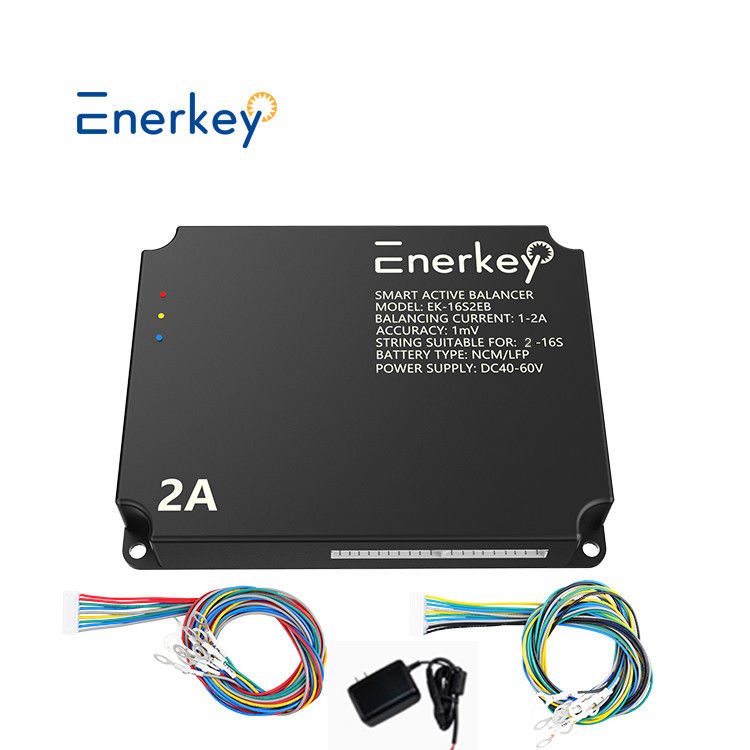

Packing List





 Use Manual

Wiring Diagram

EK-16S2EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
