Active balancing energy transfer



When the BMS chip detects that the battery voltage gap is too large, it immediately starts the balancing control. Under the control of the energy transfer circuit, the high-voltage battery transfers energy to the adjacent low-voltage battery,

increases the voltage of the adjacent low-voltage battery, and makes the voltage of the adjacent battery equal or similar,

and finally achieves the same voltage for all the batteries in the entire battery pack (the highest can be charged to the lowest, the highest can be charged to the entire group, or the entire group can be charged to the lowest).



During balancing, a short-term high current can be used to achieve fast balancing; therefore, the active balancing method has relatively low requirements for battery consistency, and it is better than the passive balancing method in performance.

Even though its structure is relatively complex and the cost is relatively high, it may still become the mainstream method of BMS power balancing in the future.



Technical Parameters

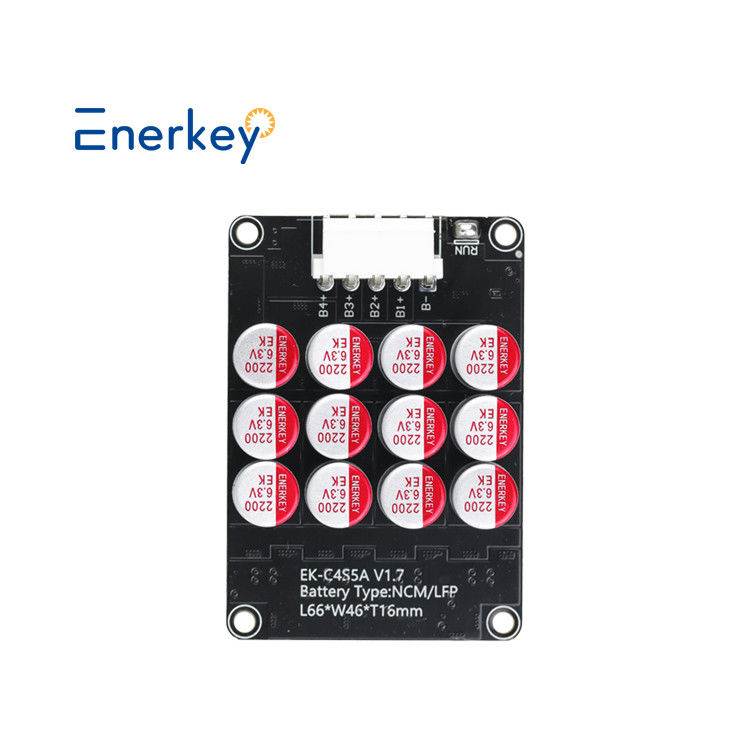

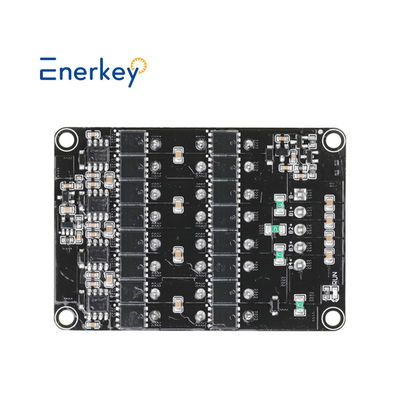

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product strings	3S	4S	5S
Suitable strings	3S	3-4S	4-5S
Product Size(mm)	L66*W35*T16	L66*W46*T16	L69*W58*T16
Weight with box	0.12kg	0.13kg	0.15kg
Battery Type	NCM/LFP	NCM/LFP	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
Voltage equalization accuracy	5mV (typical value)
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃





Packing List

 Wire connect

A single EK-C4S5A supports the use of 3s and 4s string battery packs. The wiring method is as follows:

EK-C4S5A supports cascading battery packs. Fox exmple, 2pcs of 4s cascade to 7s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
