| Brand Name: | ENERKEY |
| Model Number: | JW-B1S10A-359 |
| MOQ: | 2 pieces |
| Price: | $2.20/pieces 2-99 pieces |
| Packaging Details: | Carton |
|
Electric Parameter
|
|
|
|
|
|
|
||||||
|

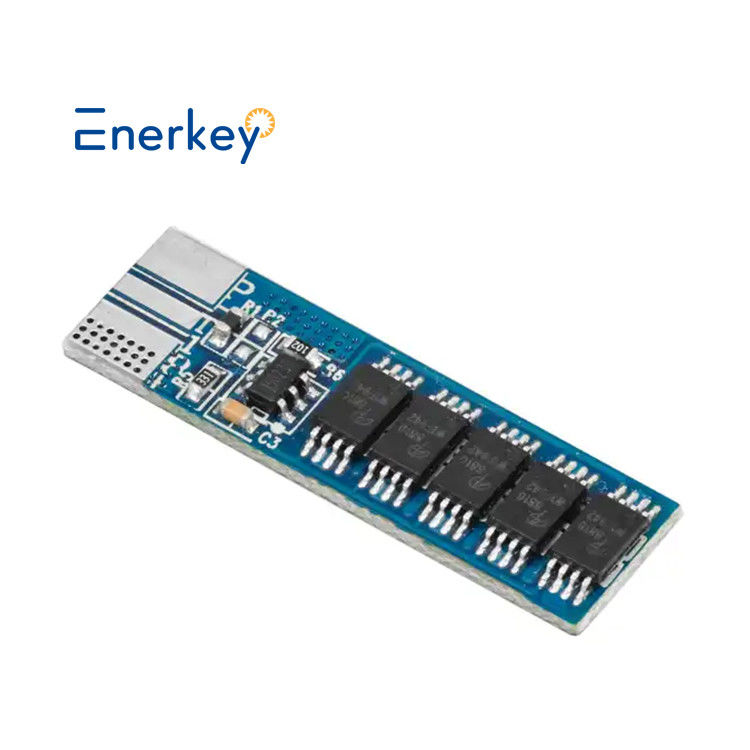

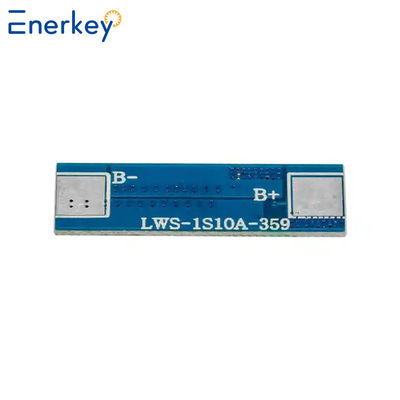

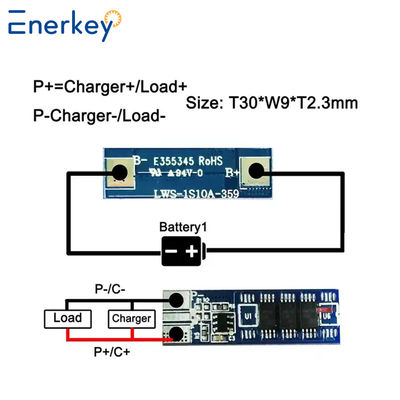

PCM Specifications For 3.7V(1S)Li-ion Battery Packs
|
|
|
|
|
|
|
||||||
|
Model:JW-B1S10A-359
|
|
|
|
|
|
|
||||||
|
NO.
|
Project
|
|
Min.
|
Typ.
|
Max.
|
Unit
|
||||||
|
1
|
voltage
|
Charging voltage
|
|
4.2
|
|
V
|
||||||
|
|
|
Balance voltage for single cell
|
/
|
/
|
/
|
V
|
||||||
|
2
|
Current
|
Balance current for single cell
|
|
|
/
|
mA
|
||||||
|
|
|
Current consumption
|
|
|
15
|
uA
|
||||||
|
|
|
Maximal continuous charging current
|
|
|
10
|
A
|
||||||
|
|
|
Maximal continuous discharging current
|
|
|
10
|
A
|
||||||
|
3
|
Over charge protection
|
Overcharge detection voltage for single cell
|
4.300
|
4.325
|
4.350
|
A
|
||||||
|
|
|
Overcharge detection delay time
|
0.7
|
|
1.3
|
S
|
||||||
|
|
|
Overcharge release voltage for single cell
|
4.00
|
4.05
|
4.10
|
V
|
||||||
|
4
|
Over discharge protection
|
Overdischarge detection voltage for single cell
|
3.438
|
3.50
|
3.562
|
V
|
||||||
|
|
|
Overdischarge detection delay time
|
14
|
|
26
|
mS
|
||||||
|
|
|
Overdischarge release voltage for single cell
|
3.4
|
3.5
|
3.6
|
V
|
||||||
|
5
|
Overcurrent protection
|
Over current detection voltage
|
0.18
|
0.2
|
0.22
|
V
|
||||||
|
|
|
Over current detection current
|
17
|
20
|
23
|
A
|
||||||
|
|
|
Detection delay time
|
8
|
|
16
|
mS
|
||||||
|
|
|
Release condition
|
Cut load
|
|
|
|
||||||
|
6
|
Short protection
|
Detection condition
|
Exterior short circuit
|
|
|
|
||||||
|
|
|
Detection delay time
|
200
|
|
500
|
μS
|
||||||
|
|
|
Release condition
|
Cut load
|
|
|
|
||||||
|
7
|
Resistance
|
Protection circuitry (MOSFET)
|
|
|
50
|
mΩ
|
||||||
|
8
|
Temperature
|
Operating Temperature Range
|
-40
|
|
85
|
℃
|
||||||
|
|
|
Storage Temperature Range
|
-40
|
|
125
|
℃
|
||||||
|
|
