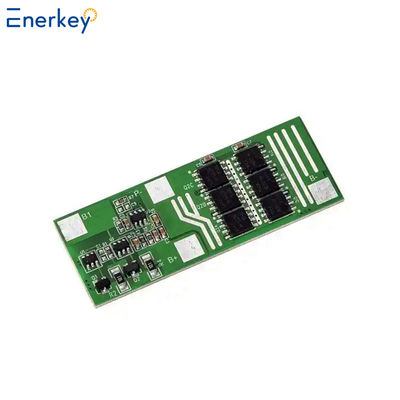

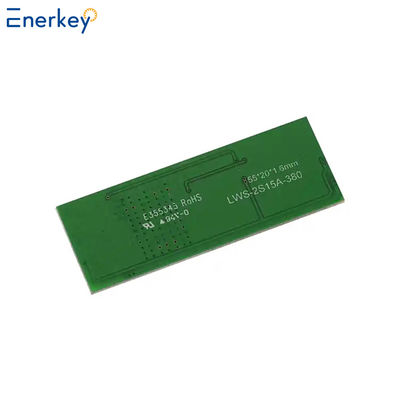

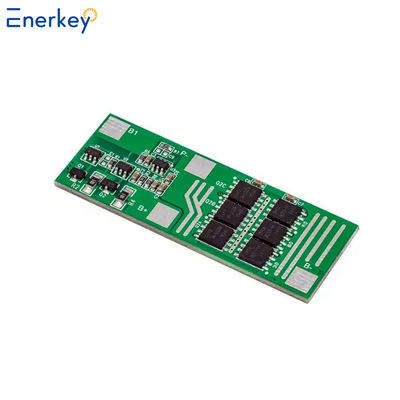

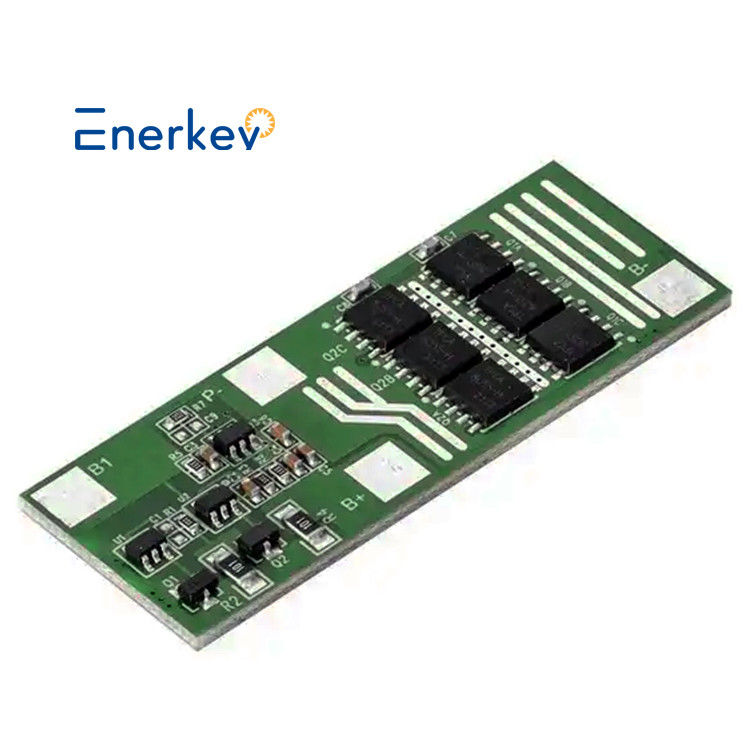

| Brand Name: | ENERKEY |
| Model Number: | JW-2S15A-380 |
| MOQ: | 2 pieces |
| Price: | $6.90/pieces 2-99 pieces |
| Packaging Details: | Carton |
|
Electric Parameter
|
|
|
|
|
|
|
||||||
|
PCM Specifications For 7.4V(2S)Li-ion Battery Packs
|
|
|
|
|
|
|
||||||
|
Model:JW-B2S8A-014
|
|
|
|
|
|
|
||||||
|
NO.
|
Project
|
|
Min.
|
Typ.
|
Max.
|
Unit
|
||||||
|
1
|
voltage
|
Charging voltage
|
|
7.2
|
|
V
|
||||||
|
|
|
Balance voltage for single cell
|
3.55
|
3.6
|
/3.65
|
V
|
||||||
|
2
|
Current
|
Balance current for single cell
|
31
|
36
|
41
|
mA
|
||||||
|
|
|
Current consumption
|
|
|
20
|
uA
|
||||||
|
|
|
Maximal continuous charging current
|
|
|
20
|
A
|
||||||
|
|
|
Maximal continuous discharging current
|
|
|
20
|
A
|
||||||
|
3
|
Over charge protection
|
Overcharge detection voltage for single cell
|
3.875
|
3.9
|
3.925
|
A
|
||||||
|
|
|
Overcharge detection delay time
|
0.5
|
|
1.5
|
S
|
||||||
|
|
|
Overcharge release voltage for single cell
|
3.40
|
3.45
|
3.50
|
V
|
||||||
|
4
|
Over discharge protection
|
Overdischarge detection voltage for single cell
|
1.95
|
2.00
|
2.05
|
V
|
||||||
|
|
|
Overdischarge detection delay time
|
50
|
|
150
|
mS
|
||||||
|
|
|
Overdischarge release voltage for single cell
|
2.4
|
2.5
|
2.6
|
V
|
||||||
|
5
|
Overcurrent protection
|
Over current detection voltage
|
175
|
200
|
215
|
mV
|
||||||
|
|
|
Over current detection current
|
65
|
75
|
85
|
A
|
||||||
|
|
|
Detection delay time
|
5
|
|
15
|
mS
|
||||||
|
|
|
Release condition
|
Cut load
|
|
|
|
||||||
|
6
|
Short protection
|
Detection condition
|
Exterior short circuit
|
|
|
|
||||||
|
|
|
Detection delay time
|
200
|
|
500
|
μS
|
||||||
|
|
|
Release condition
|
Cut load
|
|
|
|
||||||
|
7
|
Resistance
|
Protection circuitry (MOSFET)
|
|
|
50
|
mΩ
|
||||||
|
8
|
Temperature
|
Operating Temperature Range
|
-40
|
|
85
|
℃
|
||||||
|
|
|
Storage Temperature Range
|
-40
|
|
125
|
℃
|
||||||
A protection board and a battery management system (BMS) are both used to protect lithium-ion batteries, but they serve different functions.

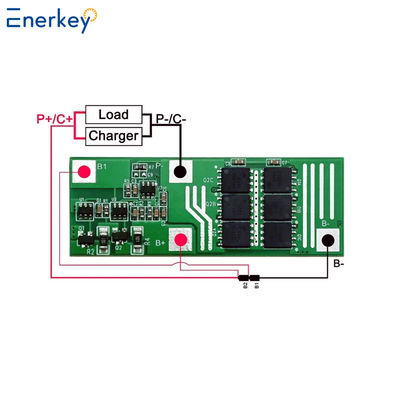

A protection board is a small electronic circuit that is typically placed between the battery and the device it powers. It is designed to prevent overcharging, over-discharging, and short circuits.
Protection boards are relatively simple and inexpensive, and they are often used in applications where only basic battery protection is needed.
|
|
