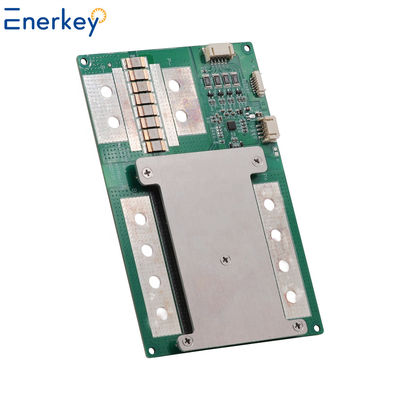

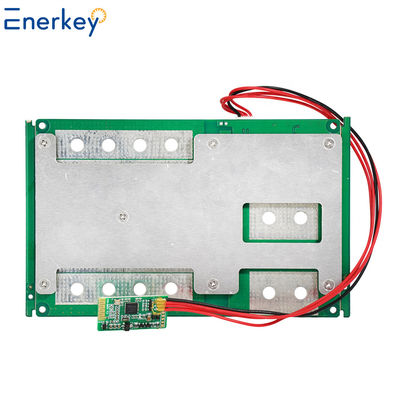

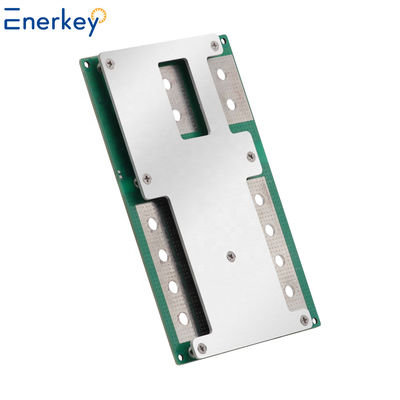

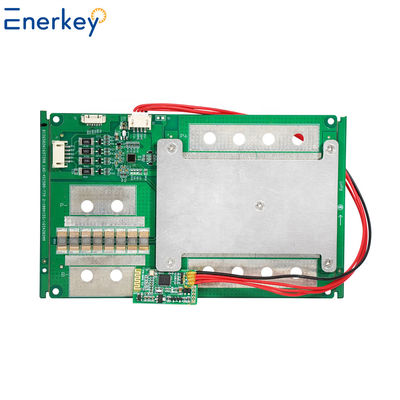

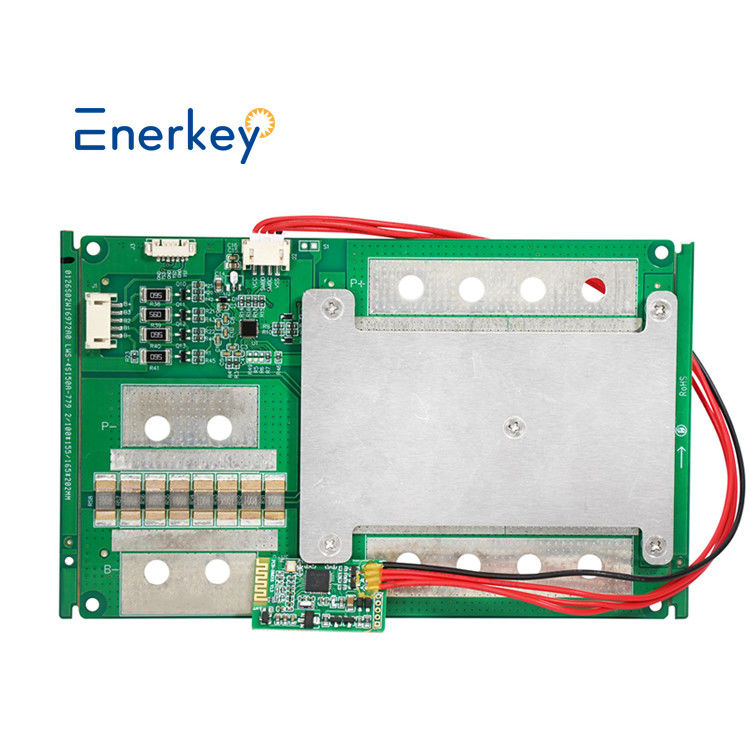

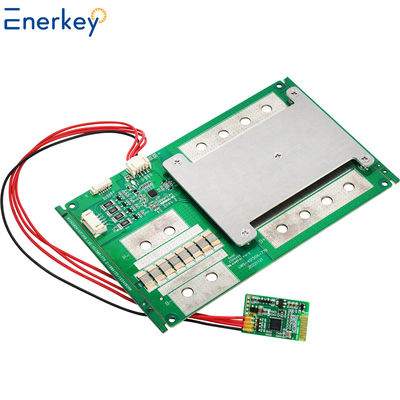

12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type
  • name
  • name
  • name
  • name
  • name
  • name

12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type

Brand Name: ENERKEY
Model Number: JW-4S150A-779
MOQ: 2 pieces
Price: $32.80/pieces 2-999 pieces
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001/ROHS/CE
Features:
4S Battery 150A Current
Application:
Ebike, Solar Products, Etc
Type:
PCM
Mounting Type:
Built-in
Size / Dimension:
L155mm*W100mm*T16mm
Description:
Battery Power Supply Smart BMS
Base Material:
FR-4
Board Thickness:
1.6mm
Surface Finishing:
HASL Lead Free
Solder Mask Color:
Green.White.Black.Red.Yellow.Blue.Purple.Matte Green. Matte Black
Battery Type:
LiFePO4 Battery
Suitable For Battery String:
4S
Voltage:
12.8V
Protection Function:
Overcharge ,Overdischarge ,Overcurrent ,Short-circuit
Other Functions:
Thermistor Temperature Protection,Balance
Supply Ability:
50000 Piece/Pieces per Month
Highlight:

LiFePO4 Battery BMS Board

,

12V Battery BMS Board

,

BMS Protection Board Circuit Module 4S

Product Description
Enerkey Smart BMS Protection Circuit Module 4S 100A 150A BMS for 12V Li-ion/LiFePO4 Battery BMS Board

Product Description
Electric Parameter






Model: JW-B4S150A-779






NO.
Project

Min.
Typ.
Max.
Unit
1
Voltage
Balance voltage for single cell
3.175
3.200
3.225
V
2
Current
Balance current for single cell
50
55
60
mA


Current consumption


70
uA


Maximal continuous charging current


100
A


Maximal continuous discharging current


100
A

3

Over charge protection
Overcharge detection voltage for single cell
3.625
3.75
3.775
A


Overcharge detection delay time
500

1500
mS


Overcharge release voltage  for single cell
3.50
3.55
3.60
V


4

Over discharge protection
Overdischarge detection voltage for single cell
2.25
2.30
2.35
V


Overdischarge detection delay time
500

1500
mS


Overdischarge release voltage for single cell
2.4
2.5
2.6
V





5





Overcurrent protection
Over discharge current protection
230
280
330
mS


Detection delay time 1
500

1500
mS


Detection delay time 2
500

1500
mS


Overcharge current protects current
100

500
A


Detection delay time
500

1500
mS

6

Short circuit protection
Short circuit protection current

500

A


Detection delay time
50

800
μS


Protection condition
Exterior short circuit





Release condition
Cut load,Auto recovery



7
Resistance
The on-state resistance of the main circuit


5
mΩ


8


Temperature Protection
Charging high temperature protection
50
55
60
℃


Charge low temperature protection

0

℃


Discharge high temperature protection
70
75
80
℃


Discharge low temperature protection
-20
-15
-10
℃


Release condition
The temperature drops to 50ºC, charge release




9
Temperature
Operating Temperature Range
-20
/
60
℃


Storage Temperature Range
-20
/
60
℃
10
Break circuit protection
Disconnect the voltage sampling circuit to turn off the charge and discharge
Support



11
NTC Protection
Thermistor temperature protection
Support



12
Electronic switch
Electronic switch
Nonsupport



13
Reverse polarity protection

Support



Function Details
1. Provides protection for 4 series LiFePO4 battery pack
2. Provides protections in charging and discharging
3. Processes the balance between cells smartly, the current of it can be set freely by external components.
4. Deals with over-current and short-circuit protection with circuit itself
5. Protect an electrical circuit from damage caused by over current/ over load or short circuit
6. Support SMBUS protocol
7. Support Bluetooth protocol
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 0
Wiring precautions
First connect the B- of the BMS to the total negative terminal of the battery pack, Wiring B-, B1, B2... B+, output charge and discharge negative electrode connected to P-, charge and discharge positive electrode connected to the total positive electrode, please wire connection strictly according to the drawing and use thick cable to connect with P+/ C+/ B+ and P-/ C-
Product Use Tutorial
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 1
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 2
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 3
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 4
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 5
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 6
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 7
FAQ
12V Li-ion / LiFePO4 Battery BMS Board Protection Circuit Module 4S 100A 150A PCM Type 8
