| Brand Name: | Enerkey |
| Model Number: | EK-B3S50A-balance |
| MOQ: | 10 pieces |
| Price: | $10.88 - $12.56/pieces |

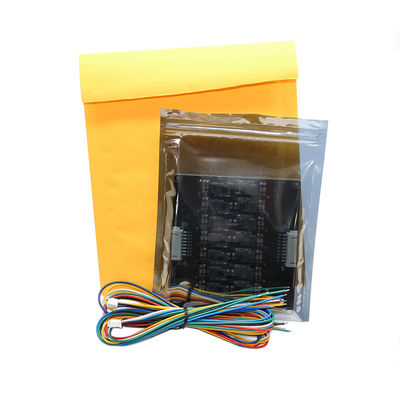

| Packaging Details: | Bubble envelope or carton |

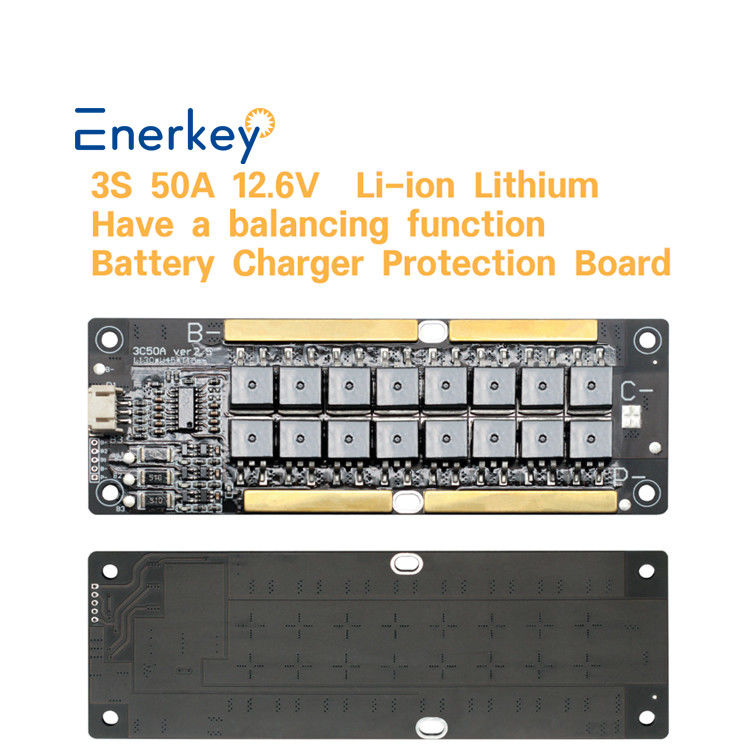

30. 11.1V 12.6V 50A BMS For Ternary Lithium Battery Pack Charger Protection
|
Product Name :
|
Lithium Battery BMS
|
|
Product model:
|
EK-B3S50A
|
|
Unit quantity:
|
3S
|
|
Brand :
|
Enerkey
|
|
Product size :
|
L130 x W45 x T7.3(mm)
|
|
Electric Parameter
|
|
|
|
|
|
|
||||||
|
NO.
|
Project
|
|
Min.
|
Typ.
|
Max.
|
Unit
|
||||||
|
1
|
Parameter
|
Rated operating voltage B+B-
|
|
|
30
|
V
|
||||||
|
|
|

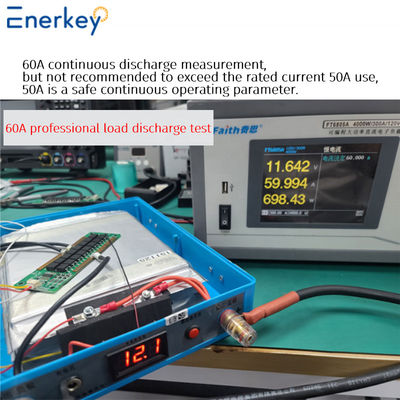

Rated discharge current
|
|
50
|
|
A
|
||||||
|
|
|
Peak starting current
|
|
120
|
|
A
|
||||||
|
2
|
Overcharge protection
|
P+P- Input withstand voltage
|
|
|
40
|
V
|
||||||
|
|
|
Charge overcurrent protection value
|
No limit
|
|
|
A
|
||||||
|
|
|
Charge detection voltage
|
4.200
|
4.225
|
4.250
|
V
|
||||||
|
|
|
Charge detection delay time
|
0.5
|
1
|
1.3
|
S
|
||||||
|
|
|
Overcharge release voltage
|
4.000
|
4.005
|
4.050
|
V
|
||||||
|
3
|
Overdischarge protection
|
Discharge detection voltage
|
2.650
|
2.700
|
2.750
|
V
|
||||||
|
|
|
Discharge detection delay time
|
20
|
100
|
150
|
ms
|
||||||
|
|
|
Discharge release voltage
|
2.85
|
2.95
|
3.05
|
V
|
||||||
|
|
|
Protection release condition
|
Disconnect external load or charge self-recovery
|
|
|
|
||||||
|
4
|
Overcurrent protection
|
Overcurrent detects voltage
|
|
0.1
|
|
V
|
||||||
|
|
|
Overcurrent protection the current
|
110
|
120
|
150
|
A
|
||||||
|
|
|
Overcurrent detection delay time
|
0.7
|
1
|
1.3
|
S
|
||||||
|
|
|
Protection release condition
|
Disconnect external load or charge self-recovery
|
|
|
|
||||||
|
5
|
Short-circuit protection
|
Short-circuit protection current
|
|
150
|
|
A
|
||||||
|
|
|
Short-circuit detection delay time
|
150
|
250
|
400
|
μS
|
||||||
|
|
|
Short-circuit protection release condition
|
Disconnect external load or charge self-recovery
|
|
|
|
||||||
|
6
|
Resistance
|
Main circuit on-state resistance
|
|
1
|
1.5
|
mΩ
|
||||||
|
7
|
Consumption current
|
Usually the operation consumes current
|
|
10
|
15
|
μA
|
||||||
|
8
|
Quiescent current
|
Current consumed during sleep
|
|
|
2.5
|
μA
|
||||||
|
9
|
Operating temperature
|
_
|
-40
|
25
|
85
|
℃
|
||||||
Q1. Why Did We Choose You?
* We Can Provide You With Efficient After-Sales Service, With More Than 10 Years Of Strong Technical Support.
* Products Have Passed FCC, CE, ROHS And Other International Standards Certification.
* We Can Provide You With Factory Price, Welcome You To Visit Our Factory And Production Process.
Q2. What Is Your Product Range (Type)?
*We Mainly Do Battery Management Systems In The Fields Of Power Batteries, Energy Storage Batteries And Consumer Batteries.
*Mainly Used For LFP, Li-Ino And LTO Batteries.
Q3: How Do I Know Which Kind Of Material & Type My Battery Is ?
*Please Look The Battery Body, If The Normal Voltage Of Your Battery Shows 3.2V, The Battery Is LiFePo4.
*If The Normal Voltage Of Your Battery Shows 3.6V Or 3.7V, The Battery Is Li-Ion Or Lto Battery.
Q4. Do You Have Minimum Order Requirements?
Can It Be Customized? What Is The Lead Time For Samples And Batches?
*Our Minimum Order Quantity Is 1 Piece, ODM Customization Is Available.
* 1~3 Days Delivery Of Existing Samples, 3~10 Days Delivery Of Customized Samples.
Q5: What If I Can't Use It?
*Regular Products Have Instructional Videos, We Can Also Support Online Video Call Guidance From Engineers.
Q6. What Are Your Terms Of Payment?
*We Accept Wire Transfer And Cash Payment, All Negotiable. Payment Method :Visa, Mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How Do You Guarantee The Quality?
* All Our Products Are Subjected To Professional Laboratory 100% Testing, As Well As Repeated Aging Tests.
* Obtained FCC, CE, ROHS And Other International Standard Certification.
* Provide 3 Years After-Sales Warranty Service. Free Spare Units For Replace In 3 Years.
Q8. How To Choose A BMS Suitable For Our Battery?
*Depending On The Voltage And Current That Matches Your Battery, You Can Consult Our Customer Service And We Will Provide It For You Equipped With The Most Suitable Battery Management System.
Q9. How Can I Contact You?
*We Have 7x24 Hours Online Service, Please Leave Us A Message Online.
*You Can Also Contact Us By Email, WhatsApp, WeChat, Etc(See Below). We Are So Glad To Work With You.
Noted:
We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .
We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.
Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
|
|
