1. The Intelligent Active Equalizer (EK-24S15EB) is a balance management system tailored for large capacity series battery packs.
2. Support 2S to 24S battery packs, Voltage collection and balancing function.
3. The balance current is maximum 15A, and the balance current is independent of the pressure difference, even if it is reduced to 1mV, the balance current can maintain 15A
4.  It supports the cascade mode please check the wiring above. If you need to use equalizer on your car, please operate according to the wiring diagram. We have taken the wiring diagram example of 24s cascading 36s, which theoretically supports infinite cascading......
5. It can be used in the battery PACK of small sightseeing car, scooter, shared car, high-power energy storage, base station backup power supply, solar power station and other products, and can also be used for battery balanced maintenance, repair and other occasions.

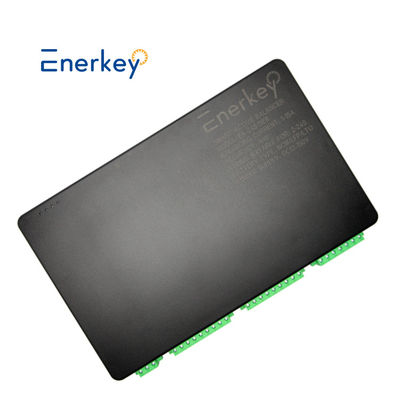

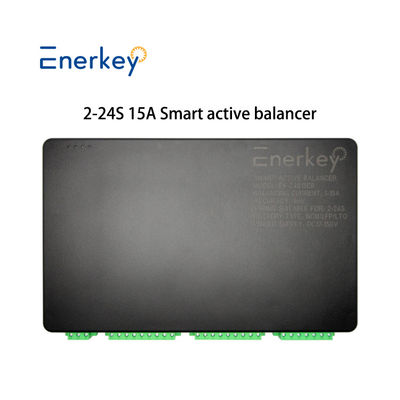

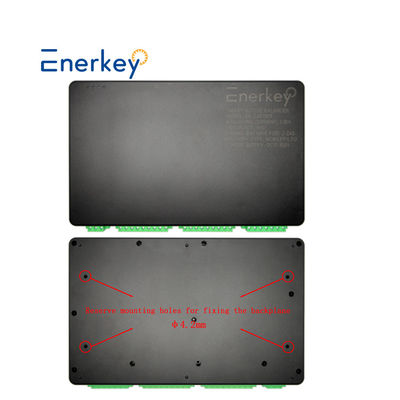

Our latest addition is the Enerkey 15A Smart Active Balancer Balancing Accuracy 1MV 12V 24V 36V 48V 72V Lifepo4 Battery Balance Board for battery REPAIR



Our customers' satisfaction is our priority, and thus, we have chosen to provide you with a product that is of the highest quality and performance. The Enerkey 15A Smart Active Balancer is specifically designed to balance the voltage and charge of each cell in your battery pack, ensuring a longer lifespan for your battery.



Technical Parameters

Product model	15A Smart Active Balancer for 2-24s (EK-24S15EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~15A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	High-power energy storage, base station backup power supply

LED Indicator Light

Green- Power on; Steady on: Power good.

Blue- Bluetooth on; Steady on: connection successful.Flash: connection break.

Yellow - Balancer on; Steady on: balance completion. Flash: Balancing.

Red - Device Fault; Steady on: batteries strings does not match the setting; Flash: The resistance of the balance line is too large.

Packing List



Part Name	Q'ty
15A Smart Active Balancer	1pcs
1m 16AWG Clip Wire	25pcs
3pin 7.62Pitch Thermial	1pcs
7pin 7.62Pitch Thermial	1pcs
9pin 7.62Pitch Thermial	1pcs
DC Adapter	1pcs



 Use Manual

APP Installation and Use

APP custom settings:1-15A, because of constant current and constant voltage technology, The balanced current is independent of the battery pressure difference.

The APP has Android and IOS version. Password: "123456"

1). IOS users download the APP : Search "Enerkey" in App Store to download

2). Android users download the APP:“http://www.enerkey.cn/” download

3). According to the battery type and battery string number, change the parameters

4). In the APP, you can view the total voltage, average voltage,naximum voltage difference of the battery pack,and the voltage and line resistance information of each battery.There is also an alarm function to detect the equilibriumtemperature, MOS temperature,and battery pack temperature in real time.

Wiring Diagram

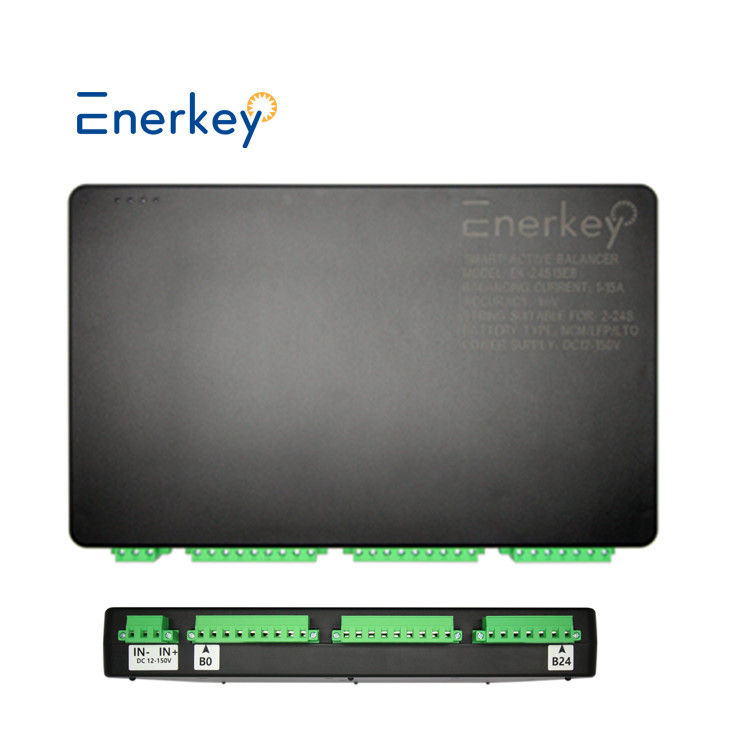

EK-24S15EB supports 2S-24S. The following figure shows how to install and connect cables to the 24S battery string:

EK-24S15EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 40S as an example to describe how to install and connect cables:



 FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
