Smart Active Balancer Equalizer 24s 12-72volt 10A max - NMC/ LFP - For Lithium Battery Packs



1. This is Lithium Battery Active balancer Equilizer. This balancer unit works on Lithium ion and lithium Phosphet both battery even with prismatic cells also. This balancer can work from 12 volt to 72 volt all range. For lithium ion its 2s to 24s and for lithium Phosphet it will be 4s to 24s Maximum.

2. balancing current is 10amps. Means if you battery is 20AH then it need max 2 hours to full balnace your battery. If its 40ah then max 4 hours. we also provide the connector set so that you can connect the bms wire directly to the BMS Module. We provide APP download file for this balancer and full tutorial of how to use this balancer. This balancer can also detect the error or problem in your battery and inform you through app.





Features:

• Super-capacitors as medium to achieve active energy transfer equalization
• Continuous 15A equalization current
• Equipped with Bluetooth and phone APP software
• Fast and simultaneously balancing

Technical Parameters

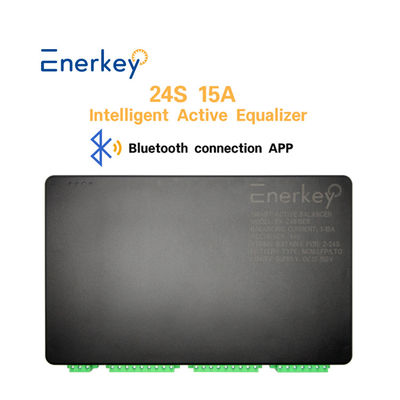

Product model	15A Smart Active Balancer for 2-24s (EK-24S15EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~15A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Industrial energy storage, Commercial energy storage

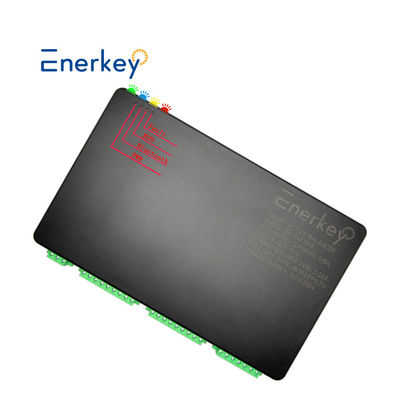

LED Indicator Light

Green- Power on; Steady on: Power good.

Blue- Bluetooth on; Steady on: connection successful.Flash: connection break.

Yellow - Balancer on; Steady on: balance completion. Flash: Balancing.

Red - Device Fault; Steady on: batteries strings does not match the setting; Flash: The resistance of the balance line is too large.

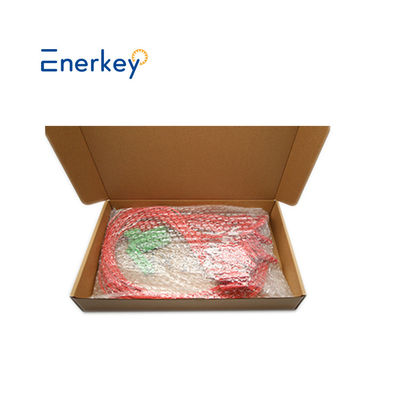

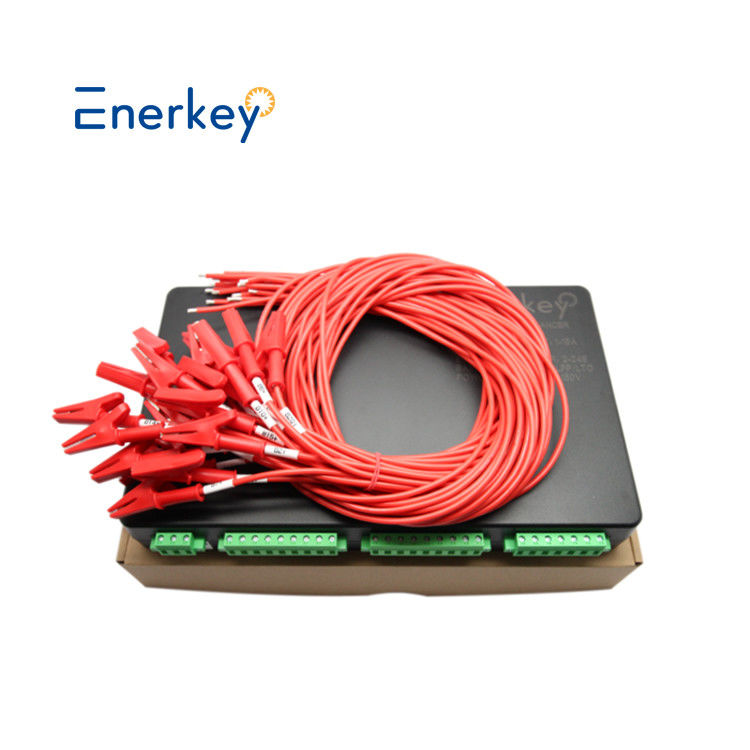

Packing List



Part Name	Q'ty
15A Smart Active Balancer	1pcs
1m 16AWG Clip Wire	25pcs
3pin 7.62Pitch Thermial	1pcs
7pin 7.62Pitch Thermial	1pcs
9pin 7.62Pitch Thermial	1pcs
DC Adapter	1pcs



 Use Manual

APP Installation and Use

APP custom settings:1-15A, because of constant current and constant voltage technology, The balanced current is independent of the battery pressure difference.

The APP has Android and IOS version. Password: "123456"

1). IOS users download the APP : Search "Enerkey" in App Store to download

2). Android users download the APP:“http://www.enerkey.cn/” download

3). According to the battery type and battery string number, change the parameters

4). In the APP, you can view the total voltage, average voltage,naximum voltage difference of the battery pack,and the voltage and line resistance information of each battery.There is also an alarm function to detect the equilibriumtemperature, MOS temperature,and battery pack temperature in real time.

Wiring Diagram
EK-24S15EB supports 2S-24S. The following figure shows how to install and connect cables to the 24S battery string:

EK-24S15EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 40S as an example to describe how to install and connect cables:
