Enerkey new product 24s 15A smart active balancer equalisation management system for high-capacity series battery packs



This is a tailor-made equalization management system for high-capacity series-connected battery packs. It can be used in the battery pack of small sightseeing cars, mobility scooters, shared cars, high-power energy storage, base station backup power, solar power stations, etc., and can also be used for battery equalization repair and restoration.



This equalizer is suitable for 2~24 series NCM/ LFP/ LTO battery packs with voltage acquisition and equalization functions. The equalizer works with a continuous 15A equalization current to achieve energy transfer, and the equalization current does not depend on the voltage difference of the series-connected cells in the battery pack. The voltage acquisition range is 1.5V~4.5V, and the precision is 1mV.

• An Active Balancer will monitor and transfer current between cells within a bank. Cells with a higher SOC, to cells with a lower SOC ensuring they are better balanced and drastically reducing the chance of one particular cell in the bank being over charged/discharged.
• It can be used in small sightseeing vehicles, mobility scooters, shared cars, high-power energy storage, base station backup power supply, solar power station, etc battery PACK, can also be used for battery balance maintenance, repair and other occasions.



Technical Parameters

Product model	15A Smart Active Balancer for 2-24s (EK-24S15EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~15A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	High-power energy storage, base station backup power supply,Solar power station

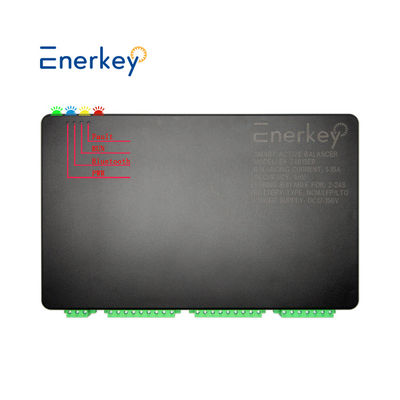

LED Indicator Light

Green- Power on; Steady on: Power good.

Blue- Bluetooth on; Steady on: connection successful.Flash: connection break.

Yellow - Balancer on; Steady on: balance completion. Flash: Balancing.

Red - Device Fault; Steady on: batteries strings does not match the setting; Flash: The resistance of the balance line is too large.

Packing List



Part Name	Q'ty

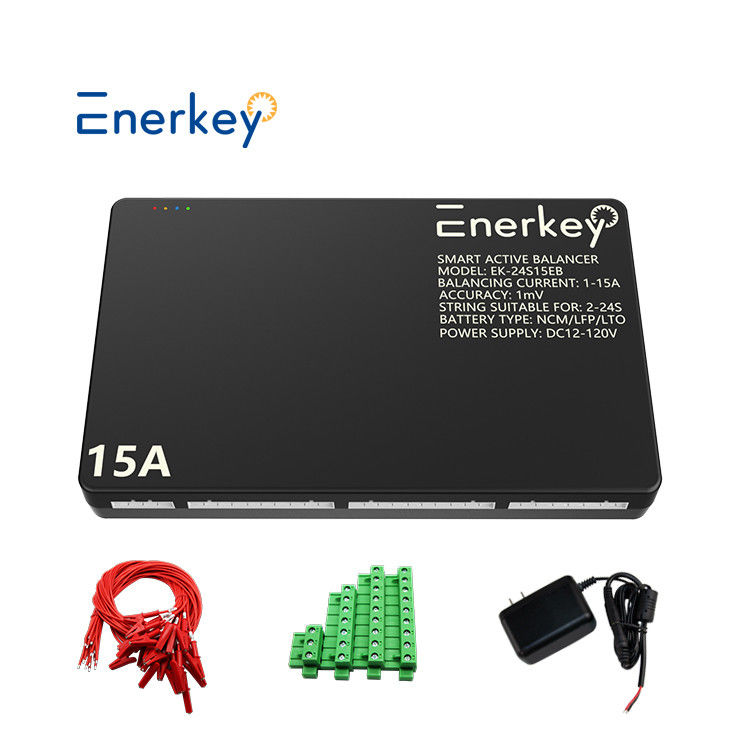

15A Smart Active Balancer	1pcs
1m 16AWG Clip Wire	25pcs
3pin 7.62Pitch Thermial	1pcs
7pin 7.62Pitch Thermial	1pcs
9pin 7.62Pitch Thermial	1pcs
DC Adapter	1pcs



 Use Manual

APP Installation and Use

APP custom settings:1-15A, because of constant current and constant voltage technology, The balanced current is independent of the battery pressure difference.

The APP has Android and IOS version. Password: "123456"

1). IOS users download the APP : Search "Enerkey" in App Store to download

2). Android users download the APP:“http://www.enerkey.cn/” download

3). According to the battery type and battery string number, change the parameters

4). In the APP, you can view the total voltage, average voltage,naximum voltage difference of the battery pack,and the voltage and line resistance information of each battery.There is also an alarm function to detect the equilibriumtemperature, MOS temperature,and battery pack temperature in real time.

Wiring Diagram
EK-24S15EB supports 2S-24S. The following figure shows how to install and connect cables to the 24S battery string:

EK-24S15EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 40S as an example to describe how to install and connect cables:
