★ Real-time, active, energy transfer equalization, after the balance, the inter-cell pressure difference ≤ 3mV

★ Support 2S to 24S battery packs.

★ Single cell voltage collection range: 1.5V ~4. 5V, accuracy: ± 1mV.

★ Support all pool types such as : Li-ion, Lipo, Lifepo4, LTO, super capacitors and other batteries.

★ The balance current is set independently in the range of 1A-10A, independent of the cell voltage difference.

★ Support balanced cascading to apply to more than 24S of battery packs, in theory, can be cascaded indefinitely; for exampel , can 28S , 32S , 36S , 40S ...

★ Support Bluetooth communication, equipped with mobile APP, real-time view of battery status.

★ Equilibrium line resistance detection, abnormal contact failure is found in advance.

★ Power supply range: 40V~ 100V.

★ Low voltage shutdown function to prevent battery damage.

★ Super self-protection function, any equalization of the equalization line will not burn the equalizer.



• The equalizing current on each equalizing line can be measured by a DC clamp meter.
• We have a nominal 1-10A equalizing current. As long as the voltage difference is reached, this equalizing current can be measured.
• When the voltage difference is 1V, more than 10A of balanced current will be generated, not more than 10A.



Technical Parameters

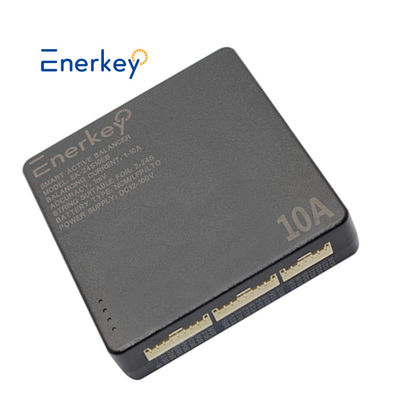

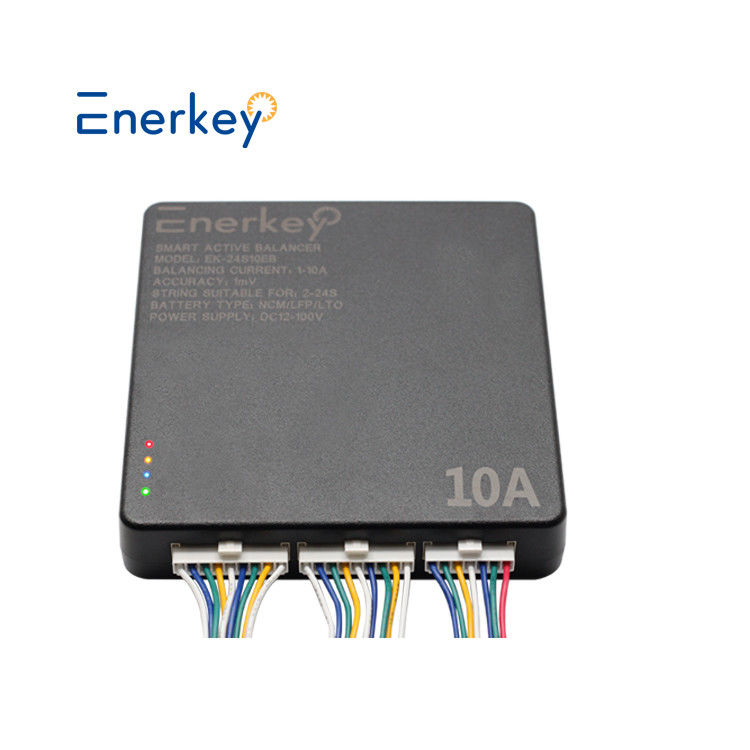

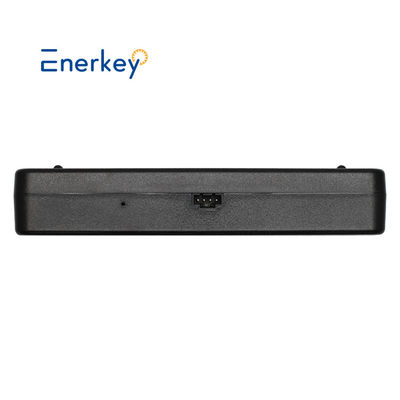

Product model	10A Smart Active Balancer for 2-24s (EK-24S10EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~10A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Small sightseeing car, scooter, shared car

Packing List

 Use Manual

APP Installation and Use

APP custom settings:1-10A, because of constant current and constant voltage technology, The balanced current is independent of the battery pressure difference.

The APP has Android and IOS version. Password: "123456"

1). IOS users download the APP : Search "Enerkey" in App Store to download

2). Android users download the APP:“http://www.enerkey.cn/” download

3). According to your battery type and battery string number, change the parameters in APP

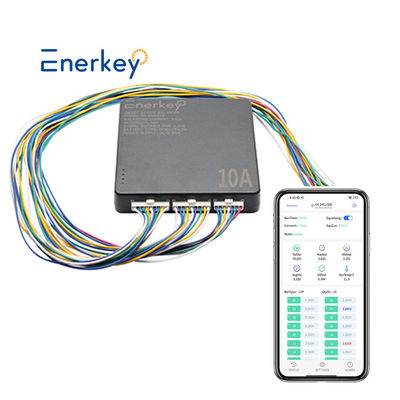

4). In the APP, you can view the total voltage, average voltage,naximum voltage difference of the battery pack,and the voltage and line resistance information of each battery.There is also an alarm function to detect the equilibriumtemperature, MOS temperature,and battery pack temperature in real time.



Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
