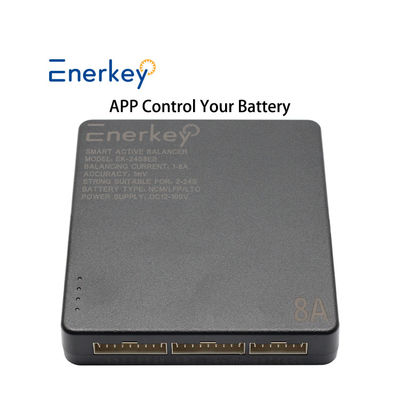

8A Smart Active Balancer Balancing Accuracy 1MV 12V 24V 36V 48V 72V Lifepo4 Battery Balance Board Electric Bicycle



This Active Balancer will charge the cell with lower voltage from higher voltage groups . the balance current can reach 1A to 8A.

it using high-frequency transformer inverter and equipotential isolation coupling energy method, the originally series connected battery packs are connected in parallel through equipotential coupling to achieve energy balance distribution for each series of batteries.

Based on parallel connection, the uneven high and low voltages of each series are achieved. The actual balance work is controlled by the main control MCU, and the balance effect can reach within 1Mv





Technical Parameters

Product model	8A Smart Active Balancer for 2-24s (EK-24S8EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V

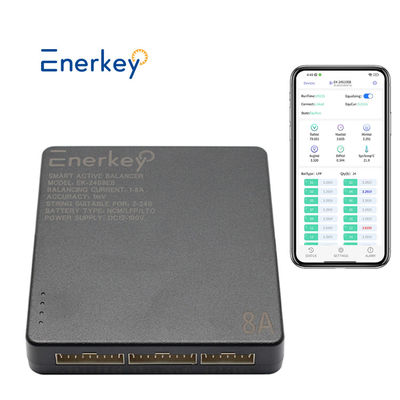

Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~8A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	High-power energy storage, base station backup power supply

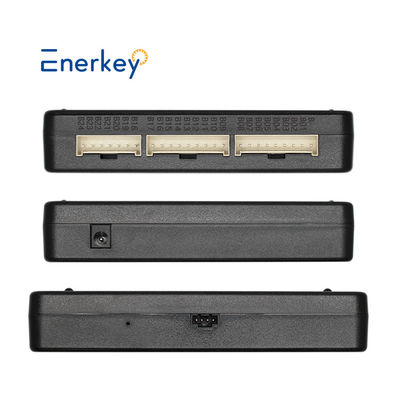

Indicator Light Definition

Green – Power supply status indicator light

Always on: power supply is good



Blue – Bluetooth status indicator light

Always on: connected successfully

Flash: disconnect



Yellow – Work status indicator light

Always on: equalization is finished

Flash: equalizer at work



Red – Malfunction status indicator light

Always on: The number of battery cells does not match the setting

Flash: The resistance of equalizer line is excessive

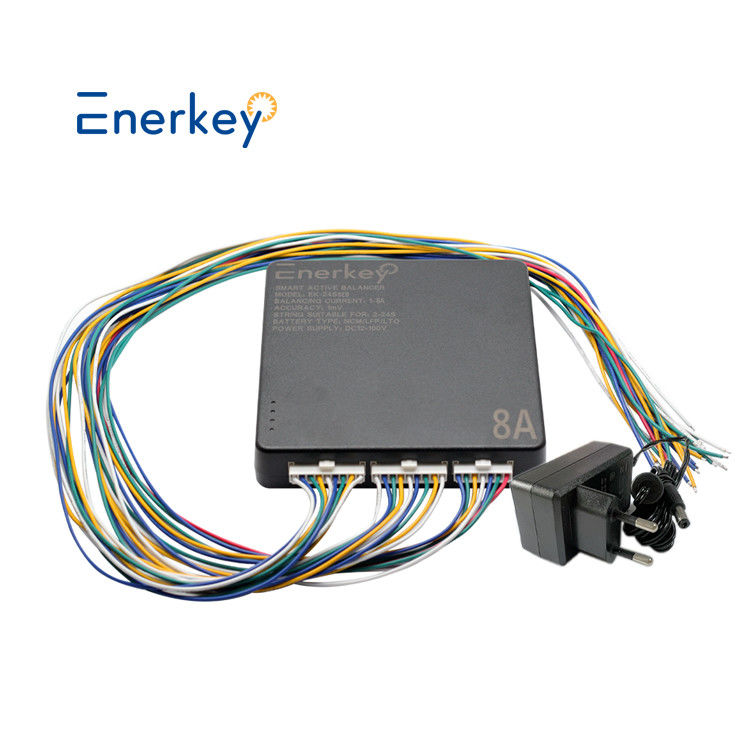

Packing List

 Use Manual

Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
