The Intelligent Active Balancer is a balance management system tailored for large capacity series battery packs.



This equalizer uses supercapacitors as the medium to achieve active energy transfer equalization.

This equalizer is suitable for battery packs of 2-24 strings and has voltage acquisition and equalization functions. When the equalizer is working, it transfers energy with a continuous 15A equalizing current,

Which does not depend on the voltage difference of the series connected battery cells in the battery pack. The voltage collection range is 1.5V~4.5V, with an accuracy of 1mV.

Suitable for mainstream ternary lithium, lithium iron phosphate, and lithium titanate batteries on the market.



Technical Parameters

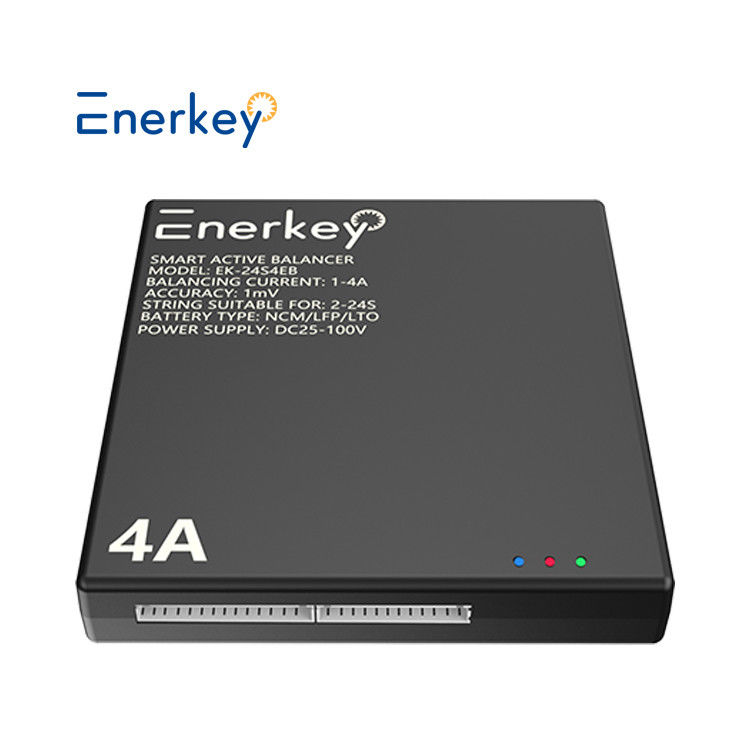

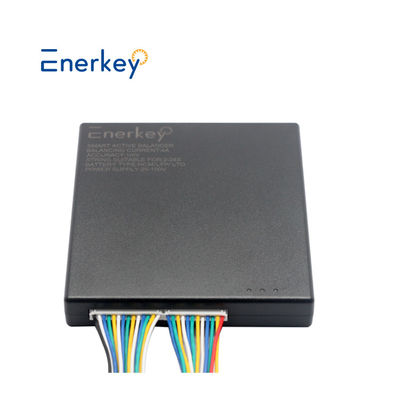

Product model	4A Smart Active Balancer for 2-24s (EK-24S4EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~4A
Whether an external power supply is required	When the total battery system voltage is below 25V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

When used for battery packs with less than 24 string cells in series, the empty pin is suspended.

When used for battery packs with a total voltage of less than 25V, an external DC power supply is required

EK-24S4EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
