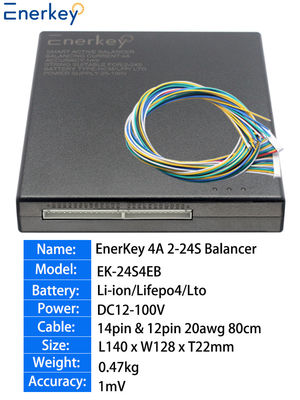

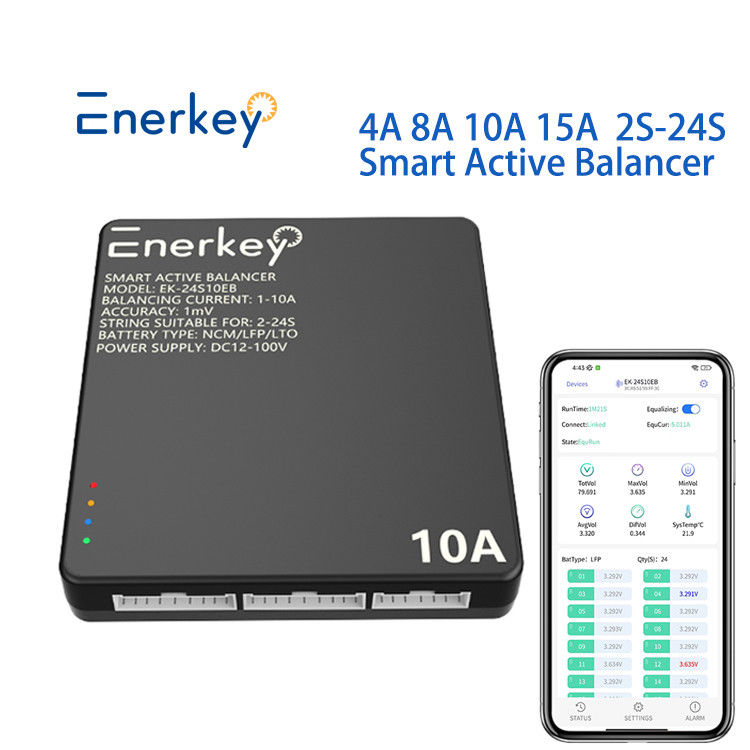

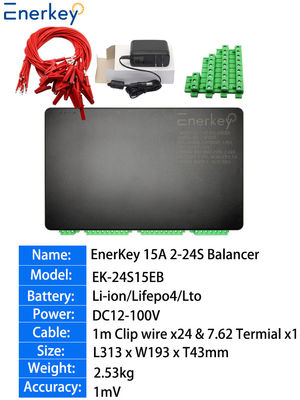

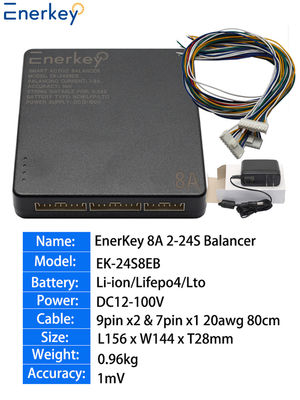

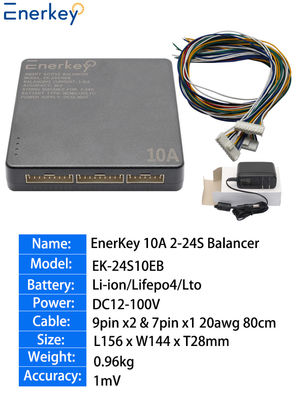

15A SmartEnerKey New 4TH 4A 8A 10A 15A Smart Active Balancer 3S 4S 5S 6S 8S 14S 16S 20S 21S 22S 24S Lifepo4 / Li-ion/ LTO Battery Equalization For Battery repair and Home energy storage system.



1. The EnerKey 4A 8A 10A 15A Smart Active Balancer is specifically designed to balance the voltage and charge of each cell in your battery pack, ensuring a longer lifespan for your battery.
2. The balancing accuracy of 1MV makes this product stand out amongst others in the market. The board supports a range of voltages from 12V to 120V, you can be assured of the safety and efficiency of your battery.
3. We use only high-quality materials, and our product is manufactured to comply with industry standards and CE certification. The EnerKey 4A 8A 10A 15A Smart Active Balancer is durable and reliable, making it the perfect choice for cyclists who value quality and performance.



Our product offers significant benefits, which include
-Keeping your battery cells balanced
-Extending the overall lifespan of your battery
-Increasing the efficiency of your battery pack
-Preventing any safety hazards that could arise from using an unbalanced battery



Technical Parameters

Product model	4A/8A/10A/15A Smart Active Balancer for 2-24s
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~15A
Whether an external power supply is required	Battery-operated(Accuracy:3mV)4S ~ 24S DC power supply(Accuracy:1mV)2S ~ 24S
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Small appliances, electric toys, electric balance car/bicycle, outdoor power supply,Home energy storage





Use Manual

Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV.

When less than 24 battery strings are connected in series, empty pins are suspended. The following uses 16S as an example.

It supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:
