Batteries made of multiple cells connected in series are often used as a power source for common electronic devices. In multicell battery chains, small differences between the cells (due to production tolerances or operating conditions) tend to be magnified with each charge or discharge cycle.

In these situations, weaker cells are overstressed during charging, causing them to become even weaker, until they eventually fail and cause a premature failure of the whole battery. Cell balancing is a way of compensating for these weaker cells by equalizing the charge on all the cells in the chain, thus extending the battery life.
The life of a rechargeable battery can be extended through the use of an intelligent charging system. The charging system must incorporate the proper charging method for the appropriate battery type (according to the battery chemistry) and overcharge protection to prevent battery damage.

These circuits can be implemented in the charger or in the battery.



Technical Parameters

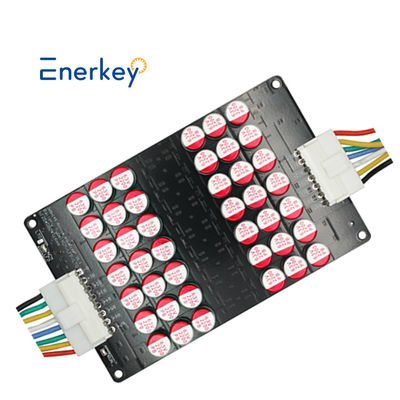

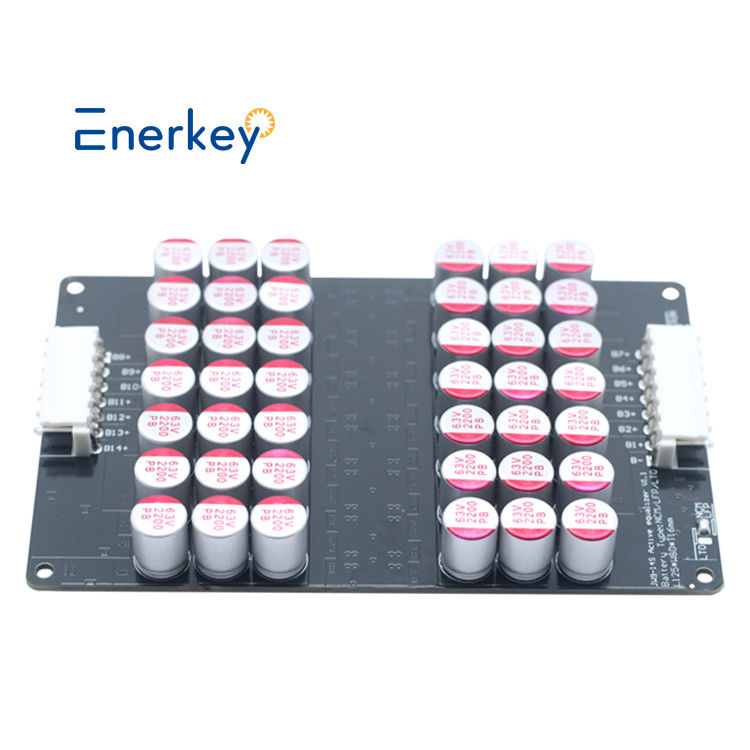

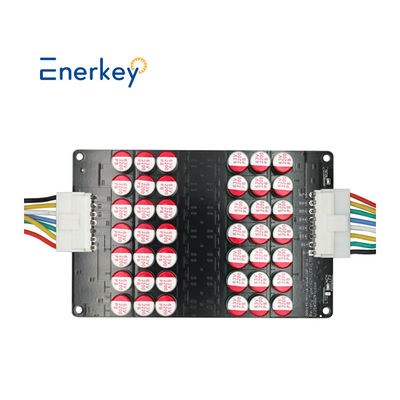

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product model	EK-C10S5A	EK-C12S5A	EK-C14S5A
Product strings	10S	12S	14S
Suitable strings	8-10S	9-12S	9-14S
Product Size(mm)	L114*W70*T16	L137*W70*T16	L125*W80*T16
Weight with box	0.24kg	0.25kg	0.28kg
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Voltage equalization accuracy	5mV (typical value)
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Under voltage protection Start balancing voltage	NCM/LFP version: 2.835V
	LTO version: 1.89V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃





Packing List

 Wire connect

A single EK-C14S5A supports the use of 9 and 10 and 11 and 12 and 13 and 14 string battery packs. The wiring method is as follows:



EK-C14S5A supports cascading battery packs. Fox exmple, 2pcs of 14s cascade to 27s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.

The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
