As the whole world has started moving toward “Green Technologies” with the aim of reducing global warming, almost every country is insisting the development and use of electric powered vehicles. And when electric vehicles are talked about, the backbone of such a vehicle will be its battery.

This states the importance of research and development in the field of battery design and management. Battery management system (BMS) ensures safety of the battery pack by continuous monitoring, controlling and regulating the energy storage and transfer in electric vehicles.

A BMS will collect information from sensors in the battery, controlling the charger to ensure proper charge of the battery, managing cell balance, safety control to avoid overcharge or over discharge or other major anomalies, reporting battery state, thermal conditions of the battery,

communication with the vehicle and data transfer to a computer. Considering the monitor and control of the battery charging and discharging, BMS charges a cell based on its state of the charge and discharges cell based on demand and charge available in the cell. Similarly,

battery life degradation can be reduced by monitoring the cell voltages of individual battery cells and keeping them as constant. BMS has a dedicated cell balancing unit. The temperature is also monitored and controlled by the BMS.

n any multi-cell battery chain, there are no two cells that are identical, meaning that there are always at least slight differences in the properties such as self-discharge, capacity, state of charge, impedance and temperature characteristics.

Also, when a multi-rank pack protection integrated circuit (IC) is used, its unequal draining may cause imbalance in the cells which may lead to degradation of battery life.



Technical Parameters

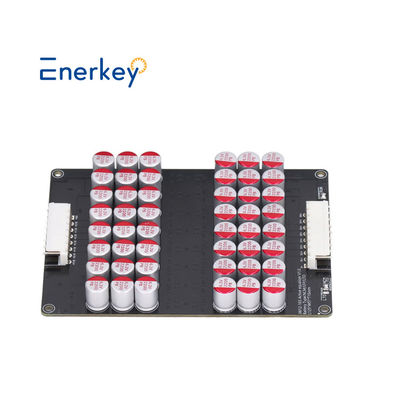

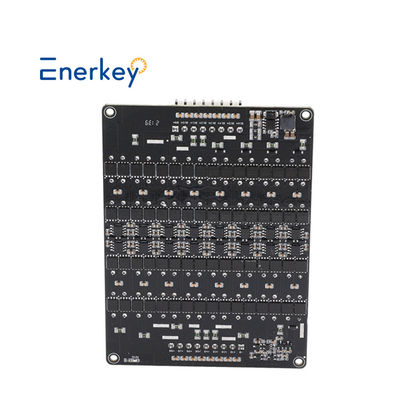

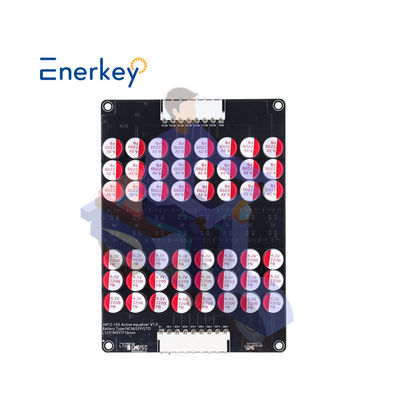

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product model	EK-C16S5A	EK-C17S5A	EK-C21S5A
Product strings	16S	17S	21S
Suitable strings	12-16S	13-17S	17-21S
Product Size(mm)	L125*W91*T16	L115*W102.5*T16	L145*W130*T18
Weight with box	0.32kg	0.33kg	0.39kg
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Voltage equalization accuracy	5mV (typical value)
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Under voltage protection Start balancing voltage	NCM/LFP version: 2.835V
	LTO version: 1.89V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃





Packing List

 Wire connect

A single EK-C16S5A supports the use of 12 and 13 and 14 and 15 and 16 string battery packs. The wiring method is as follows:



EK-C16S5A supports cascading battery packs. Fox exmple, 2pcs of 16s cascade to 31s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.

The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
