| Brand Name: | Enerkey |
| Model Number: | EK-C17S5A |
| MOQ: | 50pieces |
| Price: | $23.79-$25.59 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

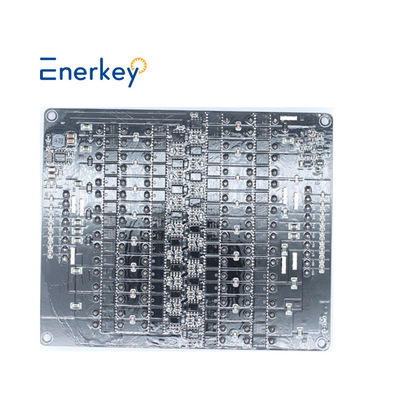

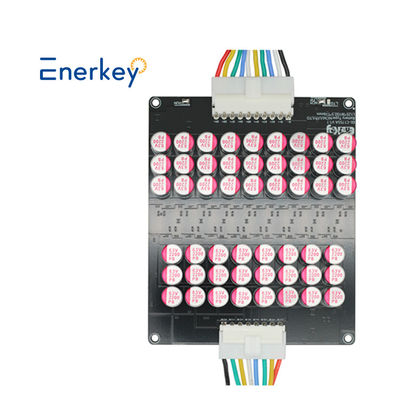

Battery Cell Energy Transfer Balancer Board 13s-17s 5A Capacitive Active Equalizer Lfp Li-Ion Lto BMS
Application
1) power battery: electric car,/bus/scooter/truck/golf cart /boat and so on
2) storage battery: storage power station,wind power,solar power and so on
3) Communication power: communication base stations, substations, etc.
Installation method and usage
1) Fix one balancing module next to each cell, each cell corresponds to a balancing module.
2) Conect the first balancing module to the corresponding cell, attention that the positive line and negative line can not be reversed.
3) Conect the second balancing module to the first balancing module by the two balancing lines.
4) Conect the second balancing module to the corresponding cell, attention to the positive line and negative line can not be reversed.
5) Conect the third balancing module to the second balancing module by the two balancing lines.
6) Conect the third balancing module to the corresponding cell, attention to the positive line and negative line can not be reversed.
7) And so on, one by one, finish all wires conections.
|
EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
|
|||
| Product model | EK-C16S5A | EK-C17S5A | EK-C21S5A |
|
Product strings
|
16S
|
17S
|
21S
|
|
Suitable strings
|
12-16S
|
13-17S
|
17-21S
|
|
Product Size(mm)
|
L125*W91*T16
|
L115*W102.5*T16
|
L145*W130*T18
|
|
Weight with box
|
0.32kg
|
0.33kg
|
0.39kg
|
|
Battery Type
|
NCM/LFP/LTO
|
NCM/LFP/LTO
|
NCM/LFP/LTO |
|
Suitable capacity
|
30ah-300ah
|
||
| Voltage equalization accuracy | 5mV (typical value) | ||
|
Balanced Cascading
|
Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
|
||
|
Single cell voltage collection range
|
NCM/LFP version : 2.7V-4.2V
|
||
|
LTO version : 1.8-4.2V
|
|||
|
Undervoltage protects sleep voltage
|
NCM/LFP version＜2.7V
|
||
|
LTO version＜1.8V
|
|||
| Under voltage protection Start balancing voltage |
NCM/LFP version: 2.835V | ||
| LTO version: 1.89V | |||
|
Equilibrium method
|
Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time.
Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing. |
||
|
Equilibrium current
|
0.1V Differential pressure 1A Balanced current,
|
||
|
the differential pressure is proportional to the balanced current,
|
|||
|
the maximum allowable operating current is 5.5A
|
|||
|
External power supply
|
No need for an external power supply,
|
||
|
relying on the internal energy transfer of the battery to achieve sdjacent equalization.
|
|||
| Quiescent operating current | 7mA, the total string draws power | ||
|
Sleep standby current
|
0.1mA(typical value)
|
||
|
Operating Temperature
|
-20℃ ~ +60℃
|
||
NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.
The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
