What Is Balance Current?
Balance current is the measure of how fast an active or passive balancer can balance. It is the current that is used by a battery management system (BMS) to redistribute charge among the cells in a battery pack, as part of the active balancing process.

The balance current is typically a small fraction of the overall charging or discharging current of the battery pack, and is used to adjust the state of charge of cells that are out of balance with the other cells in the pack.

The balance current is determined by the BMS or external balancer based on the voltage and state of charge of each individual cell. The current is used to adjust the cell voltages in real-time to ensure that all the cells in the pack are at the same state of charge.

Balance current can be positive or negative depending on whether the current is flowing into or out of the cell in question.In summary, balance current is the current used to ensure that all the cells in a lithium-ion battery pack have the same state of charge.



Technical Parameters

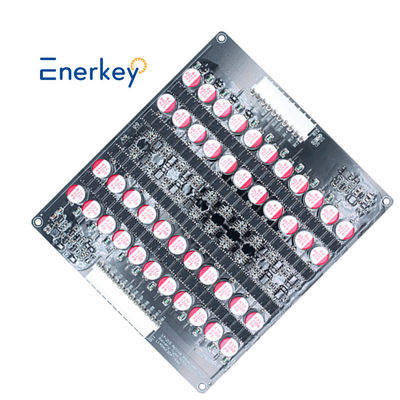

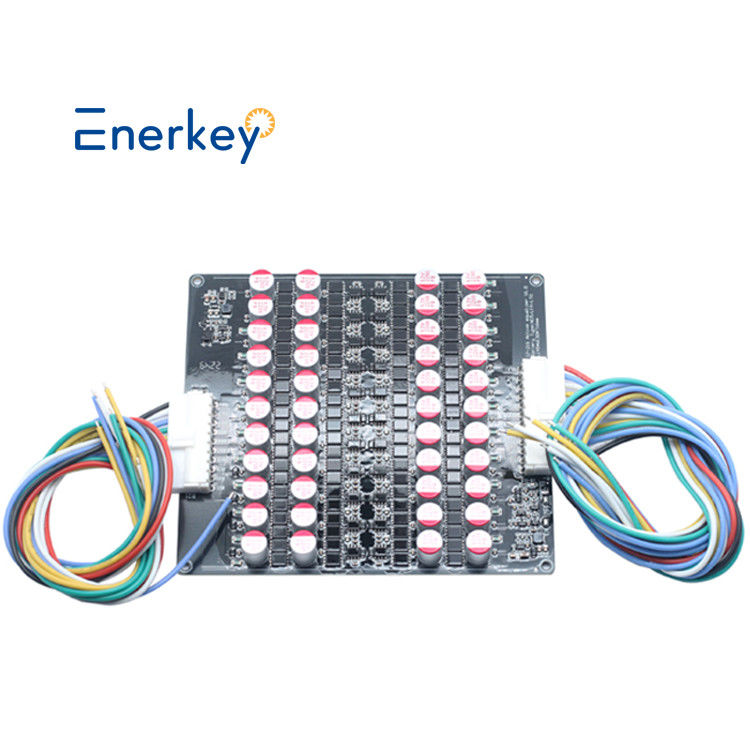

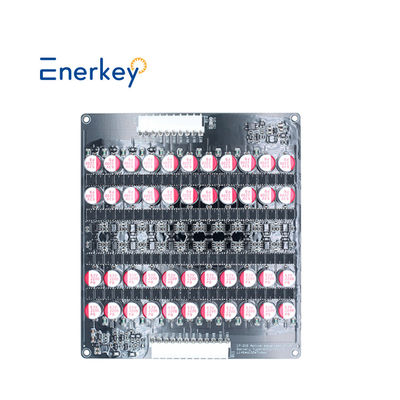

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product model	EK-C16S5A	EK-C17S5A	EK-C21S5A
Product strings	16S	17S	21S
Suitable strings	12-16S	13-17S	17-21S
Product Size(mm)	L125*W91*T16	L115*W102.5*T16	L145*W130*T18
Weight with box	0.32kg	0.33kg	0.39kg
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Voltage equalization accuracy	5mV (typical value)
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Under voltage protection Start balancing voltage	NCM/LFP version: 2.835V
	LTO version: 1.89V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃





Packing List

 Wire connect

A single EK-C21S5A supports the use of 17 and 18 and 19 and 20 and 21 string battery packs. The wiring method is as follows:

EK-C21S5A supports cascading battery packs. Fox exmple, 2pcs of 21s cascade to 41s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.

The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
