| Brand Name: | Enerkey |
| Model Number: | EK-L16S1A |
| MOQ: | 10pieces |
| Price: | $7.67-$8.49 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Enerkey 1A Active Equalizer Battery Balancer Lifepo4 LTO Lipo Li-Ion 16s Battery Pack Voltage Balance
Energy Transfer
Active cell balancing BMS using energy transfer involves transferring energy between cells through intermediate devices like transformers, inductors, or supercapacitors. Unlike passive balancing, active balancing minimizes energy losses and maximizes efficiency.
Inductive Balancing
Inductive balancing utilizes inductors to transfer energy between cells. When the voltage of a particular cell becomes significantly higher than others, the inductor shunts the excess energy, leveling the cell voltages. Subsequently, during the charging process,
the stored energy in the inductor is released to balance low-voltage cells. Inductive balancing offers higher efficiency than passive methods and is well-suited for medium-sized battery packs.
|
EnerKey BMS Active Balancer 1A 2S 3S 4S 5S 6S 7S 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S 18S 19S 20S 21S 22S 23S 24S NMC LFP LI-ION lifepo4 Balancer Inductive Balancer
|
||||
| Product model | EK-L14S1A | EK-L15S1A | EK-L16S1A | EK-L17S1A |
|
Battery strings
|
14S
|
15S |
16S
|
17S
|
|
Product Size(mm)
|
L93*W93*T8
|
L93*W93*T8 |
L105*W93*T8mm
|
L107*W93*T8
|
|
Weight with box
|
0.08kg
|
0.084kg |
0.091kg
|
0.095kg
|
|
Battery Type
|
NCM/LFP
|
NCM/LFP |
NCM/LFP
|
NCM/LFP |
|
Single Cell voltage working range
|
3.0v-4.5v
|
|||
| Balanced Cascading | Support (Don't advice) | |||
|
Voltage balancing accuracy
|
Adjacent voltage difference 30mV (typical value)
|
|||
|
Undervoltage protects sleep voltage
|
Enter sleep state when the adjacent voltage difference is less than 30mV
|
|||
|
Equilibrium method
|
Detect that the voltage difference between adjacent batteries is greater than 100mV and trigger equalization;
Stop working when adjacent voltage difference is less than 30mV |
|||
|
Equilibrium current
|
0.05V voltage difference balancing current 0.5A
0.1V voltage difference reaches the maximum balancing current of 1A |
|||
|
External power supply
|
No external power supply required;
Relying on internal energy transfer of the battery to achieve adjacent equilibrium |
|||
| Quiescent operating current | 10uA | |||
|
Operating Temperature
|
-20℃ ~ +60℃
|
|||

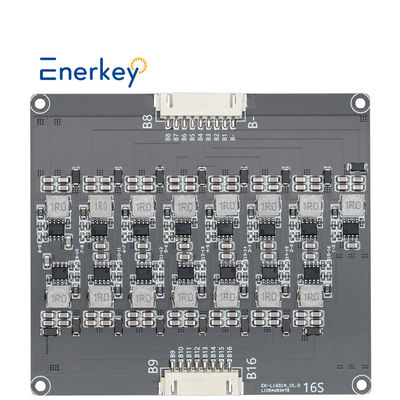

Wiring definition
B-,the total negative pole of the battery pack(the negative pole of the first battery).
B1, the positive electrode of the first battery.
B2, the positive electrode of the second battery.
B3..... and so on.

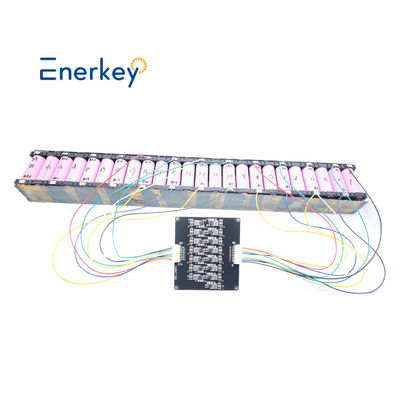

Direction for use
①The first, terminal wire is soldered to the battery pack.Next,Connect the terminal wire to the PCBA.
(2)13 or more string plugs need to be inserted obliquely,first touch the B-pins and insert them obliquely upwards,otherwise it may cause the board to burn out.
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
