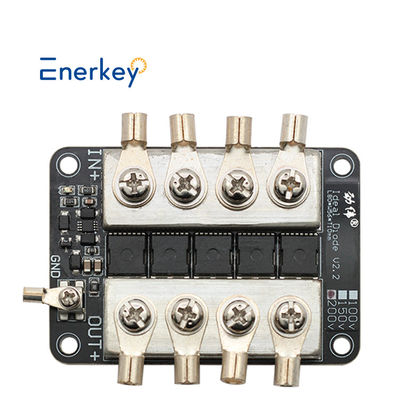

100V 150V 200V /150A 260A 300A Ideal Diode Module For Photovoltaic Solar Base Station Industrial Control Electric Car
Principles Behind the Ideal Diode Model
Working principles of an ideal diode are based on the basic behavior of P-N junctions and semiconductor materials.
When a positive voltage is applied to a P-N junction (forward bias), the majority charge carriers in the N-type and P-type semiconductors are pushed towards the junction, reducing the depletion region and allowing current to flow.
Contrarily, when a negative voltage is applied (reverse bias), the majority charge carriers are pulled away from the junction, increasing the depletion region and preventing any current flow.
Key Characteristics of an Ideal Diode
Given all the theory, it's critical to remember these traits of an ideal diode:
|
Enerkey Ideal Diode Module 100V 150V 200V /150A 260A 300A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
|
|||
| Product model |
EK-iD100V150A EK-iD150V150A EK-iD200V150A |
EK-iD100V260A EK-iD150V260A EK-iD200V260A |
EK-iD100V300A EK-iD150V300A EK-iD200V300A |
|
Working voltage range
|
30-100V
30-150V
30-200V
|
30-100V
30-150V
30-200V
|
30-100V
30-150V
30-200V
|
|
Product Size(mm)
|
L80*W56*T15
|
L80*W56*T15 |
L80*W56*T15 |
|
Weight with box
|
0.1kg
0.11kg
0.12kg
|
0.1kg
0.11kg
0.12kg
|
0.1kg
0.11kg
0.12kg
|
| MOS quantity | 5 | 8 | 10 |
|
Battery Type
|
NCM/LFP/LTO
|
NCM/LFP/LTO |
NCM/LFP/LTO
|
|
Continuous current
|
150A
|
260A | 300A |
| Peak starting current | 150A | 260A | 300A |
|
Quiescent operating current
|
<0.5mA
|
||
|
Copper foil thickness
|
2.0 oz
|
||
|
PCB material |
Aluminum plate
|
||
| On-going internal resistance | NA | ||
| Working principle | The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast. | ||
|
Application
|
1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required |
||
| Accessories | Terminal lug*9; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3 |
||
|
Operating Temperature
|
-40℃ ~ +60℃
|
||
Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;
2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.
The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
| Brand Name: | Enerkey |
| Model Number: | EK-iD100V150V200V/150A260A300A |
| MOQ: | 10pieces |
| Price: | $33.5-$89.8 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
100V 150V 200V /150A 260A 300A Ideal Diode Module For Photovoltaic Solar Base Station Industrial Control Electric Car
Principles Behind the Ideal Diode Model
Working principles of an ideal diode are based on the basic behavior of P-N junctions and semiconductor materials.
When a positive voltage is applied to a P-N junction (forward bias), the majority charge carriers in the N-type and P-type semiconductors are pushed towards the junction, reducing the depletion region and allowing current to flow.
Contrarily, when a negative voltage is applied (reverse bias), the majority charge carriers are pulled away from the junction, increasing the depletion region and preventing any current flow.
Key Characteristics of an Ideal Diode
Given all the theory, it's critical to remember these traits of an ideal diode:
|
Enerkey Ideal Diode Module 100V 150V 200V /150A 260A 300A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
|
|||
| Product model |
EK-iD100V150A EK-iD150V150A EK-iD200V150A |
EK-iD100V260A EK-iD150V260A EK-iD200V260A |
EK-iD100V300A EK-iD150V300A EK-iD200V300A |
|
Working voltage range
|
30-100V
30-150V
30-200V
|
30-100V
30-150V
30-200V
|
30-100V
30-150V
30-200V
|
|
Product Size(mm)
|
L80*W56*T15
|
L80*W56*T15 |
L80*W56*T15 |
|
Weight with box
|
0.1kg
0.11kg
0.12kg
|
0.1kg
0.11kg
0.12kg
|
0.1kg
0.11kg
0.12kg
|
| MOS quantity | 5 | 8 | 10 |
|
Battery Type
|
NCM/LFP/LTO
|
NCM/LFP/LTO |
NCM/LFP/LTO
|
|
Continuous current
|
150A
|
260A | 300A |
| Peak starting current | 150A | 260A | 300A |
|
Quiescent operating current
|
<0.5mA
|
||
|
Copper foil thickness
|
2.0 oz
|
||
|
PCB material |
Aluminum plate
|
||
| On-going internal resistance | NA | ||
| Working principle | The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast. | ||
|
Application
|
1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required |
||
| Accessories | Terminal lug*9; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3 |
||
|
Operating Temperature
|
-40℃ ~ +60℃
|
||
Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;
2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.
The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
