| Brand Name: | Enerkey |
| Model Number: | EK-iD100V/200V 300A |
| MOQ: | 10pieces |
| Price: | $56-$72 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

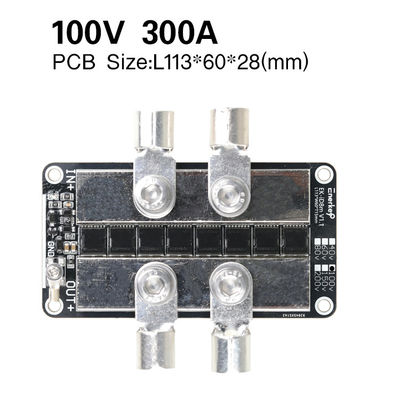

Solar Charging Anti Backflow Anti Reverse Irrigation Protection Board 100V 200V 300A Diode Module of Power storage
Practical Examples of Ideal Diodes
Delving into the practical examples of ideal diodes bridges the gap between theory and application. One can understand the nuances of electronic devices that we encounter in daily life by exploring how the principles of ideal diodes are put into practice.
Ideal Diode Examples in Everyday Electronics
From the television remote to the mobile phone in your pocket, examples of ideal diode applications can be seen marvellously in everyday electronics. Let's take a more in-depth look at some of these applications.
Television Sets: The cathode ray tube television sets have electron guns, which work on the principles of diodes. They emit electrons which are then modulated, creating the picture on the screen.
Microwave Ovens: The Microwave oven is an everyday appliance that employs a special type of diode known as the magnetron. This diode emits microwaves that heat up your food.
|

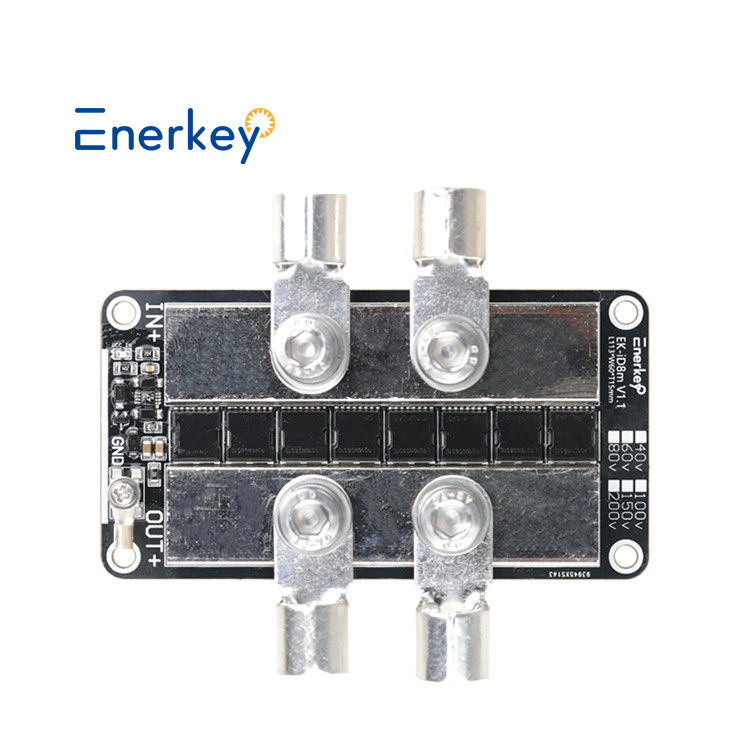

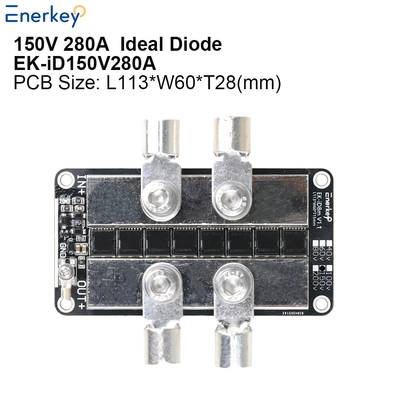

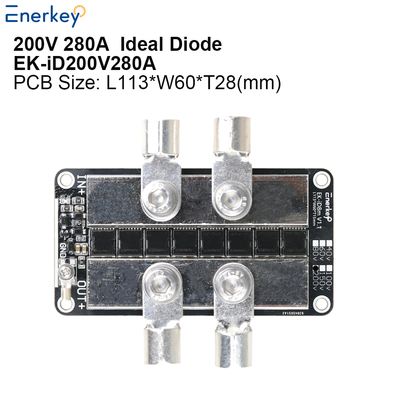

Enerkey Ideal Diode Module 40V 80V 100V 200V /280A 300A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
|
|||
| Product model |
EK-iD40V280A EK-iD80V280A |
EK-iD80V200A |
EK-iD100V300A EK-iD200V300A |
|
Working voltage range
|
30V280A: 9-30V
40V280A: 9-40V
80V280A: 9-80V
|
9-80V
|
100V300A: 9-100V
200V300A: 9-200V
|
|
Product Size(mm)
|
L105*W60*T28
|
L105*W60*T28 |
L105*W60*T28 |
|
Weight with box
|
0.5kg
|
0.51kg
|
0.55kg
|
| MOS quantity | 8 | 6 | 10 |
|
Battery Type
|
NCM/LFP/LTO
|
NCM/LFP/LTO |
NCM/LFP/LTO
|
|
Continuous current
|
280A
|
200A | 300A |
| Peak starting current | 280A | 200A | 300A |
|
Quiescent operating current
|
0.6-1.5mA
|
||
|
Copper foil thickness
|
3.0 oz
|
||
|
PCB material |
Aluminum plate
|
||
| On-going internal resistance | NA | ||
| Working principle | The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast. | ||
|
Application
|
1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required |
||
| Accessories | Terminal lug*3; IN+/OUT+ terminal lug : OTZ50-8, screw M8 GND terminal lug : OTZ2.5-3, screw M3 |
||
|
Operating Temperature
|
-40℃ ~ +60℃
|
||
Special Note:
1. This version is the latest optimized version. If the positive and negative poles are connected reversely, the module will not be burned, which improves the safety of installation;
2. An ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of an ordinary diode is more than 0.6V.
The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB trace are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.
Thermal conductivity is 20 times faster than FR4 glass fiber and can be directly attached to large heat sinks.
4. The average overcurrent of a MOS is less than 35A. We use a 300A MOS.
True standard current, allowing long-term load operation
5. This ideal diode module cannot be used in rectifier circuits!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
