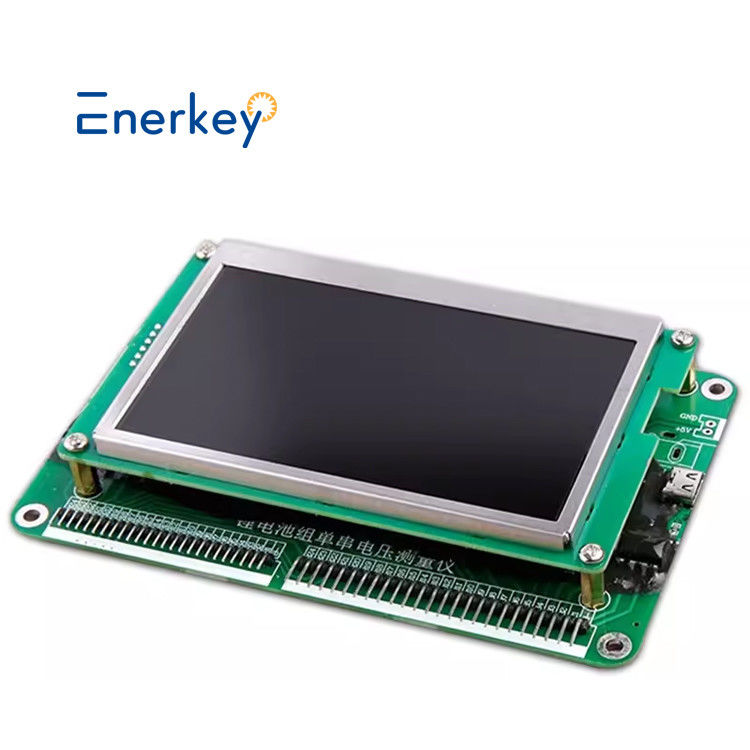

Test expansion board: one interface expansion board connecting the host computer, which can be directly inserted into the tester for different serial battery test purposes.

The tester doesn't send the cable! Each customer's demand is not the same, with the cable is not the same!

The hardware configuration of the Chinese and English versions is exactly the same, but the display interface is different. Domestic users should be careful to buy the English version.

Notes: This product is guaranteed for one month! The original intention of the tester is to be used for testing and assembling the battery pack to test the voltage of each string.

If it is modified for other purposes, we do not provide technical support.

Dimensions: l 140 * w 87mm

1. Support negative pressure display

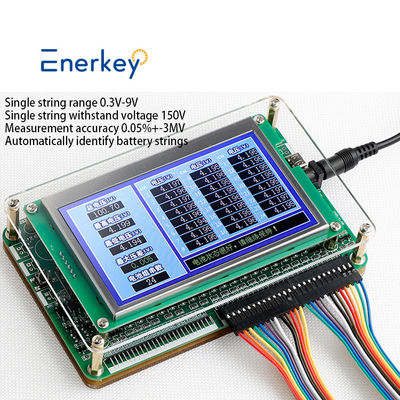

2. Single series range 0.1V ~ 6V

3. Measurement accuracy 0.05% + - 3MV

4. Supports mixed insertion (not starting from B -)

5. Automatic identification of battery string number

6. The maximum voltage, minimum voltage and maximum voltage difference between the strings are displayed

7. Type C port power supply

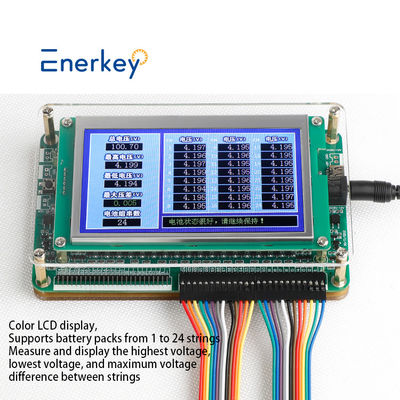

8. Color LCD display, support 1 to 24 strings of battery measurement The test extension board that needs to be matched with the main tester can be purchased by clicking the link below

Use Steps

1. Use the TypeC power port or DC power supply to the power.

2. Press and hold the K1 button for 10 seconds to automatically switch to the English interface.

3.. Select the detection port according to its own interface, and then you can check whether the voltage difference is normal.

Note:
1. The 2.0mm pin and 2.54mm pin of the tester are designed for parallel input and can only be connected to one set of batteries, and cannot be touched with metal conductors.

2. The tester does not come with cables! Each customer's needs are different, and the cables used are also different!

3. The hardware configurations of the Chinese and English versions are exactly the same, except for the display interface. Foreign users please purchase the English version.

4. This product is only used to test the voltage of each battery string and has no balancing function!

5. This product has a one-year warranty! If there is any damage caused, you will have to pay the return shipping fee!

6. The original intention of the tester is to test the assembled battery pack and test the voltage of each string. If it is modified for other purposes, we will not provide technical support.

7. If you do not have professional electronic and electrician skills, it is not recommended to purchase this product.

8. The adapter board can be plugged into the tester and is compatible with battery testing purposes of different series numbers (because the adapter pins will be crushed during transportation, we do not solder the pins before shipping)
