The 16S 2A/4A Smart Active Balancer with an app provides several key advantages:



User-Friendly Control: The app interface allows for easy monitoring and management of the battery system from a smartphone or tablet.

Real-Time Data Access: Users can access real-time data on cell voltage, temperature, and balancing status, improving oversight and decision-making.



Flexible Current Options: With both 2A and 4A balancing modes, it can adapt to different application needs and battery configurations.

Enhanced Efficiency: Active balancing optimizes energy distribution, reducing losses and improving overall battery efficiency.

Extended Battery Life: Ensures uniform cell charging, which minimizes degradation and prolongs battery lifespan.

Custom Alerts: The app can send notifications for potential issues like voltage imbalances or temperature anomalies, enhancing safety.

Easy Configuration: Users can adjust balancing thresholds and settings directly through the app, making customization straightforward.

Scalability: Suitable for integration into larger battery systems, allowing for versatile applications.





Technical Parameters

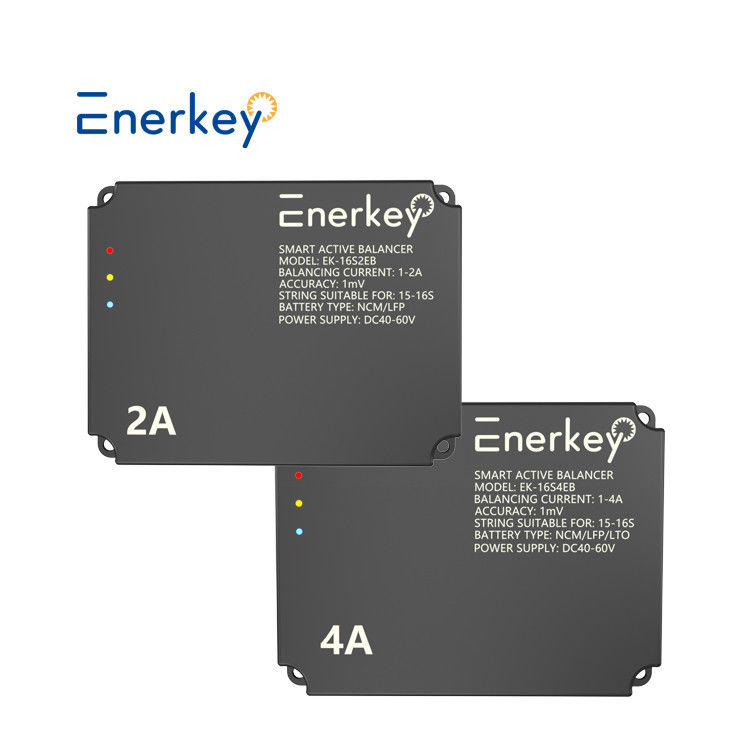

Product model	2A 4A Smart Active Balancer for 15-16s (EK-16S2/4EB)
Supported battery type	NCM / LFP(Li-ion/Lifepo4)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~2A(2A version) APP can be customized Settings: 1A~4A(4A version)
Whether an external power supply is required	When the total battery system voltage is below 24V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle

Packing List





 Use Manual

Wiring Diagram

EK-16S4EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
