Battery Repair Machine
>
Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery

Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery

Brand Name: Enerkey
Model Number: EK-FD14AS24CK
MOQ: 40pcs
Price: 360.9
Packaging Details: 44x41x34
Payment Terms: visa, mastercard, T/T, or online payment
Detail Information
Place of Origin:
China
Certification:
Yes
Weight:
12kg
Equilibrium Current:
0.1A-14A Adjustable
Function:
Charge And Discharge Balancing
Battery Type:
NCM / LFP/ LTO (Li-ion/Lifepo4/Lto)
Support Battery Voltage:
2V-4.5V
Discharge Balance Method:
PWM Pulse Discharge Method
Balanced Voltage Mode:
Automatic Identification
Dimensions:
L360 X W340 X H195mm
Supply Ability:
5000pcs/month
Product Description

Product Description:

The Intelligent Charge and Discharge Equalizer (EK-FD14AS24CK) is designed for 2~24S battery pack with NCM/LFP/LTO (Li-ion/Lifepo4/Lto) and battery voltage between 2V and 4.5V. The actual current is influenced by input voltage, line resistance, temperature, and battery performance. This device has the capability to automatically identify the number of battery series, and provides reverse connection protection, over-temperature protection, over-voltage (4.5V) protection, low-voltage (2V) protection, and alarm.

With the function of discharge balance, constant voltage balance, and charge balance, this device needs an external charger with adjustable non-auto-stop function. Two modes are available: automatic identification mode and manual input mode. In automatic identification mode, the device is based on the lowest voltage string and all are balanced to the voltage of the lowest voltage string (voltage is aligned downward). In manual input mode, the required balanced voltage is set and all are balanced to the set voltage value.

Moreover, this device is equipped with a 7-inch display that provides important information such as balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, and temperature.



Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 0

Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 1Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 2Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 3Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 4Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 5Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 6Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 7

Technical Parameters:

Voltage Measure Range

The voltage measure range for this device is between 1V to 4.5V. This means that the device can accurately measure voltage ranging between these values.

Voltage Measure Accuracy

The voltage measure accuracy for this device is ±(0.08%+0.06%FS). This means that there is a level of accuracy it can achieve when measuring voltage within its range.

Current Setting Range

This device has a current setting range between 0.1A to 14A which can be adjusted to suit specific needs. This adjustable range gives the user flexibility in utilizing the device.

Discharge Balance Method

The discharge balance method used in this device is the PWM pulse discharge method. The PWM method allows for an efficient and controlled discharge of the the device.

Charging Assistance

To use this device, an external charger is required. The charging port has been designed to withstand voltage up to ±DC130V.

Equilibrium Voltage

The device has an automatic identification equilibrium voltage feature which makes the monitoring and balancing of the energy levels more efficient.

Interface Withstand Voltage

The interface withstand voltage/B- to B24 without voltage is -120V~+120V. This means that the device has a certain level of tolerance to withstand voltage variances within this range.

Power Supply

The device runs on an external power supply of DC12V5A which is required for it to work as intended.





Product name 24S 14A Intelligent Charge and Discharge Equalizer
Product model EK-FD14AS24CK
Product size L360*W340*H195mm
Product weight 8.6kg
Suitable battery type NCM / LFP/Lto(Li-ion/Lifepo4/Lto)
Suitable battery strings 2s-24s
Suitable battery voltage range 2.0V-4.5V
Equilibrium current 0.1A-14A(Can be adjust)
Equilibrium principle PWM pulse discharge method
LCD Display size 7inch
Equilibrium mode Discharge balance, constant voltage balance, charge balance
(needs an external charger with adjustable non-auto-stop function)
Equilibrium voltage Automatic Identification
Charging assistance Need to use an external charger, the charging port withstands voltage ±DC130V
Single channel interface withstand voltage -120V~ +120V
Chinese-English display conversion After turning on the device, press and hold the balance button for 10 seconds to switch between Chinese and English
Actual current The actual current is related to input voltage, wire resistance, temperature, and battery performance.
Voltage measurement range 1V~4.5V
Voltage measurement accuracy ±(0.08%+0.06%FS)
External power supply DC12V 5A
Interface pressure resistance -120V~ +120V
Automatically identify strings Support
Power failure detection function Support
Wrong wire protection function Support
Fault alarm function Support
Operating temperature 0℃ ~ 40℃
Operating humidity 20%~70%RH
Application Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper
Balanced voltage mode There are two modes: automatic identification mode and manual input mode. The automatic identification mode is based
on the lowest voltage string, and all are balanced to the voltage of the lowest voltage string (voltage is aligned
downward). The manual input mode is to set the required balanced voltage, and all are balanced to the set voltage value.
Optimum charger voltage Optimal charger voltage (V) = (balance voltage (V) * number of strings) + (number of strings * 0.01V); Charger current
is less than or equal to the balance current. Charging current is less than or equal to 10A. Exceeding 12A will damage
the device. When charging balance, please disconnect the charger immediately after balance is completed.
Display content Balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage,
average voltage, maximum voltage difference, number of battery strings, temperature
Operation Instructions After power on, the default mode is automatic identification. After connecting the wire, press the
"Start" button or the "Equilibrium" button on the chassis to automatically identify and start balancing.
Manual input mode, press "Manual input" to enter manual input mode,Then press "Equilibrium
Voltage (V)" to open the numeric keypad and enter the balance voltage (2.0v-4.5v) to confirm,
then press the "Start" button or the "Equilibrium"button on the chassis to start balancing.
Press "Maximum Balance Current (A)" to enter the current setting, the range is 0A-14A.



Applications:

Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper / Electronic cars

/ Power storage system / Electronic tools etc.



Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 8Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 9Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 10

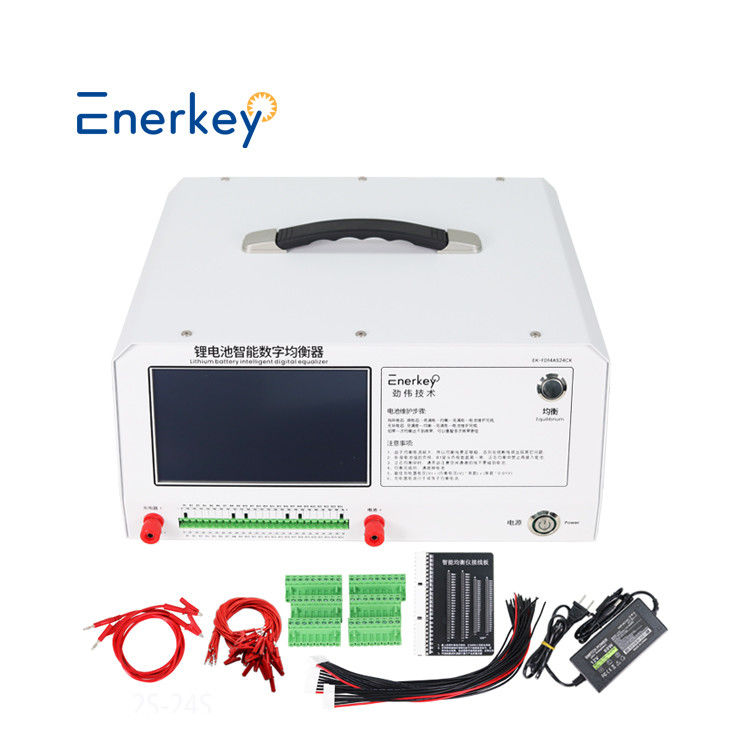

Packing and Shipping:

Intelligent Equalizer x1pcs
Wire Clip Cables x 1set
Wire Thermial x 1set
Power Cables x 1set
Adapter x 1pcs
Power Supply x 1pcs
Product Manual x1pcs



Digital Equalizer 24S 14A Battery Repair Equalizer Balancing Machine For NCM/LFP/LTO Li-ion/Lifepo4/LTO Battery 11
