| Brand Name: | Enerkey |
| Model Number: | EK-FD14AS24CK |
| MOQ: | 35pcs |
| Price: | 370.29 |
| Packaging Details: | 44x41x34 |
| Payment Terms: | visa, mastercard, T/T, or online payment |

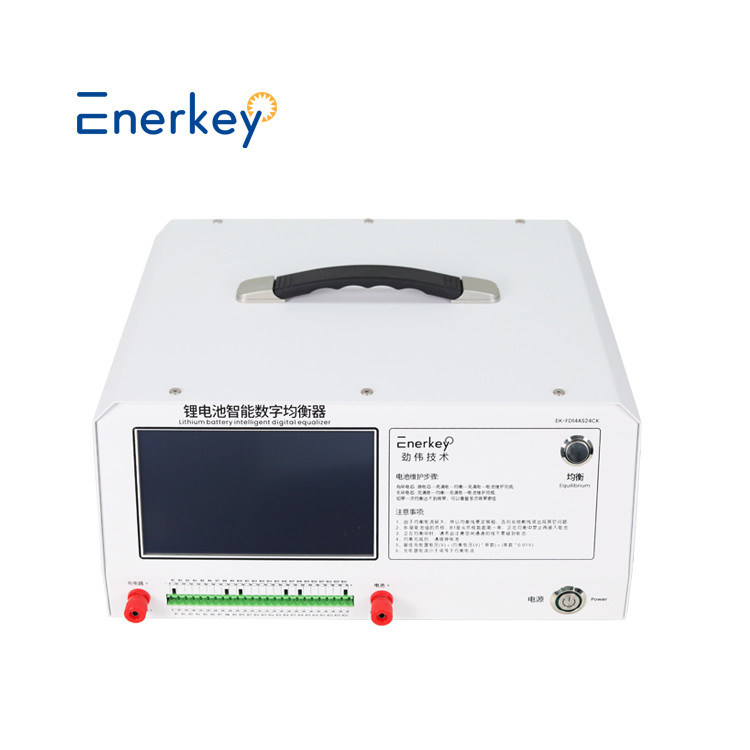

The 24S 14A Intelligent Charge and Discharge Equalizer (EK-FD14AS24CK) is a device designed for use with 2~24S battery packs that range from NCM / LFP/LTO(Li-ion/Lifepo4/Lto) and have a battery voltage between 2V and 4.5V.
It should be noted that the actual current that is produced by the device is dependent on various factors, such as input voltage, line resistance, temperature, and battery performance. Additionally, it features automatic identification of the number of battery series, which is a convenient feature.
Moreover, the device is equipped with reverse connection protection, over-temperature protection, over-voltage (4.5V) protection, low-voltage (2V) protection, and an alarm to prevent possible hazards. Furthermore, the device will automatically stop and alarm when the balancing process is completed
There are three types of balancing the device supports, including discharge balance, constant voltage balance, and charge balance, which requires an external charger with adjustable non-auto-stop function. There are two modes to choose from; automatic identification mode and manual input mode. When using the automatic identification mode, the device will balance all strings to the voltage of the lowest voltage string by aligning their voltage downwards. Alternatively, the manual input mode allows the user to set the required balanced voltage, and all strings will balance according to the set voltage value.
The device also features a 7 inch Display that displays balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, and the number of battery strings. Additionally, it displays the temperature, making it easy to monitor the performance of the device and the battery pack.
The voltage measurement range of this product is between 1V and 4.5V.
The voltage measurement accuracy is ±(0.08%+0.06%FS).
The current setting range is between 0.1A and 14A and can be adjusted.
The discharge balance method used by this product is the PWM pulse discharge method.
Charging assistance is required for this product and an external charger must be used. The charging port can withstand voltage up to ±DC130V.
The equilibrium voltage of this product is automatically identified.
The interface can withstand voltage from B- to B24 without voltage ranging between -120V and +120V.
The power supply for this product is DC12V5A.
| Product name | 24S 14A Intelligent Charge and Discharge Equalizer |
| Product model | EK-FD14AS24CK |
| Product size | L360*W340*H195mm |
| Product weight | 8.6kg |
| Suitable battery type | NCM / LFP/Lto(Li-ion/Lifepo4/Lto) |
| Suitable battery strings | 2s-24s |
| Suitable battery voltage range | 2.0V-4.5V |
| Equilibrium current | 0.1A-14A(Can be adjust) |
| Equilibrium principle | PWM pulse discharge method |
| LCD Display size | 7inch |
| Equilibrium mode | Discharge balance, constant voltage balance, charge balance (needs an external charger with adjustable non-auto-stop function) |
| Equilibrium voltage | Automatic Identification |
| Charging assistance | Need to use an external charger, the charging port withstands voltage ±DC130V |
| Single channel interface withstand voltage | -120V~ +120V |
| Chinese-English display conversion | After turning on the device, press and hold the balance button for 10 seconds to switch between Chinese and English |
| Actual current | The actual current is related to input voltage, wire resistance, temperature, and battery performance. |
| Voltage measurement range | 1V~4.5V |
| Voltage measurement accuracy | ±(0.08%+0.06%FS) |
| External power supply | DC12V 5A |
| Interface pressure resistance | -120V~ +120V |
| Automatically identify strings | Support |
| Power failure detection function | Support |
| Wrong wire protection function | Support |
| Fault alarm function | Support |
| Operating temperature | 0℃ ~ 40℃ |
| Operating humidity | 20%~70%RH |
| Application | Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper |
| Balanced voltage mode | There are two modes: automatic identification mode and manual input mode. The automatic identification mode is based on the lowest voltage string, and all are balanced to the voltage of the lowest voltage string (voltage is aligned downward). The manual input mode is to set the required balanced voltage, and all are balanced to the set voltage value. |
| Optimum charger voltage | Optimal charger voltage (V) = (balance voltage (V) * number of strings) + (number of strings * 0.01V); Charger current is less than or equal to the balance current. Charging current is less than or equal to 10A. Exceeding 12A will damage the device. When charging balance, please disconnect the charger immediately after balance is completed. |
| Display content | Balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, temperature |
| Operation Instructions | After power on, the default mode is automatic identification. After connecting the wire, press the "Start" button or the "Equilibrium" button on the chassis to automatically identify and start balancing. Manual input mode, press "Manual input" to enter manual input mode,Then press "Equilibrium Voltage (V)" to open the numeric keypad and enter the balance voltage (2.0v-4.5v) to confirm, then press the "Start" button or the "Equilibrium"button on the chassis to start balancing. Press "Maximum Balance Current (A)" to enter the current setting, the range is 0A-14A. |
Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper / Electronic cars
/ Power storage system / Electronic tools etc.
Intelligent Equalizer x1pcs
Wire Clip Cables x 1set
Wire Thermial x 1set
Power Cables x 1set
Adapter x 1pcs
Power Supply x 1pcs
Product Manual x1pcs
|
