| Brand Name: | Enerkey |
| Model Number: | EK-FD14AS24CK |
| MOQ: | 20pcs |
| Price: | 402.43 |
| Packaging Details: | 44x41x34 |
| Payment Terms: | visa, mastercard, T/T, or online payment |

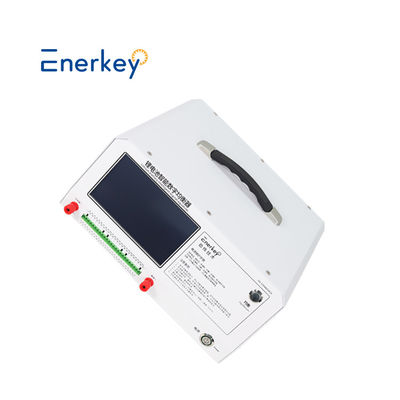

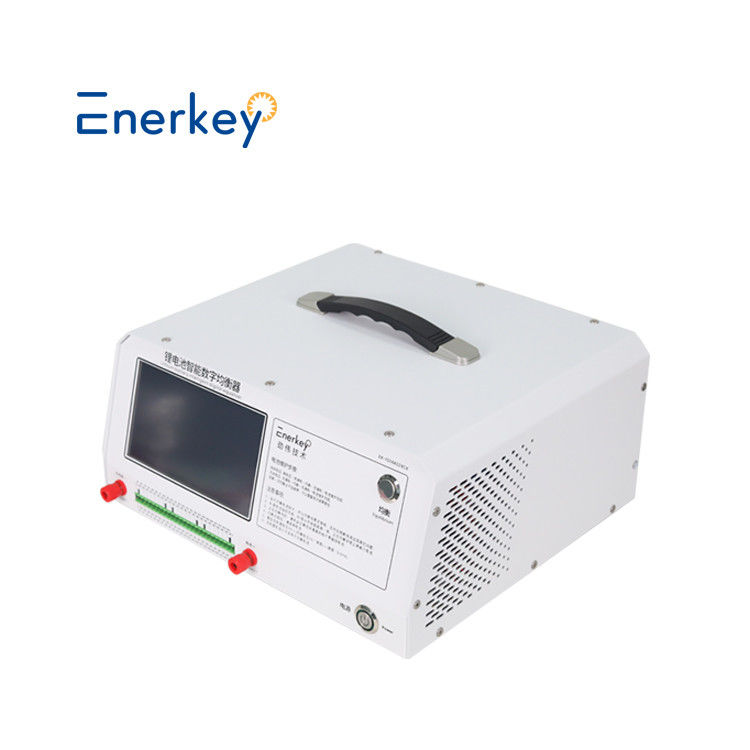

The EK-FD14AS24CK is an Intelligent Charge and Discharge Equalizer designed to work with 2~24S battery packs containing NCM/LFP/LTO(Li-ion/Lifepo4/Lto) with a battery voltage between 2V and 4.5V.
The current that the device uses is determined by the input voltage, line resistance, temperature, and battery performance, so it can adjust accordingly.
For added protection, this device has reverse connection protection, over-temperature protection, over-voltage (4.5V) protection, low-voltage (2V) protection, and an alarm to alert users to any issues.
And once the device has finished balancing your batteries, it automatically stops and alarms.
This device can manage discharge balance, constant voltage balance, and charge balance, but you'll need an external charger with adjustable non-auto-stop function to use it.
In terms of modes, there are two available: automatic identification mode and manual input mode. The automatic mode is based on the lowest voltage string, and all are balanced to the voltage of the lowest voltage string (voltage is aligned downward). The manual input mode lets you set the required balanced voltage and will balance all strings accordingly.
The EK-FD14AS24CK also has a 7-inch display showing balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, and temperature.
Below are the improved versions of the given text:
Voltage measurement range: 1V to 4.5V.
Voltage measurement accuracy: ±(0.08%+0.06%FS)
Current setting range: 0.1A to 14A (can be adjusted).
Discharge balance method: PWM pulse discharge method.
Charging assistance: An external charger is needed and the charging port withstands voltage ±DC130V.
Equilibrium voltage: Automatically identified.
Interface withstand voltage / B- to B24 without voltage: -120V to +120V.
Power supply: DC12V5A.
| Product name | 24S 14A Intelligent Charge and Discharge Equalizer |
| Product model | EK-FD14AS24CK |
| Product size | L360*W340*H195mm |
| Product weight | 8.6kg |
| Suitable battery type | NCM / LFP/Lto(Li-ion/Lifepo4/Lto) |
| Suitable battery strings | 2s-24s |
| Suitable battery voltage range | 2.0V-4.5V |
| Equilibrium current | 0.1A-14A(Can be adjust) |
| Equilibrium principle | PWM pulse discharge method |
| LCD Display size | 7inch |
| Equilibrium mode | Discharge balance, constant voltage balance, charge balance (needs an external charger with adjustable non-auto-stop function) |
| Equilibrium voltage | Automatic Identification |
| Charging assistance | Need to use an external charger, the charging port withstands voltage ±DC130V |
| Single channel interface withstand voltage | -120V~ +120V |
| Chinese-English display conversion | After turning on the device, press and hold the balance button for 10 seconds to switch between Chinese and English |
| Actual current | The actual current is related to input voltage, wire resistance, temperature, and battery performance. |
| Voltage measurement range | 1V~4.5V |
| Voltage measurement accuracy | ±(0.08%+0.06%FS) |
| External power supply | DC12V 5A |
| Interface pressure resistance | -120V~ +120V |
| Automatically identify strings | Support |
| Power failure detection function | Support |
| Wrong wire protection function | Support |
| Fault alarm function | Support |
| Operating temperature | 0℃ ~ 40℃ |
| Operating humidity | 20%~70%RH |
| Application | Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper |
| Balanced voltage mode | There are two modes: automatic identification mode and manual input mode. The automatic identification mode is based on the lowest voltage string, and all are balanced to the voltage of the lowest voltage string (voltage is aligned downward). The manual input mode is to set the required balanced voltage, and all are balanced to the set voltage value. |
| Optimum charger voltage | Optimal charger voltage (V) = (balance voltage (V) * number of strings) + (number of strings * 0.01V); Charger current is less than or equal to the balance current. Charging current is less than or equal to 10A. Exceeding 12A will damage the device. When charging balance, please disconnect the charger immediately after balance is completed. |
| Display content | Balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, temperature |
| Operation Instructions | After power on, the default mode is automatic identification. After connecting the wire, press the "Start" button or the "Equilibrium" button on the chassis to automatically identify and start balancing. Manual input mode, press "Manual input" to enter manual input mode,Then press "Equilibrium Voltage (V)" to open the numeric keypad and enter the balance voltage (2.0v-4.5v) to confirm, then press the "Start" button or the "Equilibrium"button on the chassis to start balancing. Press "Maximum Balance Current (A)" to enter the current setting, the range is 0A-14A. |
Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper / Electronic cars
/ Power storage system / Electronic tools etc.
Intelligent Equalizer x1pcs
Wire Clip Cables x 1set
Wire Thermial x 1set
Power Cables x 1set
Adapter x 1pcs
Power Supply x 1pcs
Product Manual x1pcs
|
