| Brand Name: | Enerkey |
| Model Number: | EK-FD14AS24CK |
| MOQ: | 15pcs |
| Price: | 405.43 |
| Packaging Details: | 44x41x34 |
| Payment Terms: | visa, mastercard, T/T, or online payment |
The actual current of the equalizer is influenced by different factors such as the input voltage, line resistance, temperature, and battery performance. The product works to support automatic identification of battery series and features several protective functions such as reverse connection protection, over-temperature protection, over-voltage (4.5V) protection, low-voltage (2V) protection, and alarm.
Upon completion of the balancing process, the intelligent equalizer stops operations and signals an alarm. It has three balancing modes: discharge balance, constant voltage balance, and charge balance. However, an external charger with adjustable non-auto-stop function is required to use this feature.
The product offers two modes: automatic identification mode and manual input mode. In the automatic identification mode, the lowest voltage string is the reference point, and all the batteries are balanced to the lowest voltage string's voltage. For the manual input mode, you can set a required balanced voltage, and all battery strings are balanced to the set voltage value.
The Intelligent Charge and Discharge Equalizer also comes with a 7-inch display that shows data such as balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, and temperature.
The voltage measure range for this system is 1V to 4.5V. Additionally, the voltage measure accuracy is ±(0.08%+0.06%FS).
When it comes to current setting, the range is 0.1A to 14A. This setting is adjustable according to your needs.
The system also features a PWM pulse discharge method for discharge balance.
If you need to use an external charger, the charging port can withstand voltage ±DC130V. Moreover, the equilibrium voltage is automatically identified in this system.
When it comes to interface withstand voltage, the range from B- to B24 without voltage is -120V to +120V. Finally, the power supply for this system is DC12V5A.

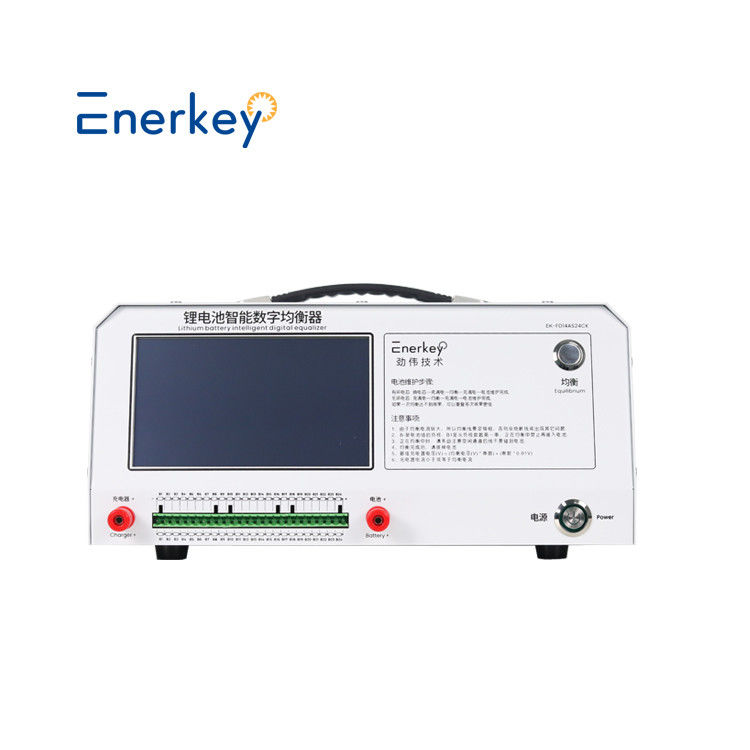

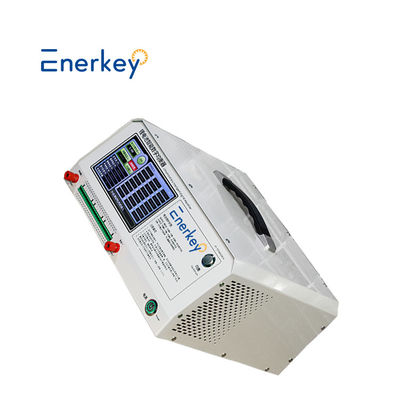

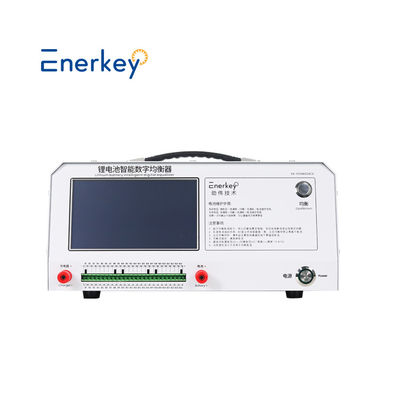

| Product name | 24S 14A Intelligent Charge and Discharge Equalizer |
| Product model | EK-FD14AS24CK |
| Product size | L360*W340*H195mm |
| Product weight | 8.6kg |
| Suitable battery type | NCM / LFP/Lto(Li-ion/Lifepo4/Lto) |
| Suitable battery strings | 2s-24s |
| Suitable battery voltage range | 2.0V-4.5V |
| Equilibrium current | 0.1A-14A(Can be adjust) |
| Equilibrium principle | PWM pulse discharge method |
| LCD Display size | 7inch |
| Equilibrium mode | Discharge balance, constant voltage balance, charge balance (needs an external charger with adjustable non-auto-stop function) |
| Equilibrium voltage | Automatic Identification |
| Charging assistance | Need to use an external charger, the charging port withstands voltage ±DC130V |
| Single channel interface withstand voltage | -120V~ +120V |
| Chinese-English display conversion | After turning on the device, press and hold the balance button for 10 seconds to switch between Chinese and English |
| Actual current | The actual current is related to input voltage, wire resistance, temperature, and battery performance. |
| Voltage measurement range | 1V~4.5V |
| Voltage measurement accuracy | ±(0.08%+0.06%FS) |
| External power supply | DC12V 5A |
| Interface pressure resistance | -120V~ +120V |
| Automatically identify strings | Support |
| Power failure detection function | Support |
| Wrong wire protection function | Support |
| Fault alarm function | Support |
| Operating temperature | 0℃ ~ 40℃ |
| Operating humidity | 20%~70%RH |
| Application | Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper |
| Balanced voltage mode | There are two modes: automatic identification mode and manual input mode. The automatic identification mode is based on the lowest voltage string, and all are balanced to the voltage of the lowest voltage string (voltage is aligned downward). The manual input mode is to set the required balanced voltage, and all are balanced to the set voltage value. |
| Optimum charger voltage | Optimal charger voltage (V) = (balance voltage (V) * number of strings) + (number of strings * 0.01V); Charger current is less than or equal to the balance current. Charging current is less than or equal to 10A. Exceeding 12A will damage the device. When charging balance, please disconnect the charger immediately after balance is completed. |
| Display content | Balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, temperature |
| Operation Instructions | After power on, the default mode is automatic identification. After connecting the wire, press the "Start" button or the "Equilibrium" button on the chassis to automatically identify and start balancing. Manual input mode, press "Manual input" to enter manual input mode,Then press "Equilibrium Voltage (V)" to open the numeric keypad and enter the balance voltage (2.0v-4.5v) to confirm, then press the "Start" button or the "Equilibrium"button on the chassis to start balancing. Press "Maximum Balance Current (A)" to enter the current setting, the range is 0A-14A. |
Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper / Electronic cars
/ Power storage system / Electronic tools etc.
Intelligent Equalizer x1pcs
Wire Clip Cables x 1set
Wire Thermial x 1set
Power Cables x 1set
Adapter x 1pcs
Power Supply x 1pcs
Product Manual x1pcs
|
