**Robust and User-Friendly Design**

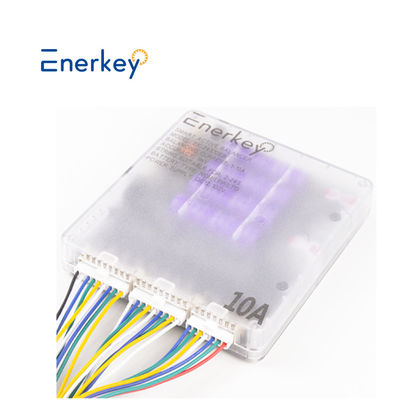

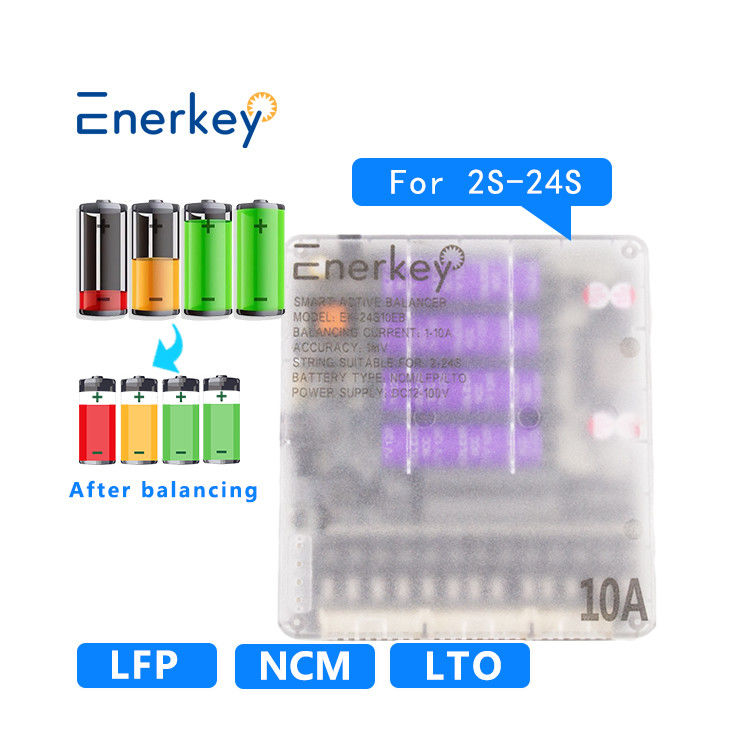

The Enekrey BMS 2-24S 10A Smart Active Balancer is not just a powerful tool but also a compact and user-friendly device. Its dimensions of L156 x W144 x T28(mm) and a weight of 960g make it easy to handle and transport.

The product is designed to support a variety of battery types, including ternary lithium, lithium iron phosphate, and lithium titanate batteries, ensuring compatibility with the latest technologies in the market.

Its robust build quality and reverse protection features make it a reliable choice for professionals and DIY enthusiasts alike.



**Intelligent and Convenient Operation**
The Enekrey BMS 2-24S 15A Smart Active Balancer is equipped with advanced Bluetooth communication, allowing for seamless connectivity with its mobile app software.

This feature not only enables users to monitor individual battery voltages but also provides real-time status updates, the ability to modify settings, and access to a range of other useful functions.

The equalizer's under voltage protection, customizable voltage balancing accuracy, and power failure detection functions ensure that your batteries are always in optimal condition.

Its low power consumption, with ≈ 1W when active and ≈ 0.5W when inactive, makes it an energy-efficient solution for maintaining your battery packs.





Technical Parameters

Product model	10A Smart Active Balancer for 2-24s (EK-24S10EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~10A
Whether an external power supply is required	External power supply 24V-100V(accuracy ±1mV) Battery powered (accuracy ±3mV)
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
