Enerkey's balanced management system also has important implications in terms of sustainable development. By optimizing the performance of the battery pack, it not only extends the battery life,

but also reduces resource waste and environmental pollution, in line with global requirements for sustainable energy transformation.

Users will significantly experience longer battery life and higher charging efficiency during use, especially in electric vehicle applications. The implementation of this technology may accelerate consumer acceptance and market penetration.

 At the same time, the abnormality monitoring mechanism of the battery pack also provides guarantees for users’ safe use, helping to enhance the market competitiveness of the product.

In the future, Enerkey's balanced management system may become the standard configuration of the electric vehicle industry and promote the optimization of the entire ecological chain.

As this technology continues to mature, other companies in the industry will also face pressure to carry out technological innovations, and the entire market environment will become more competitive.

Overall, Enerkey's research and development of power battery balancing management systems not only promotes technological development, but also provides new solutions to the global energy crisis.

Through continuous innovation and technology integration, Enerkey is expected to occupy a place in the global power battery management technology arena.





Technical Parameters

Product model	16S 2A Smart Active Balancer for 2-16s (EK-16S2EB)
Supported battery type	NCM / LFP(Li-ion/Lifepo4)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~2A
Whether an external power supply is required	When the total battery system voltage is below 24V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle

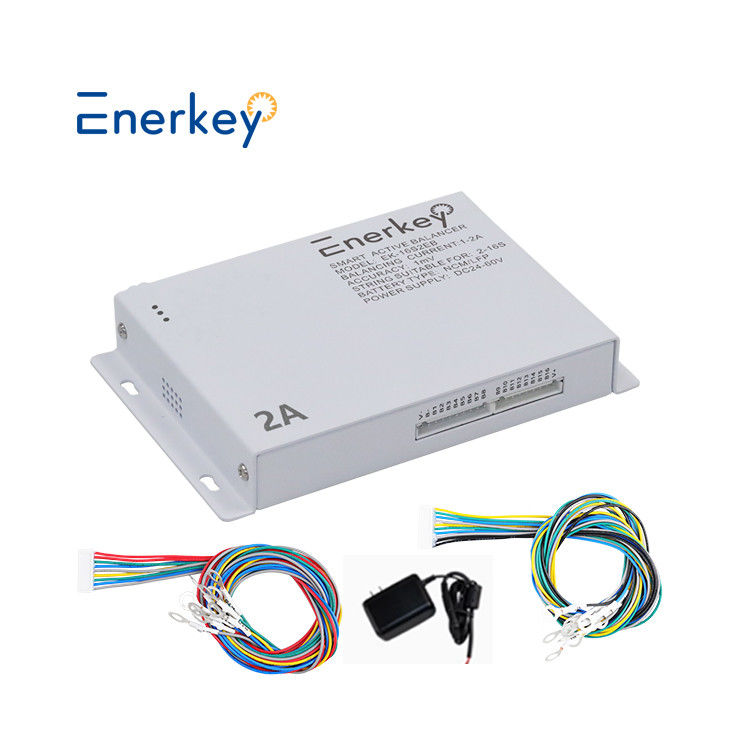

Packing List





 Use Manual

Wiring Diagram

EK-16S2EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
