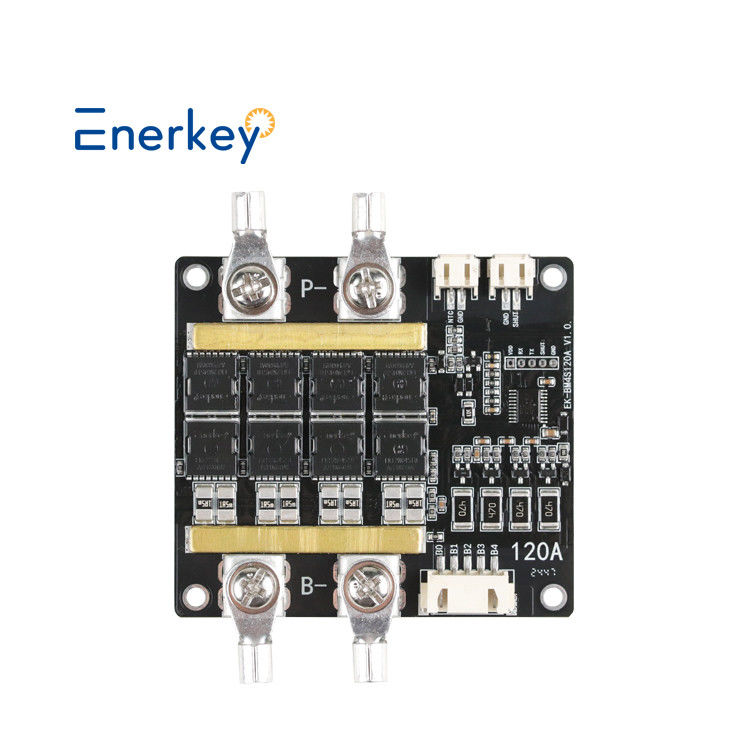

Battery BMS Board
>
Enerkey 12V LiFePO4 BMS 3s 4s 120A 14.8V 18650 Battery BMS Packs Protection Board Balance Integrated Circuits

Enerkey 12V LiFePO4 BMS 3s 4s 120A 14.8V 18650 Battery BMS Packs Protection Board Balance Integrated Circuits

Brand Name: Enerkey
Model Number: EK-BM3R4S120A
MOQ: 50pieces
Price: $36.45-$37
Packaging Details: Strong paper box +EVA Foam
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001/CE/ROHS
Product Name:
3S 4S 120A Lithium Battery BMS
Copper Thickness:
2oz
Application:
Electric Scooter
Board Thickness:
1.6mm
Battery Type:
Li-ion/Lifepo4/Lto/SIB
Allowable Operating Voltage Range:
0-30V
Rated Discharge Currenturrent:
120A
Peak Starting Current:
160A
Used For:
Lithium Battery Protection Board
Keywords:
3S 4S BMS
Base Material:
FR-4
Surface Finishing:
Lead-free Spray Tin

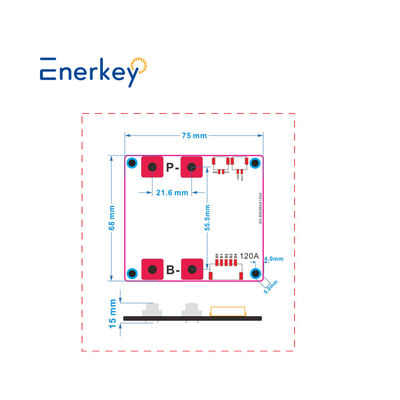

Product Size:
L75xW68xT15mm
Weight With Package:
0.08kg
Supply Ability:
1000000pcs per day
Product Description



Product Description

Monitoring: The BMS monitors the state of the entire battery cells on a cell-by-cell basis.
Voltage measurement:
The BMS measures the voltage of each battery cell or the overall voltage of the battery pack, thereby preventing an overcharging or excessive discharging.

Current measurement:
The BMS measures the discharge current from the battery or the charge current to the battery. It checks the use status or the charged state of the battery and performs proper control.

Temperature measurement:
The BMS constantly monitors the temperature of the battery through a temperature sensor. Using the battery within a proper temperature range ensures the safety of the battery and longer service life.

Control:The BMS eliminates variations in performance of individual battery cells to allow them to work uniformly.
A large-capacity battery pack consists of a number of battery cells. These cells vary in performance, and deteriorate at different rates. For example, when a specific cell deteriorates faster than other cells do,

it may affect the overall performance or service life of the battery pack. Such variations in performance or deterioration rate are eliminated by a function called "balancing."



Enerkey 12V LiFePO4 BMS 3s 4s 120A 14.8V 18650 Battery BMS Packs Protection Board Balance Integrated Circuits 0

Enerkey 12V LiFePO4 BMS 3s 4s 120A 14.8V 18650 Battery BMS Packs Protection Board Balance Integrated Circuits 1

Enerkey 12V LiFePO4 BMS 3s 4s 120A 14.8V 18650 Battery BMS Packs Protection Board Balance Integrated Circuits 2



Technical Parameters



 Item typeParameters
1Parameter OverviewProduct ModelEK-BM3R4S120AEK-BM3R4S120AEK-BM3R4S120AEK-BM3R4S120A
Product Size(mm)L75*W68*T15L75*W68*T15L75*W68*T15L75*W68*T15
Product Weight(kg)0.080.080.080.08
Product MaterialFR-4 / Lead-free spray tinFR-4 / Lead-free spray tinFR-4 / Lead-free spray tinFR-4 / Lead-free spray tin
Applicable battery typeLifepo4Li-ionLtoSIB
Applicable battery string number3S / 4S3S / 4S3S / 4S3S / 4S
Rated discharge current120A120A120A120A
Peak starting current160A160A160A160A
 Item typeTrigger
           (time)
Trigger
           (time)
Trigger
           (time)
Trigger
           (time)
Trigger
           (time)
Trigger
           (time)
Trigger
           (time)
Trigger
           (time)
2Charging protectionOvervoltage protection voltage value3.65V/1s3.50V/1s
Balanced phase difference voltage value30Mv/1s/
Balanced voltage value3.45V/
Overcurrent value60A/2s/
①Low temperature value-5℃/2s0℃/2s
①Overtemperature value75℃/2s65℃/2s
②Low temperature value-5℃/2s0℃/2s
②Overtemperature value55℃/2s50℃/2s
3Discharge protectionUndervoltage protection voltage value2.3V/0.5s2.7V/0.5s
①Overcurrent protection value120A/2s/
②Overcurrent protection value160A/250ms/
Short circuit protection value500A/64us/
①Low temperature value-20℃/2s-10℃/2s
①Overtemperature value80℃/2s55℃/2s
②Low temperature value-20℃/2s-10℃/2s
②Overtemperature value65℃/2s60℃/2s
4OthersStandby current consumption25mA/180s/
Motherboard lock voltage0.8V/30s/



Size $ Packing List



Package included:
1 * BMS
1 * NTC Terminal Cable
1 * Switch Cable
1 * Terminal Cable
4 * Terminal Lugs
4 * M5 Screws

Enerkey 12V LiFePO4 BMS 3s 4s 120A 14.8V 18650 Battery BMS Packs Protection Board Balance Integrated Circuits 3



Wire Diagram



Enerkey 12V LiFePO4 BMS 3s 4s 120A 14.8V 18650 Battery BMS Packs Protection Board Balance Integrated Circuits 4

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!



FAQ



Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.



Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.



Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.



Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.



Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.



Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB



Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.



Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.



Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.



Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .
We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.
Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
