Battery BMS Board
>

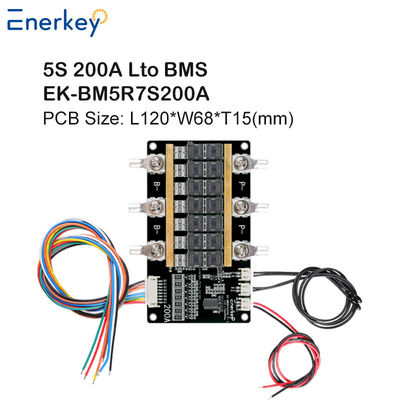

Enerkey LTO BMS 24v 5s For 12v 20ah Battery 5s 6s 7s 200a BMS With Short Protection And Balance

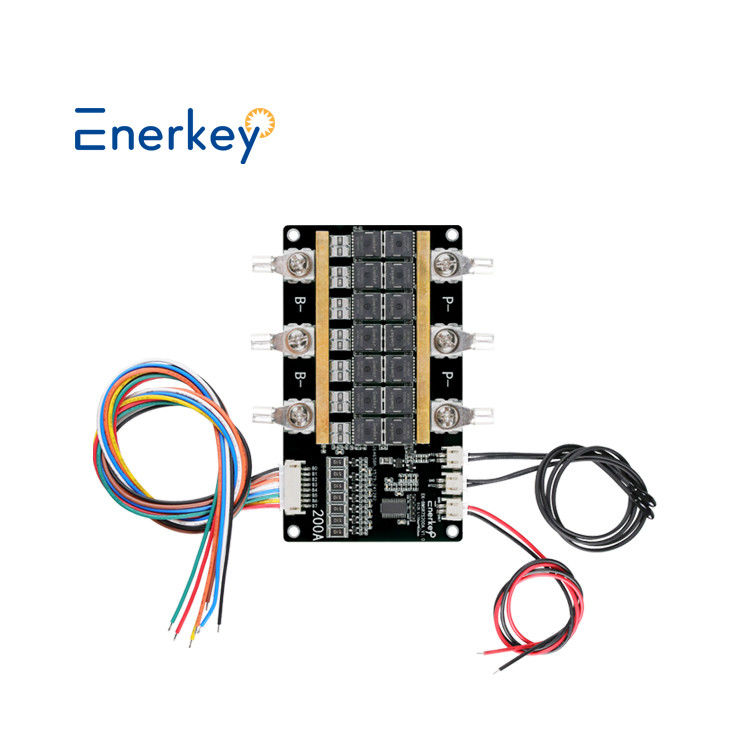

Enerkey LTO BMS 24v 5s For 12v 20ah Battery 5s 6s 7s 200a BMS With Short Protection And Balance

Brand Name: Enerkey
Model Number: EK-BM5R7S200A
MOQ: 5pieces
Price: $46.5-$49.5
Packaging Details: Strong paper box +EVA Foam
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001/CE/ROHS
Product Name:
5S 200A Lto Battery BMS
Copper Thickness:
2oz
Application:
Electric Motorcycle
Board Thickness:
1.6mm
Battery Type:
Li-ion/Lifepo4/Lto/SIB
Allowable Operating Voltage Range:
0-30V
Rated Discharge Currenturrent:
200A
Peak Starting Current:
300A
Used For:
Lithium Battery Protection Board
Keywords:
5S BMS
Base Material:
FR-4
Surface Finishing:
Lead-free Spray Tin
Product Size:
L120xW68xT15mm
Weight With Package:
0.12kg
Supply Ability:
1000000pcs per day
Highlight:

5s 6s 7s 200a BMS

,

12v 20ah Battery BMS

,

24v 5s LTO BMS

Product Description



Product Description

Enerkey Bms Li Ion/ Lifepo4/ Lto/ SIB 5s 200A - China Factory, Suppliers, Manufacturers
We always believe that one's character decides products' quality, the details decides products' high-quality ,together with the REALISTIC,EFFICIENT AND INNOVATIVE crew spirit for Bms Li Ion/ Lifepo4/ Lto/ SIB 5s, Dual Battery Management System,

Use Of Battery Management System, Electric Bms,12v Management System. If possible, be sure to send your needs with a detailed list including the style/item and quantity you require. We will then deliver our greatest price ranges to you.



The product will supply to all over the world, such as Europe, America, Australia,Vietnam, Luxembourg,Miami, Barbados.Due to our dedication, our products are well known throughout the world and our export volume continuously grows every year.

We will continue to strive for excellence by providing high quality products that will exceed the expectation of our customers.









Enerkey LTO BMS 24v 5s For 12v 20ah Battery 5s 6s 7s 200a BMS With Short Protection And Balance 0

Enerkey LTO BMS 24v 5s For 12v 20ah Battery 5s 6s 7s 200a BMS With Short Protection And Balance 1

Enerkey LTO BMS 24v 5s For 12v 20ah Battery 5s 6s 7s 200a BMS With Short Protection And Balance 2



Technical Parameters



  Item type Parameters
1 Parameter Overview Product Model EK-BM5R7S200A EK-BM5R7S200A EK-BM5R7S200A EK-BM5R7S200A
Product Size(mm) L120*W68*T15 L120*W68*T15 L120*W68*T15 L120*W68*T15
Product Weight(kg) 0.12 0.12 0.12 0.12
Product Material FR-4 / Lead-free spray tin FR-4 / Lead-free spray tin FR-4 / Lead-free spray tin FR-4 / Lead-free spray tin
Applicable battery type Lifepo4 Li-ion Lto SIB
Applicable battery string number 5S / 6S / 7S 5S / 6S / 7S 5S / 6S / 7S 5S / 6S / 7S
Rated discharge current 200A 200A 200A 200A
Peak starting current 300A 300A 300A 300A
  Item type Trigger
(time)
Trigger
(time)
Trigger
(time)
Trigger
(time)
Trigger
(time)
Trigger
(time)
Trigger
(time)
Trigger
(time)
2 Charging protection Overvoltage protection voltage value 3.65V/1s 3.50V/1s
Balanced phase difference voltage value 30Mv/1s /
Balanced voltage value 3.45V /
Overcurrent value 60A/2s /
①Low temperature value -5℃/2s 0℃/2s
①Overtemperature value 75℃/2s 65℃/2s
②Low temperature value -5℃/2s 0℃/2s
②Overtemperature value 55℃/2s 50℃/2s
3 Discharge protection Undervoltage protection voltage value 2.3V/0.5s 2.7V/0.5s
①Overcurrent protection value 120A/2s /
②Overcurrent protection value 160A/250ms /
Short circuit protection value 500A/64us /
①Low temperature value -20℃/2s -10℃/2s
①Overtemperature value 80℃/2s 55℃/2s
②Low temperature value -20℃/2s -10℃/2s
②Overtemperature value 65℃/2s 60℃/2s
4 Others Standby current consumption 25mA/180s /
Motherboard lock voltage 0.8V/30s /



Size $ Packing List



Package included:
1 * BMS
1 * NTC Terminal Cable
1 * Switch Cable
1 * Terminal Cable
6 * Terminal Lugs
6 * M5 Screws

Enerkey LTO BMS 24v 5s For 12v 20ah Battery 5s 6s 7s 200a BMS With Short Protection And Balance 3



Wire Diagram



Enerkey LTO BMS 24v 5s For 12v 20ah Battery 5s 6s 7s 200a BMS With Short Protection And Balance 4

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!



FAQ



Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.



Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.



Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.



Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.



Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.



Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB



Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.



Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.



Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.



Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .
We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.
Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
