| Brand Name: | Enerkey |
| Model Number: | EK-BM5R7S200A |
| MOQ: | 5pieces |
| Price: | $48.5-$52.5 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

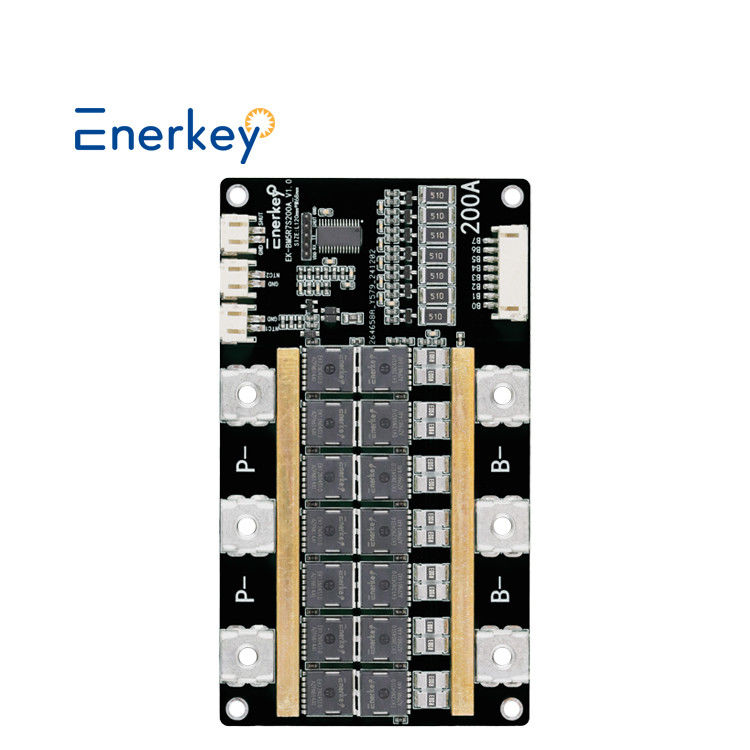

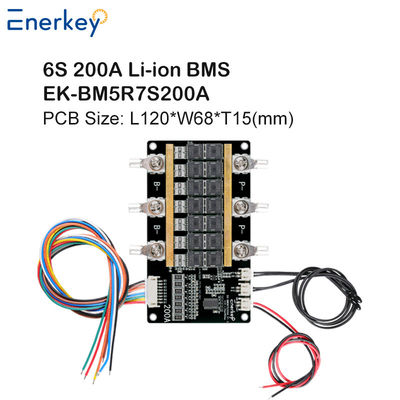

Enerkey 6s 25.2v 200A Bms Battery Protection Board For 18650 Li-ion Battery Pack Car Start BMS
BMS is a key technology for electric vehicles. The industry is in a rapid development stage:
The battery management system (BMS) mainly plays the role of intelligent management and maintenance of each unit battery, preventing the battery from discharging and overcharging, extending the battery life, and monitoring the battery. There are currently three common BMSs, namely centralized BMS, distributed BMS, and semi-centralized BMS. Each of them has its own advantages and disadvantages and is used in different scenarios. In terms of the application market structure, centralized BMS currently accounts for a higher proportion, reaching more than 55%, because the centralized BMS structure is simpler and the cost is lower. Distributed BMS is highly reproducible and can meet the application needs of different fields, and will become the main development direction of the industry.
BMS is currently mainly used in three major fields: energy storage, new energy vehicles, and consumer electronics. BMS is one of the key technologies for electric vehicles. Its application in the field of new energy vehicles accounts for about 55%, followed by the field of energy storage, accounting for 23%, and the field of consumer electronics accounts for 22%. Due to the rapid development of the new energy vehicle industry in the past five years, the proportion of BMS in new energy vehicle applications has increased significantly, accounting for about 40% in 2016.
| Item type | Parameters | |||||||||
| 1 | Parameter Overview | Product Model | EK-BM5R7S200A | |||||||
| Product Size(mm) | L120*W68*T15 | |||||||||
| Product Weight(kg) | 0.12 | |||||||||
| Product Material | FR-4 / Lead-free spray tin | |||||||||
| Applicable battery type | Lifepo4 | Li-ion | Lto | SIB | ||||||
| Applicable battery string | 5S / 6S / 7S | 5S / 6S / 7S | 5S / 6S / 7S | 5S / 6S / 7S | ||||||
| Rated discharge current | 200A | 200A | 200A | 200A | ||||||
| Peak starting current | 600A | 600A | 600A | 600A | ||||||
| Item type | Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
||
| 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S |
| Balanced phase difference voltage value | Trigger voltage difference 30mV / trigger time 0.5S / balance time 10S cycle | |||||||||
| Balanced voltage value | 3.45V | 3.70V | 2.50V | 3.10V | ||||||
| Overcurrent value | 200A/2S, disconnect charger to recover | |||||||||
| Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S | |||||||||
| Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S | |||||||||
| 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S |
| ①Overcurrent protection value | 250A/2S, disconnect load or activate charging | |||||||||
| ②Overcurrent protection value | 500A/0.5S, disconnect load or activate charging | |||||||||
| Short circuit protection value | 1000A/128uS, disconnect load or charge activated | |||||||||
| Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S | |||||||||
| Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S | |||||||||
| 4 | Others | Standby current consumption | 25uA | |||||||
| Motherboard lock voltage | / | |||||||||
Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
