| Brand Name: | Enerkey |
| Model Number: | EK-BM3R8S120A |
| MOQ: | 40pieces |
| Price: | $17.86-$21.86 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

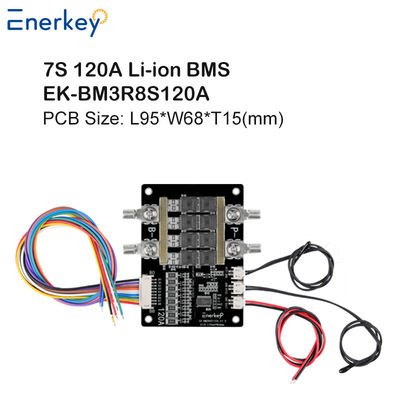

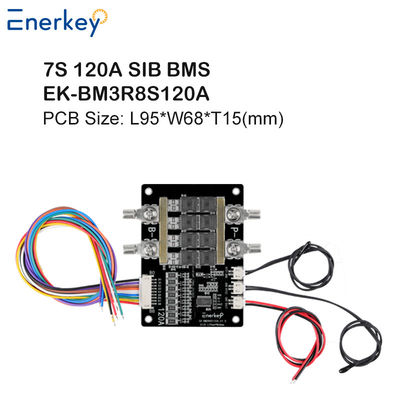

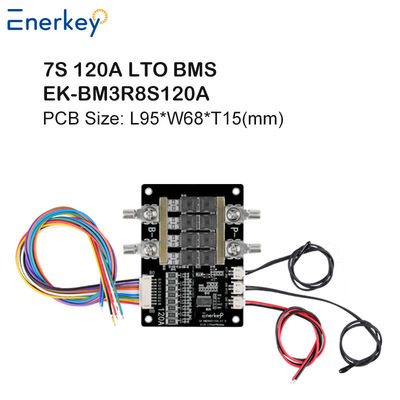

Enerkey 7S 120A All Lithium Smart BMS With Balancing Function Perfect for Solar Inverters & Medical Devices

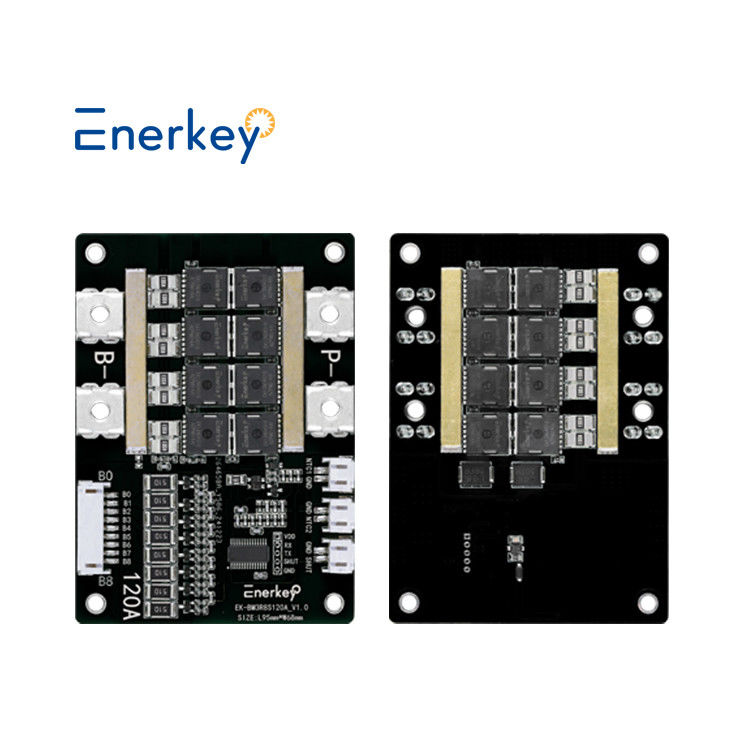

7S120A Lithium Battery Protection Board Product Introduction
Basic Parameters
Battery Configuration
Applicable to 7-series ternary lithium battery pack (nominal voltage 11.1V, full charge voltage 12.6V).
Support single-cell voltage range: 3.0V~4.25V (overcharge/over-discharge protection threshold adjustable).
Current Performance
Continuous Discharge Current: 120A (typical value), supports short-term peak current 200~300A (overcurrent protection trigger).
Charging Current: Support 125A (typical value).
Protection Function
Overcharge Protection: Triggered when single-cell voltage ≥4.25V, recovery voltage 4.15V.
Over-discharge Protection: Triggered when single-cell voltage ≤2.75V, recovery voltage 3.00V.
Overcurrent/short circuit protection: Triggered when discharge current ≥250A, automatically recovers after 300~800ms delay.
Temperature protection: Some models support high and low temperature monitoring (need to be customized).
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
