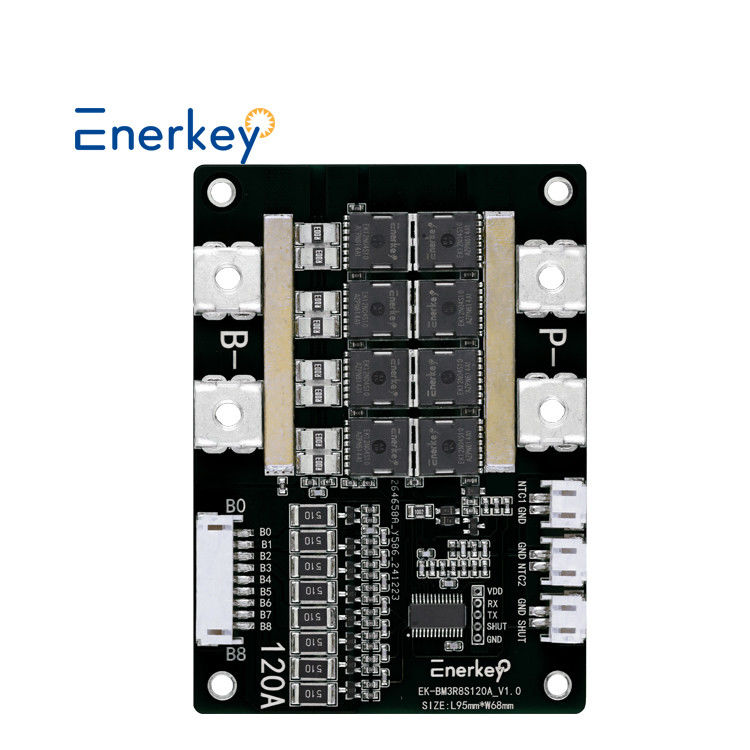

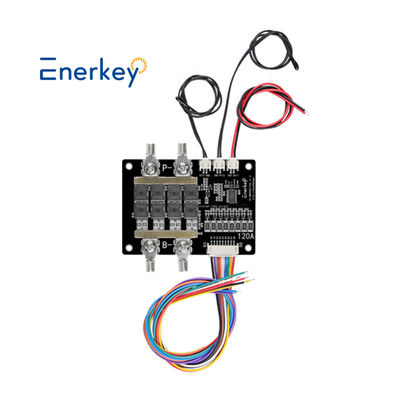

3S4S5S6S7S8S120A Smart Lithium Battery Protection Board: Redefine high energy efficiency and safety
Core function: Make every ampere "rock-solid"
Super strong current carrying capacity

120A continuous discharge : Provides strong power for power tools and energy storage equipment, with a peak current of up to 300A (2 seconds) .
Intelligent overcurrent protection : Automatically cut off the circuit when the current is ≥350A, and the short-circuit response is <1ms to ensure the safety of equipment and batteries .
Triple safety protection
Overcharge/over-discharge protection : Accurately monitor the voltage of a single cell (overcharge ≥4.25V, over-discharge ≤2.75V), and the recovery threshold error is <±0.05V .
Temperature fuse mechanism : Optional NTC temperature control module, automatic power off at high temperature, to eliminate the risk of thermal runaway .

Dynamic balancing technology
Passive balancing ±20mV: Eliminate battery pack voltage differences and extend overall life by more than 20%.

Technical highlights: Not only protection, but also intelligent management

Multi-protocol intelligent interconnection (customizable)
Bluetooth/CAN/RS485: View battery status in real time, and adjust protection parameters (such as current threshold, balancing strategy) with one click on the mobile phone.
Customized expansion: Support GPS positioning, inverter protocol docking, LED power display, to meet industrial-grade needs.

Industrial-grade structural designSame-port/split-port dual versions: Same-port design: Integrated charging and discharging interface, simple wiring, suitable for 120A high-power scenarios.
Split-port design: Independent charging and discharging circuit, balancing efficiency increased by 30%, suitable for long-term energy storage systems.
Triple-proof PCB coating: dustproof, moisture-proof, corrosion-resistant, no fear of -40℃~85℃ harsh environment.
Ultra-low energy consumption
Static power consumption ≤33μA: standby time increased by 50%, say goodbye to ineffective power consumption.

Application scenario: born for "extreme challenges"
Power equipment: electric drills, electric motorcycles, drones, explosive power instantly pulled full.
Energy storage system: solar energy storage cabinets, home emergency power supply, stable and worry-free endurance.
Industrial field: AGV robots, medical equipment, double guarantee of safety and efficiency.

Why choose us?
Customized service: support OEM/ODM, parameters and functions are customized on demand.
The king of cost-effectiveness: with the same performance, the price is 15%~20% lower than that of competing products. Lifetime technical consultation: Professional team responds 24/7 to help you solve application problems.
Upgrade your battery system now and experience the perfect balance between "safety" and "performance"!

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
