Technical Parameters

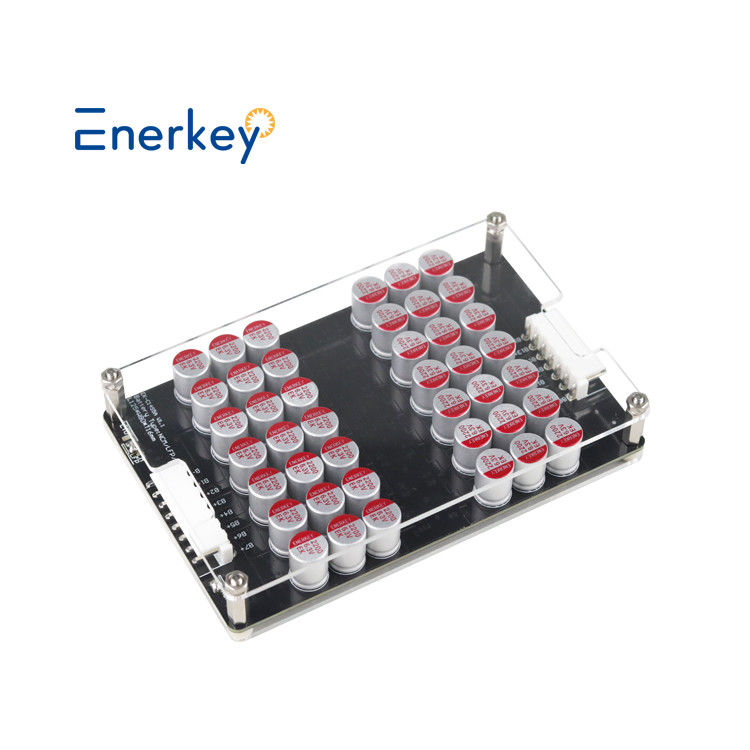

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer with Acrylic Plate
Product model	EK-C10S5A	EK-C12S5A	EK-C14S5A
Product strings	10S	12S	14S
Suitable strings	8-10S	9-12S	9-14S

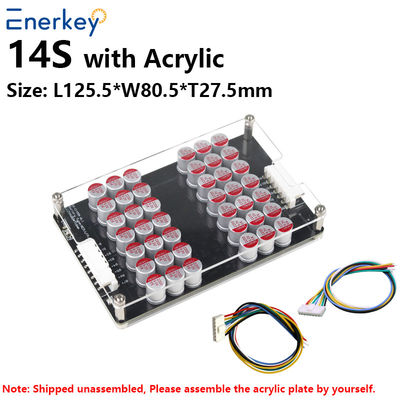

Product Size(mm)	L114.5*W70.5*T27.5	L137.5*W70.5*T27.5	L125.5*W80.5*T27.5
Weight with box	0.24kg	0.26kg	0.29kg
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Voltage equalization accuracy	5mV (typical value)
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Under voltage protection Start balancing voltage	NCM/LFP version: 2.835V
	LTO version: 1.89V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃

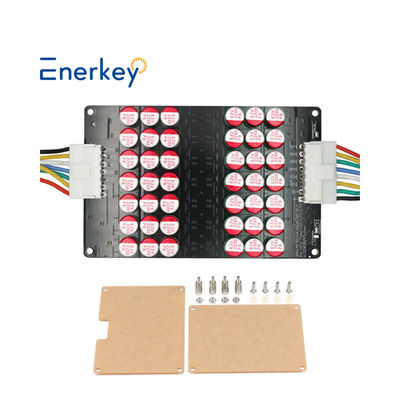

Packing List

 Wire connect

A single EK-C14S5A supports the use of 9 and 10 and 11 and 12 and 13 and 14 string battery packs. The wiring method is as follows:



EK-C14S5A supports cascading battery packs. Fox exmple, 2pcs of 14s cascade to 27s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.

The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
