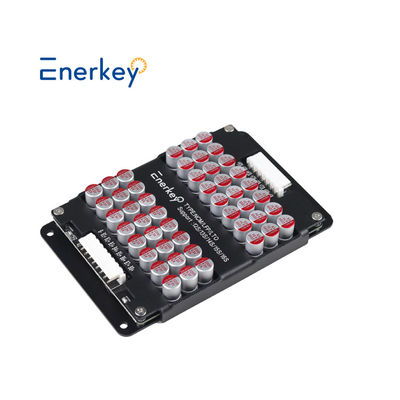

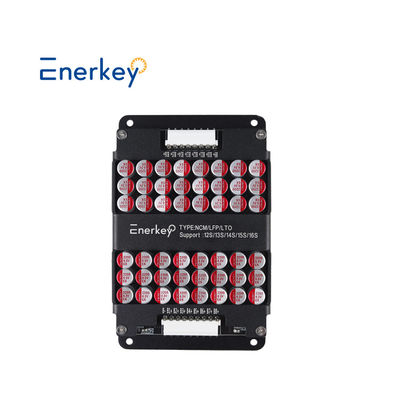

nerkey 16S 5A Lifepo4 Li-ion Capacitor Active Equalizer Balancer with Aluminum Shell for for Golf Carts

Brand Name:	Enerkey
Model Number:	EK-C16S5A
MOQ:	20 pieces
Price:	$46.5-$47.5
Packaging Details:	Strong paper box +EVA Foam
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001/CE/ROHS

Product Name:

16S 5A Active Balancer With Aluminum Alloy Shell

Copper Thickness:

Application:

RV Energy Storage, Home Energy Storage

Board Thickness:

1.6mm

Battery Type:

Lithium/Lifepo4/Lto Battery Pack

Battery Strings:

12s-16s

Base Material:

Surface Finishing:

Lead-free HASL

Keyword:

Lithium Lipo Battery Energy Active Equalizer

Usage:

Lithium Battery Pack

Product Size:

L145.5*W96.5*T19.5

Weight With Package:

0.42kg

Supply Ability:

1000000pcs per day

Product Description

Product Description

Core performance ‌
‌Voltage adaptation‌: 40.8V–50.4V working voltage, perfect match for 12S ternary lithium/lithium iron phosphate battery pack
‌Lossless balancing‌: 5A bidirectional energy transfer current, capacitor charge and discharge efficiency ≥92%
‌Intelligent start and stop‌: 10mV voltage difference threshold automatic activation, ≤5mV deep sleep
‌Industrial protection‌: IP65 aluminum alloy shell, -40℃~125℃ wide temperature range operation

Capacitor technology innovation‌
‌Automotive grade capacitor matrix‌
Adopt ELNA non-polar electrolytic capacitor, resistant to 125℃ high temperature and 2000 hours life
Chenyuan CCT high-voltage chip capacitor supports 5KV surge protection

‌Three-channel independent control‌
Synchronous management of 3 groups of battery clusters, series/parallel topology adaptive
Dual-color LED real-time display of balancing progress and fault code

Safety protection system‌
Reverse connection/short circuit/overtemperature triple protection mechanism
As low as 35mΩ capacitance design to reduce energy loss

Industrial scenario verification‌
Application field Solution Efficiency improvement
‌Electric bus‌ Repair battery pack pressure difference Cycle life + 40%
‌Photovoltaic energy storage station‌ 100kWh+ battery cluster dynamic balancing Capacity attenuation ↓ 30%
‌Data center‌ UPS power supply active protection Failure rate ↓ 50%

‌Technical support‌
Wiring diagram
1 year warranty + 48 hours emergency response

nerkey 16S 5A Lifepo4 Li-ion Capacitor Active Equalizer Balancer with Aluminum Shell for for Golf Carts 0

nerkey 16S 5A Lifepo4 Li-ion Capacitor Active Equalizer Balancer with Aluminum Shell for for Golf Carts 1

nerkey 16S 5A Lifepo4 Li-ion Capacitor Active Equalizer Balancer with Aluminum Shell for for Golf Carts 2

nerkey 16S 5A Lifepo4 Li-ion Capacitor Active Equalizer Balancer with Aluminum Shell for for Golf Carts 3

nerkey 16S 5A Lifepo4 Li-ion Capacitor Active Equalizer Balancer with Aluminum Shell for for Golf Carts 4

Technical Parameters

Fit Capacitive Active Balancer with Aluminum Shell(5A 4S-16S)
Product model	EK-C4S5A	EK-C8S5A	EK-C12S5A	EK-C16S5A
Battery string	3/4S	6/7/8S	9/10/11/12S	12/13/14/15/16S
Size(mm)	L86.1W50.1T19.5	L96.5W89.5T19.5	L141.5W89.5T19.5	L145.5W96.5T19.5
Weight with box	0.12kg	0.22kg	0.32kg	0.42kg
Suitable Battery type	NCM / LFP (Li-ion/Lifepo4)	NCM / LFP/LTO (Li-ion/Lifepo4/Lto)
Suitable Battery capacity	30AH-300AH
Base material/Surface treatment	FR-4/HASL
Single cell voltage operating range	Li-ion/Lifepo4:2.7-4.2V LTO:1.8-4.2V
Undervoltage protection sleep voltage	Li-ion/Lifepo4:<2.7V LTO:<1.8V
Equilibrium method	Patented (patent number: ZL 2019 1 1259513.3) balancing architecture Fit capacitor method, the entire battery pack is balanced at the same time.
Equilibrium current	0.1V voltage difference is 1A balancing current, voltage difference is proportional to balancing current, maximum allowable operating current is 5.5A
Whether need an external power supply	No external power supply is required, relying on the internal energy transfer of the battery to achieve balance of the entire group
Voltage equalization accuracy	5mV(Typical value)
Quiescent current	0.1mV(Typical value)
LED indicator	1. LED steady on, balanced working 2. LED off, undervoltage sleep
Balance cascading	Support balanced cascading for battery packs, for example, It can cascade for 11S, 24S, 36S, 48S.....and so on.
Accessories	18awg Therminal wire 40cm
Work temperture	-10℃ - +60℃
Feature	24H Non-stop overall balancing, supports cascading, undervoltage protection, ultra-low loss, etc.
Application	Outdoor energy storage, home energy storage, industrial and commercial energy storage, RV modification, low-speed vehicles, solar photovoltaic, etc., temporarily used for battery balancing maintenance, repair, etc.

Packing List

nerkey 16S 5A Lifepo4 Li-ion Capacitor Active Equalizer Balancer with Aluminum Shell for for Golf Carts 5

Wire connect

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
