Diode Module

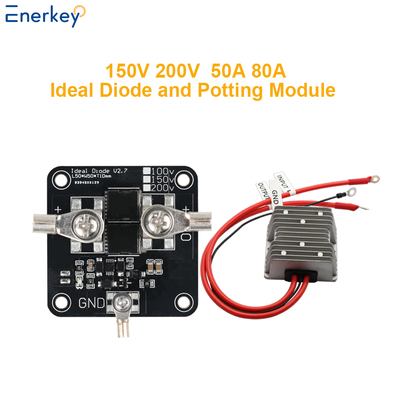

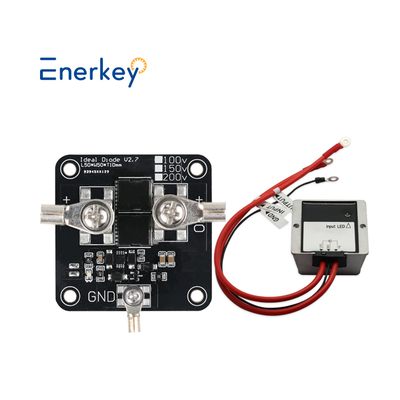

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection

All Category

Heavy-duty Vehicle Smart Active Balancer BMS

Mrs. Kiwi Xiao

kiwi@enerkey.cn

+8615387469240

Enerkey-Tech

Contact Now

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection

Brand Name:	Enerkey
Model Number:	EK-iD150V/200V80A
MOQ:	10pieces
Price:	$20.5-$26.5
Packaging Details:	Strong paper box +EVA Foam
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001/CE/ROHS

Product Name:

150V/200V 80A Ideal Diode

Copper Thickness:

Application 1:

Solar Panels Prevent Backpouring

Board Thickness:

2.0mm

Application 2:

Rv Modification

Allowable Operating Voltage Range:

100-150V/200v

Static Working Current:

0.6-1.5mA

Allowable Continuous Current:

0-80A

Base Material:

Aluminum Substrate

Peak Starting Current:

Product Size:

L50xW50xT17mm

Weight With Package:

0.35kg

Supply Ability:

10000pcs per day

Product Description

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection

Product Description

Key Selling Points

"Zero-Loss Intelligent Switching"

• Utilizes the Pai8150x series controller, paired with an ultra-low internal resistance NMOS, achieving a forward voltage drop of ≤20mV at 80A, saving 92% less energy than traditional Schottky diodes.

• Automatic switching speed of <1μs, supports dual voltage ranges of 150V/200V, and provides redundant power supply with zero interruptions.

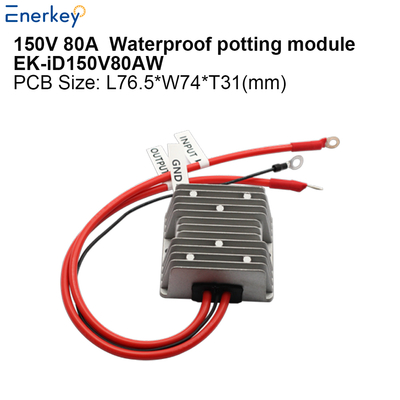

"Armor-Grade Waterproof Protection"

• Three-layer protection system: silicone encapsulant (-60°C to 200°C) + aluminum alloy heat sink housing + nano-hydrophobic coating.

• IP68 certified (72-hour water immersion test), 10G vibration resistance, and 2000 hours of salt spray corrosion resistance.

Pain Point Solutions for Scenario Applications

▶ Photovoltaic Energy Storage System

"Was a 15% power loss caused by a late-night battery backflow?" → Ideal diodes block reverse current, increasing solar panel utilization to 99.7%

▶ Industrial Power Redundancy

"Was a production line power outage costing millions?" → Dual power supply automatically switches with zero delay, supporting 80A continuous current without derating.

▶ Outdoor communication base station

"Circuit board corrosion repair after heavy rain?" → The potted module withstands 3 meters of water pressure and has been tested in hot and humid environments for 5 years with zero failures.

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection 0

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection 1

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection 2

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection 3

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection 4

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection 5

Technical Parameters

Enerkey Ideal Diode Module 150V 200V 80A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD150V80A	EK-iD200V80A
Working voltage range	100-150V	100-200V
Product Size(mm)	L50xW50xT17	L50xW50xT17
Weight with box	0.35kg	0.37kg
MOS quantity	2	2
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO
Continuous current	80A	80A
Peak starting current	100A	100A
Quiescent operating current	0.6-1.5mA
Copper foil thickness	3.0 oz
PCB material	Aluminum plate
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required
Accessories	Terminal lug*3; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3
Operating Temperature	-40℃ ~ +60℃

Size & Packing List & Wire diagram

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection 6

Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems. The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
5. The waterproof potting module has a thickened radiator, which has higher heat dissipation efficiency and lower continuous current heating. It is suitable for modification enthusiasts!

150V 200V 80A High Current Ideal Diode Module with Potting Module for Solar Anti-reverse Charging Current Protection 7

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
