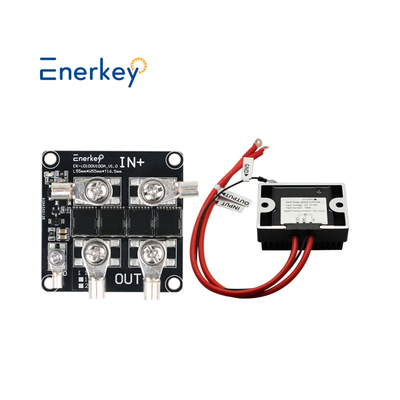

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module

Brand Name:	Enerkey
Model Number:	EK-iD200V100A
MOQ:	10pieces
Price:	$28.9-$32.05
Packaging Details:	Strong paper box +EVA Foam
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001/CE/ROHS

Product Name:

200V 100A Ideal Diode Module

Copper Thickness:

Application 1:

Solar Panel And Battery Charging Anti-backfilling

Board Thickness:

2.0mm

Allowable Operating Voltage Range:

12-200V

Static Working Current:

0.1-1.5mA

Allowable Continuous Current:

0-100A

Base Material:

Aluminum Substrate

Peak Starting Current:

Product Size:

L55xW55xT17mm

Weight With Package:

0.4kg

Supply Ability:

10000pcs per day

Product Description

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module

Product Description

Key Product Features

[Military-Grade Reliability]

▶ 200V withstand voltage/100A continuous current capability, AEC-Q101 automotive certified

▶ Ultra-low 0.5mΩ on-resistance (RDS(on)), 92% lower losses than traditional Schottky diodes

▶ Stable operation over a wide temperature range of -55°C to 175°C, MTBF > 100,000 hours

Technical Advantages:

▌Intelligent Switching Technology

• Ultra-fast switching response of <100ns, zero reverse recovery current (Qrr = 0)

• Integrated temperature compensation circuit to prevent thermal runaway

▌Fully Protected Architecture

◈ Built-in overvoltage protection (OVP) with ±40V surge protection

◈ Reverse polarity protection and short-circuit self-recovery

Application Scenario Guide

✓ New Energy Vehicles: On-Board Charger (OBC) Reverse Connection Protection

✓ Industrial Power Supply: Redundant Power Supply ORing Circuit

✓ Photovoltaic Systems: String Inverter Bypass Module

Comparison with Traditional Solutions

Parameters This Product Standard Schottky diode

Conduction loss: 5W@100A, 60W@100A

Failure mode: Fail-safe short-circuit

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module 0

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module 1

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module 2

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module 3

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module 4

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module 5

Technical Parameters

Enerkey Ideal Diode Module 100V 150V 200V 100A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD100V100A	EK-iD150V100A	EK-iD200V100A
Working voltage range	12-100V	12-150V	12-200V
Product Size(mm)	L55xW55xT17	L55xW55xT17	L55xW55xT17
Weight with box	0.4kg	0.42kg	0.45kg
MOS quantity	4	4	4
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Continuous current	100A	100A	100A
Peak starting current	100A	100A	100A
Quiescent operating current	0.6-1.5mA
Copper foil thickness	2.0 oz
PCB material	Aluminum plate
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required
Accessories	Terminal lug*5; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3
Operating Temperature	-40℃ ~ +60℃

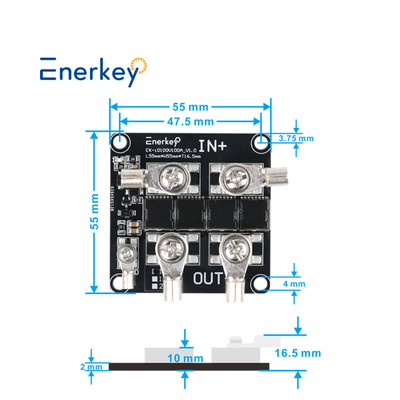

Size & Packing List & Wire Diagram

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module 6

Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems. The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
5. The waterproof potting module has a thickened radiator, which has higher heat dissipation efficiency and lower continuous current heating. It is suitable for modification enthusiasts!

Ideal Diode 200V100A Continue Large Current Double Power Supply Anti-shifting Anti-mutual Charging Module 7

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

* We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

* Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

* Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

* If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

* Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

* We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

* Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

* We have 7x24 hours online service, Please leave us a message online.

* You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
