Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection

Brand Name:	Enerkey
Model Number:	EK-iD100V/150V/200V150A
MOQ:	50pieces
Price:	$30.5-$38.8
Packaging Details:	Strong paper box +EVA Foam
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001/CE/ROHS

Product Name:

100V150V200V 150A Ideal Diode

Copper Thickness:

Application 1:

Battery Charging Anti-backfilling

Board Thickness:

2.0mm

Application 2:

DC Power Supply And Solar Photovoltaic

Allowable Operating Voltage Range:

30-200V

Min. Hole Size:

0.65mm

Allowable Continuous Current:

0-150A

Base Material:

Aluminum

Surface Finishing:

Lead-free HASL

Product Size:

L80*W56*T15mm

Weight With Package:

0.11kg

Supply Ability:

10000pcs per day

Product Description

Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection

Product Description

Features:

1. Positive high voltage ideal diode controller.This provides a lower loss path than schottky diodes and provides a more efficient solution for high-power applications, saving valuable circuit board space by reducing the need for cooling.

2. Principle of ideal diode:

The input and output are equivalent to diodes.When the output voltage is detected to be higher than the input, the output is immediately shut down. The detection value is millivolt level, and the response speed is very fast.

Purpose: to replace ordinary large current diode, ideal choice of parallel solar panels, parallel use of batteries of different capacity, and double power installation

Performance introduction:

Allowable working voltage range: 30-100V/150V/200v

Static operating current: 0.6-1.5 mA, negligible for the whole system.

1. This version is an improved version, and it will not burn the module even if the anode and cathode are connected backwards! Greatly improved installation safety performance!

2. Ideal diode refers to the diode with ultra-low internal resistance as its name implies. The conducting pressure drop of ordinary diode is more than 0.6v, while the conducting pressure drop of ideal diode is almost negligible.

3. Ideal diode cannot be used for rectification circuit!

Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection 0

Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection 1

Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection 2

Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection 3

Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection 4

Technical Parameters

Enerkey Ideal Diode Module 100V 150V 200V 150A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD100V150A	EK-iD150V150A	EK-iD200V150A
Working voltage range	30-100V	30-150V	30-200V
Product Size(mm)	L80W56T15	L80W56T15	L80W56T15
Weight with box	0.1kg	0.11kg	0.12kg
MOS quantity	5	5	5
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Continuous current	150A
Peak starting current	150A
Quiescent operating current	<0.5mA
Copper foil thickness	2.0 oz
PCB material	Aluminum plate
On-going internal resistance	NA
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required
Accessories	Terminal lug*9; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3
Operating Temperature	-40℃ ~ +60℃

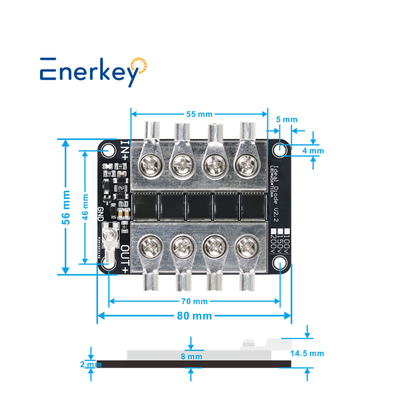

Size & Packing List & Wire Diagram

Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection 5

Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.

The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.

4. This ideal diode module cannot be used in rectifier circuits!

Enerkey 100V 150V 200V 150A Ideal Diode Module Controller For Electric Car Battery Front-End Anti-backflow Protection 6

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
