Smart Active Balancer

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

All Category

Heavy-duty Vehicle Smart Active Balancer BMS

Mrs. Kiwi Xiao

kiwi@enerkey.cn

+8615387469240

Enerkey-Tech

Contact Now

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Brand Name:	Enerkey
Model Number:	EK-24S20EB
MOQ:	500 pieces
Price:	$188-$228
Packaging Details:	Strong paper box +EVA Foam
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001/CE/ROHS

Product Name:

20A 2s-24s Smart Active Balancer With Bluetooth

Copper Thickness:

Application:

High-power Energy Storage, Base Station Backup Power Supply

Board Thickness:

1.6mm

Battery Type:

Lithium/Lifepo4/Lto Battery Pack

Battery Strings:

2s-24s

Material:

FR-4 / HASL

Communication Port:

Bluetooth And CAN

Product Size:

L313 X W193 X T43mm

Weight With Package:

2.53kg

Supply Ability:

10000pcs per day

Product Description

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Product Description

Smart Active Balancer Equalizer 24s 12-72volt 20A max - NMC/ LFP - For Lithium Battery Packs

This equalizer is suitable for 2~24 series NCM/ LFP/ LTO battery packs with voltage acquisition and equalization functions. The equalizer works with a continuous 20A equalization current to achieve energy transfer, and the equalization current does not depend on the voltage difference of the series-connected cells in the battery pack. The voltage acquisition range is 1.5V~4.5V, and the precision is 1mV.

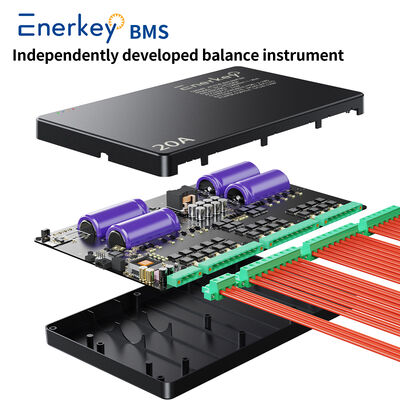

20A High-Current Active Balancing: Supercapacitor-based energy transfer, efficiency exceeding 90%, 5 times faster balancing speed
24-Series Full-String Monitoring: Millivolt-level voltage detection, real-time warning of abnormal batteries
Intelligent Dynamic Management: Automatic switching between charging/discharging modes, optimizing battery pack consistency
Military-Grade Protection: IP65 waterproof and dustproof, -20℃~60℃ wide temperature range operation, zero safety hazards

Why Choose Us?
50%+ Extended Lifespan: Reduced battery degradation through balancing management, 30%-50% increase in cycle life
Enhanced Safety: Over-voltage/over-current/short-circuit/temperature quadruple protection, eliminating thermal runaway risks
Improved Energy Efficiency: Active balancing reduces energy waste, increasing system efficiency by 15%-20%
Intelligent Operation and Maintenance: Supports data export and remote diagnostics, reducing maintenance costs by 40%

Application Scenarios
Electric Vehicles: Solves the problem of reduced range caused by poor battery pack consistency
Energy Storage Systems: Improves charging and discharging efficiency and extends the lifespan of energy storage equipment
Electric Bicycles: Intelligent balancing of dual battery packs, preventing overcharging/over-discharging of individual cells
Industrial Equipment: High-reliability battery management, suitable for harsh environments

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 0

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 1

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 2

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 3

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 4

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 5

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 6

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 7

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 8

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 9

Technical Parameters

Product model	20A Smart Active Balancer for 2-24s (EK-24S20EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~20A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 24-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	High-power energy storage, base station backup power supply,Solar power station

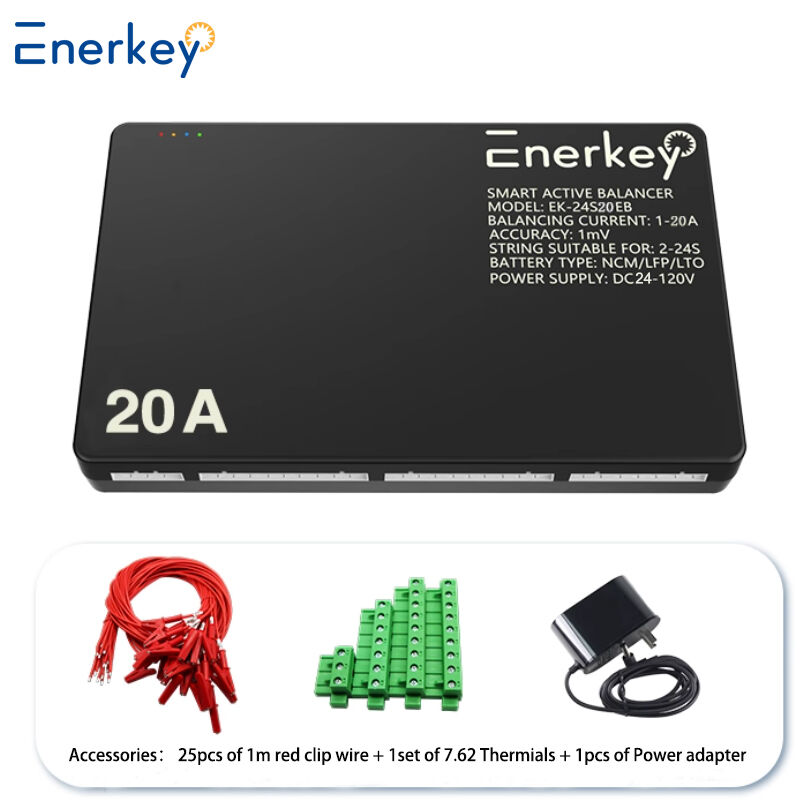

Packing List

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 10

Part Name	Q'ty
20A Smart Active Balancer	1pcs
1m 16AWG Clip Wire	25pcs
3pin 7.62Pitch Thermial	1pcs
7pin 7.62Pitch Thermial	1pcs
9pin 7.62Pitch Thermial	1pcs
DC Adapter	1pcs

Wire Diagram

24S Wiring Diagram

EK-24S20EB supports 2S-24S. The following figure shows how to install and connect cables to the 24S battery string:

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 11

17S Wiring Diagram

When less than 24 battery strings are connected in series, empty pins are suspended. The following uses 17S as an example.

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 12

3S Wiring Diagram

If the battery string has a total voltage lower than 24V, you need to connect 24V to 120V DC power supplies.

The following uses 3S as an example:

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 13

40S Cascade Wiring Diagram

EK-24S20EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange".

The following uses the 40S as an example to describe how to install and connect cables:

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle 14

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

If you have any advices or requests, Warmly welcome your consulting.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
