No need to worry about battery consistency anymore! All cells are in balancing, always on balancing !

Transformer push-pull rectifier feedback type, real-time, dynamic, synchronous, energy transfer type.



The differential voltage determines the balance current, 1-10A. Final balance accuracy, within 5MV (approx.).

No differential voltage start-up requirement, no external power supply required, just connect the wire and start balance.



All batteries are balanced synchronously, regardless of whether the differential voltage batteries are adjacent to each other.

Temperature protection, undervoltage protection and automatic sleep function are available.

Plastic case package, no heat, good insulation, easy to install.





The switches are all set to two positions.



On: Refers to turn on the automatic sleep function.

When the battery is well balanced, it will automatically hibernate.
When charging or discharging, when the voltage changes, the equalization will be automatically turned on.



Off: Turn off the auto sleep function.

The equalizer is always in the state of opening equalization and will never sleep.

Of course, if it is under voltage, it will sleep.



Technical Parameters

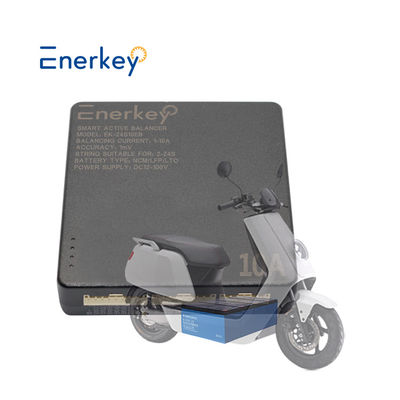

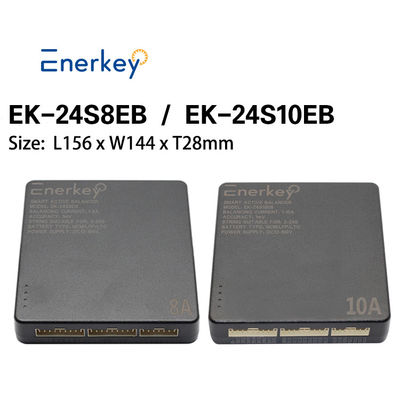

Product model	10A Smart Active Balancer for 2-24s (EK-24S10EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~10A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle

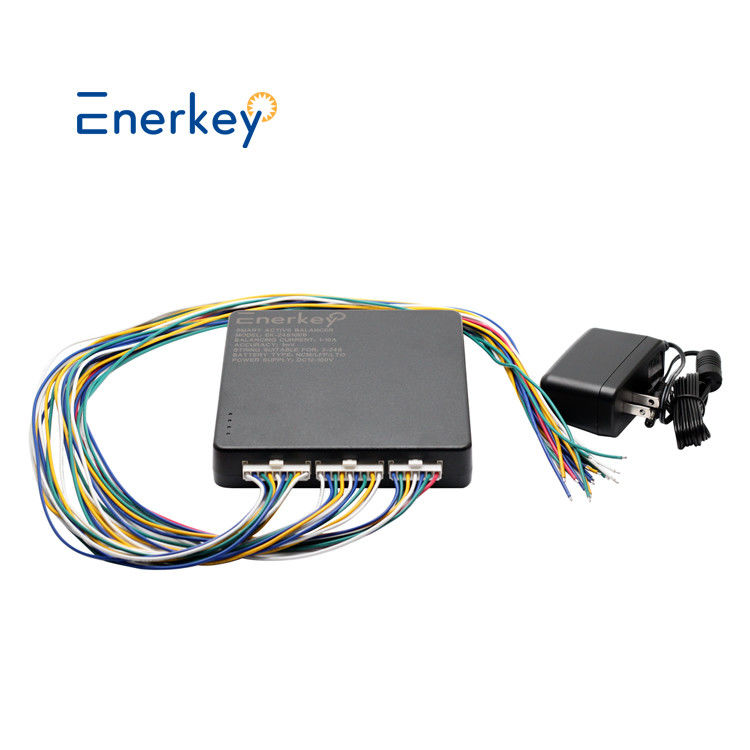

Packing List

 Use Manual

APP Installation and Use

APP custom settings:1-10A, because of constant current and constant voltage technology, The balanced current is independent of the battery pressure difference.

The APP has Android and IOS version. Password: "123456"

1). IOS users download the APP : Search "Enerkey" in App Store to download

2). Android users download the APP:“http://www.enerkey.cn/” download

3). According to your battery type and battery string number, change the parameters in APP

4). In the APP, you can view the total voltage, average voltage,naximum voltage difference of the battery pack,and the voltage and line resistance information of each battery.There is also an alarm function to detect the equilibriumtemperature, MOS temperature,and battery pack temperature in real time.



Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
