An Active Balancer Module (Active Balancer) is a unit which will “Actively” balance the voltage between 2 or more cells connected in series. When charging/discharging cells connected in series,

each cell will behave differently depending on their internal resistance which will result in the being unbalanced. The more you charge/discharge the battery bank, the State of Charge (SOC) and voltage variance between the cells will increase,

resulting in 1 cell having a greater SOC, while another cell within the same bank having a lower SOC. The problem with this is the potential for the cell with the higher SOC being overcharged,

while the cell with the lower SOC being over discharged and therefore those cells experiencing a greater derogation in comparison to the other cells.

An Active Balancer will monitor and transfer current between cells within a bank. Cells with a higher SOC, to cells with a lower SOC ensuring they are better balanced and drastically reducing the chance of one particular cell in the bank being over charged/discharged.



Technical Parameters

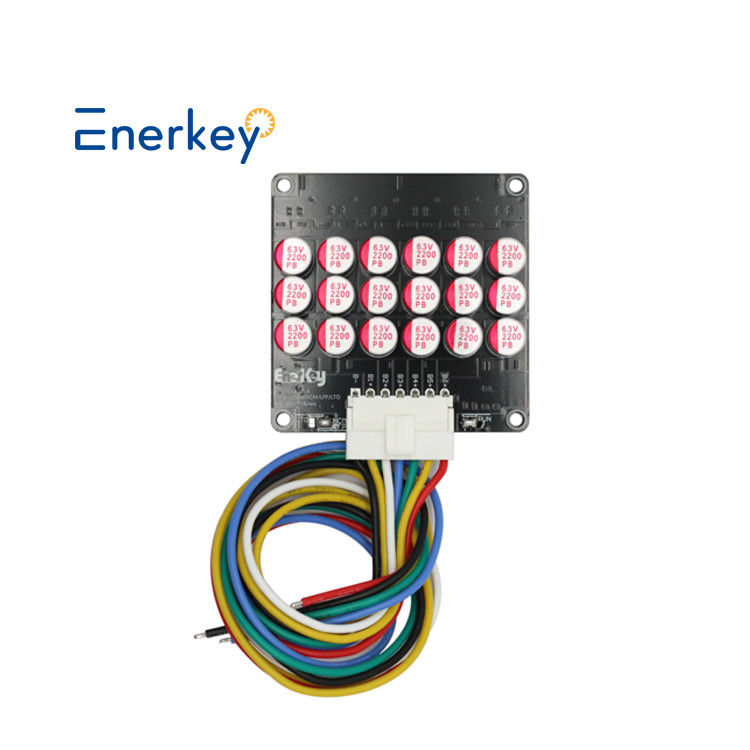

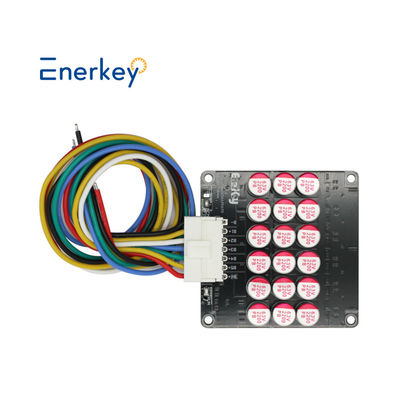

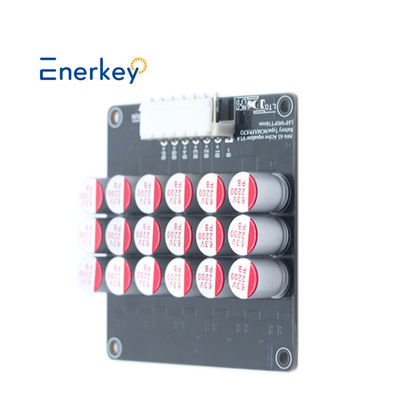

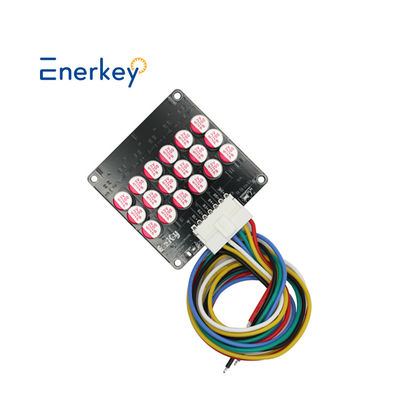

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product model	EK-C6S5A	EK-C7S5A	EK-C8S5A
Product strings	6S	7S	8S
Suitable strings	4-6S	5-7S	6-8S
Product Size(mm)	L69*W69*T16	L80*W69.5*T16	L91*W70*T16
Weight with box	0.16kg	0.18kg	0.19kg
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Voltage equalization accuracy	5mV (typical value)
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Under voltage protection Start balancing voltage	NCM/LFP version: 2.835V
	LTO version: 1.89V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃





Packing List

 Wire connect

A single EK-C6S5A supports the use of 4 and 5 and 6 string battery packs. The wiring method is as follows:

EK-C6S5A supports cascading battery packs. Fox exmple, 2pcs of 6s cascade to 11s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
