Functions and features:

1) unlimited expansion: no limitation for the number and way of connection of the batteries;
2) Simple coordination: coordination group is simple: to allow different models of battery voltage directly with the same group, allows group of cells with some differences in performance;
3) dynamic equilibrium: either charge or discharge or static set, balance the batteries automatically.
4) parallel balanced: all high-voltage batteries will transfer to all low-voltage batteries;
5) no pressure drop in series:the balanced modules are connected in parallel on the battery, battery charge and discharge does not affect the work;
6) Power sharing: all single battery charge sharing, maximize the use of battery power the whole group;
7) high balance current : the peak current up to 5.5A, to allow continuous current 5A;
8) balanced with high precision: after balancing, the voltage difference of each cell is less than 5mV;
9) low loss of energy: when the balance of current is 5A,the efficiency is as high as 94% ;
10) wide application :applied for all types and sizes of lithium batteries and lead acid batteries.





Technical Parameters

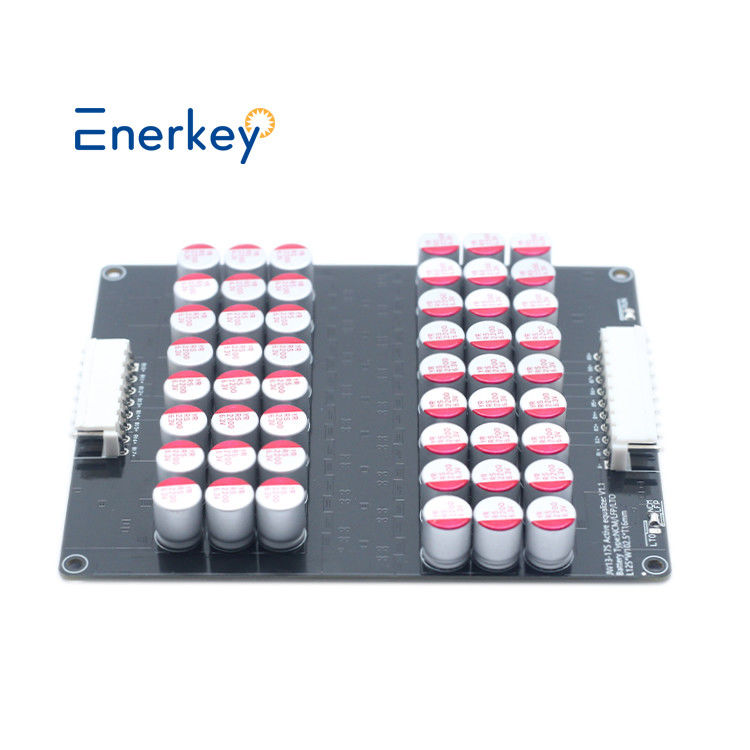

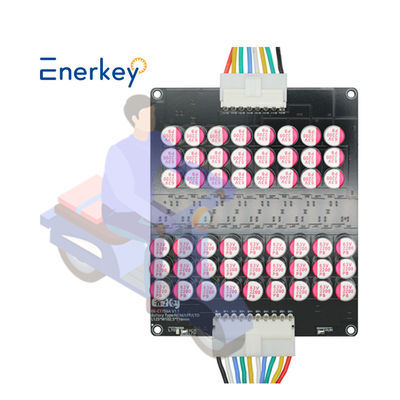

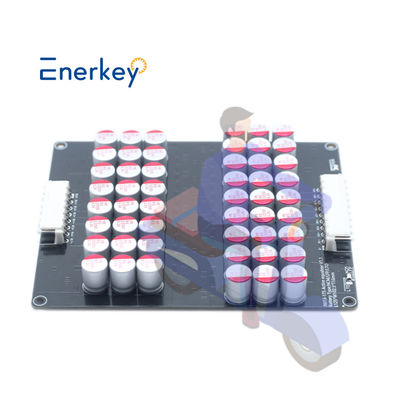

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product model	EK-C16S5A	EK-C17S5A	EK-C21S5A
Product strings	16S	17S	21S
Suitable strings	12-16S	13-17S	17-21S
Product Size(mm)	L125*W91*T16	L115*W102.5*T16	L145*W130*T18
Weight with box	0.32kg	0.33kg	0.39kg
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Voltage equalization accuracy	5mV (typical value)
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Under voltage protection Start balancing voltage	NCM/LFP version: 2.835V
	LTO version: 1.89V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃





Packing List

 Wire connect

A single EK-C17S5A supports the use of 13 and 14 and 15 and 16 and 17 string battery packs. The wiring method is as follows:



EK-C17S5A supports cascading battery packs. Fox exmple, 2pcs of 17s cascade to 33s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.

The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
