| Brand Name: | Enerkey |
| Model Number: | EK-iD200V150A |
| MOQ: | 10pieces |
| Price: | $40.5-$49.8 |

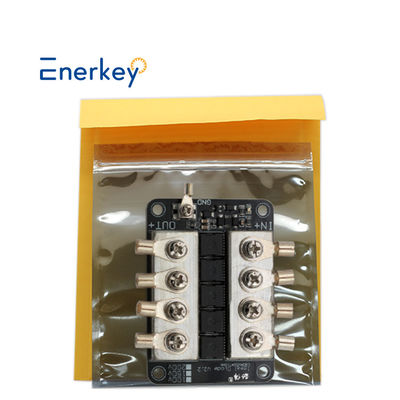

| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
High Power 200V 150A Ideal Diode Module Bridge Rectifier 150Amp Over-Current Capacity Low Voltage Drop For Solar panel
Ideal Diode - Basic Definition and Understanding
Understandably, this concept of an ideal diode might strike you as a bit abstract because, in reality, it doesn't exist in physical forms. However, it greatly facilitates the understanding and analysis of more realistic and imperfect, yet practical, types of diodes called Real Diodes.
To put it simply, if you think about an ideal diode, imagine a perfect one-way street for electric current that lets the current pass in the forward direction and entirely blocks it in the opposite direction. There's no traffic, no hindrances, and no energy loss.
For instance, consider a simple circuit with a battery and an ideal diode connected in series. When the diode is forward-biased (positive terminal of the battery is connected to the P-type material and the negative terminal to the N-type material), the diode perfectly conducts and the current passes through.
However, when the diode is reverse-biased (the battery terminals are switched), it completely blocks the current.
Signal detection: Ideal diodes can be used as signal detectors. By controlling the conduction and cutoff of current, the signal can be detected and analyzed, thereby protecting and controlling the circuit.
Basic components of light-emitting diodes: Ideal diodes are also the basic components of light-emitting diodes (LEDs). Light-emitting diodes are devices that can convert electrical energy into light energy and are widely used in lighting, indication, and display. By introducing special materials and structures into diodes, light emission and control can be achieved.
|

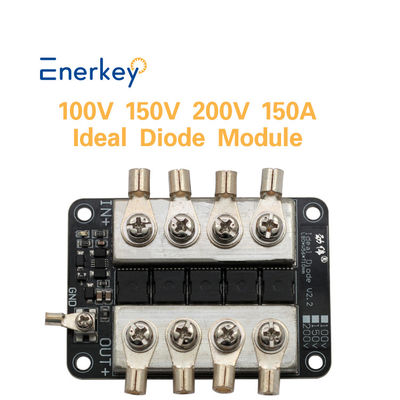

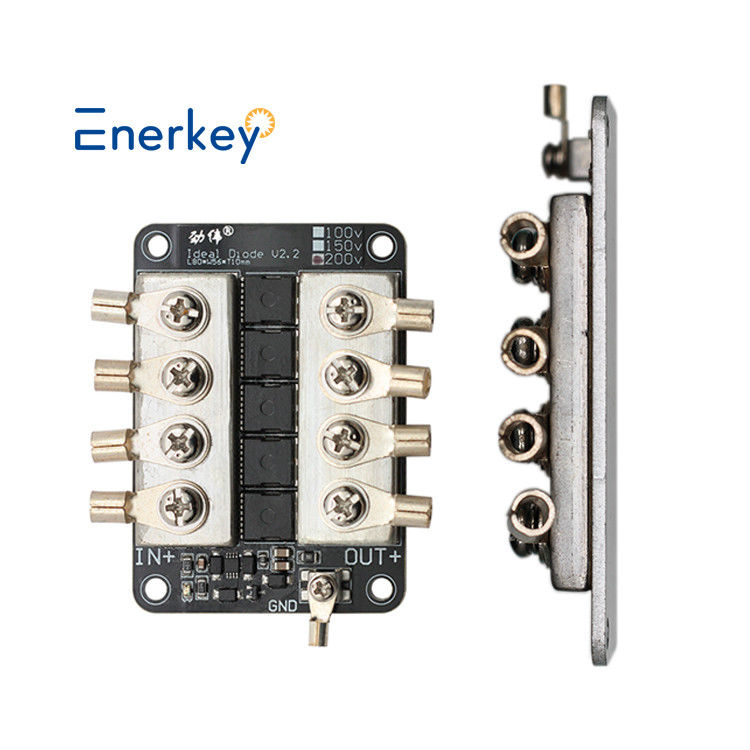

Enerkey Ideal Diode Module 100V 150V 200V 150A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
|
|||
| Product model | EK-iD100V150A | EK-iD150V150A | EK-iD200V150A |
|
Working voltage range
|
30-100V
|
30-150V |
30-200V
|
|

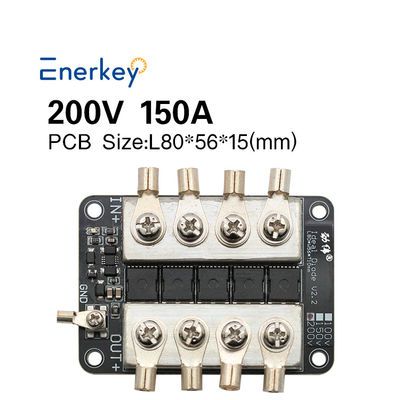

Product Size(mm)
|
L80*W56*T15
|
L80*W56*T15 |
L80*W56*T15 |
|
Weight with box
|
0.1kg
|
0.11kg |
0.12kg
|
| MOS quantity | 5 | 5 | 5 |
|
Battery Type
|
NCM/LFP/LTO
|
NCM/LFP/LTO |
NCM/LFP/LTO
|
|
Continuous current
|
150A
|
||
| Peak starting current | 150A | ||
|
Quiescent operating current
|
<0.5mA
|
||
|
Copper foil thickness
|
2.0 oz
|
||
|
PCB material |
Aluminum plate
|
||
| On-going internal resistance | NA | ||
| Working principle | The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast. | ||
|
Application
|
1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required |
||
| Accessories | Terminal lug*9; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3 |
||
|
Operating Temperature
|
-40℃ ~ +60℃
|
||
Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;
2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.
The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
