100V 150V 200V 50A Ideal Diode Module With Waterproof Potting Module For Solar Battery Anti-Backflow
What values would an ideal diode read?
Diode test analysis. A good forward-based diode displays a voltage drop ranging from 0.5 to 0.8 volts for the most commonly used silicon diodes. Some germanium diodes have a voltage drop ranging from 0.2 to 0.3 V.
What Is PCB Potting?
PCB potting is a method used to protect circuit boards (referred to in these contexts as the substrate) by filling a PCB enclosure with a liquid material called a potting compound or encapsulation resin.
The potting compound fills the device’s housing and, in most cases, covers the entire circuit board and its components, although in some cases it can be used to pot individual components.
Potting provides excellent abrasion resistance, as well as protection against heat, chemicals, impacts and other environmental hazards. Typical potting compound materials include epoxy, polyurethane and silicone compounds.
|

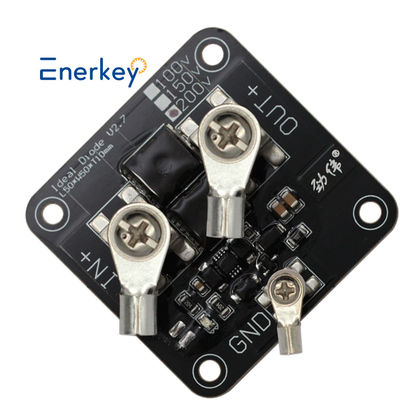

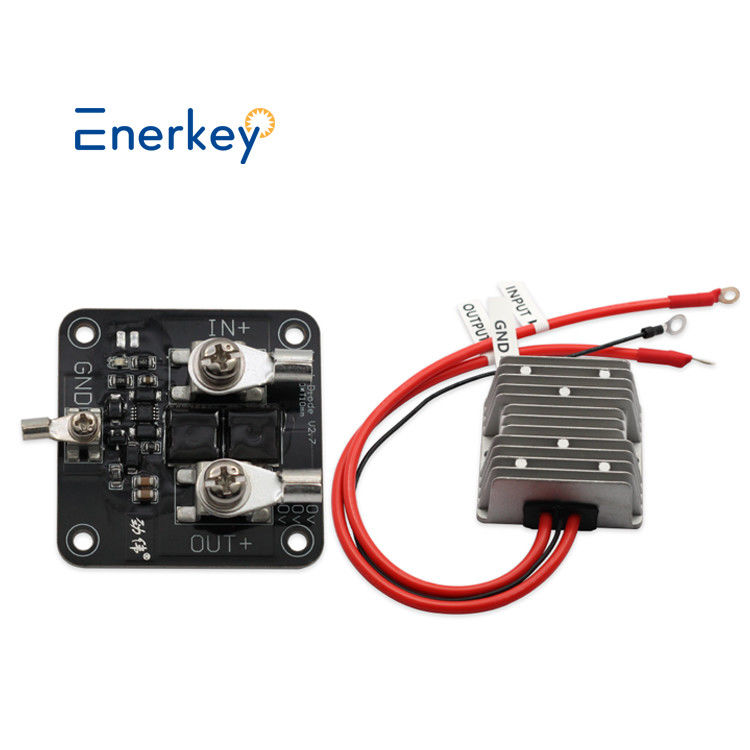

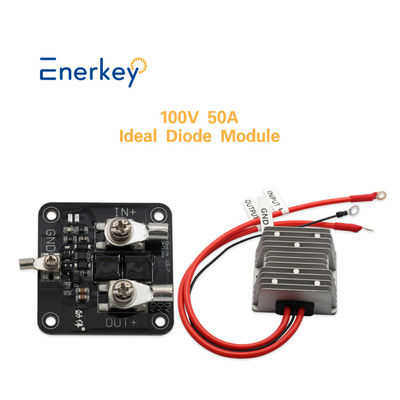

Enerkey Ideal Diode Module and Waterproof potting module 100V 150V 200V 50A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
|
|||
| Product model |
EK-iD100V50AW |
EK-iD150V50AW |
EK-iD200V50AW |
|
Working voltage range
|
30-100V
|
30-150V |
30-200V
|
|
Ideal Diode Size
|
L50xW50xT17mm
|
L50xW50xT17mm | L50xW50xT17mm |
| Potting Module Size | L74.5xW76.5xT31mm | L74.5xW76.5xT31mm | L74.5xW76.5xT31mm |
|
Weight with box
|
1.2kg/set
|
1.23kg/set |
1.25kg/set
|
| MOS quantity | 2 | 2 | 2 |
|
Battery Type
|
NCM/LFP/LTO
|
NCM/LFP/LTO | NCM/LFP/LTO |
|
Continuous current
|
50A
|
50A | 50A |
| Peak starting current | 100A | 100A | 100A |
|
Quiescent operating current
|
0.1-1.5mA
|
||
|
Copper foil thickness
|
2.0 oz
|
||
|
PCB material |
Aluminum plate
|
||
| Working principle | The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast. | ||
|
Application
|
1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required |
||
| Accessories for ideal diode |
Terminal lug*3; |
||
| Accessories for Potting Module | Pure copper silicone wire*3 IN+/OUT+ red silicone wire: 10AWG(5.5 sqm) 40CM Screw M5 GND black silicone wire: 16AWG (1 sqm) 40CM screw M6 |
||
|
Operating Temperature
|
-40℃ ~ +60℃
|
||
Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;
2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems. The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!

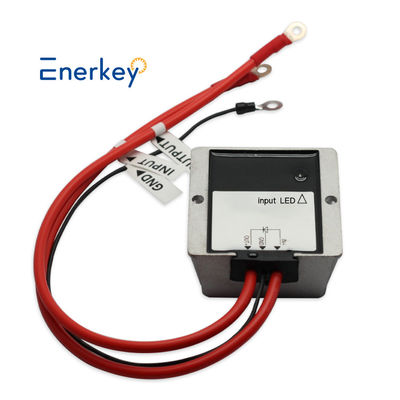

5. The waterproof potting module has a thickened radiator, which has higher heat dissipation efficiency and lower continuous current heating. It is suitable for modification enthusiasts!
