| Brand Name: | Enerkey |
| Model Number: | EK-B7S20A-NTC |
| MOQ: | 50pieces |
| Price: | $3.19-$4.04 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

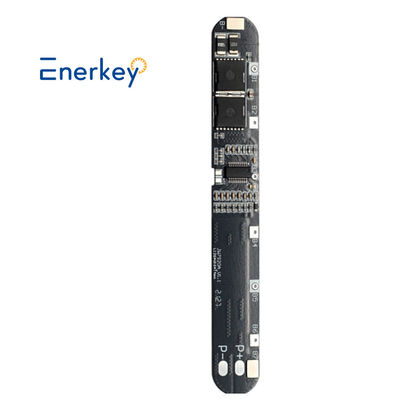

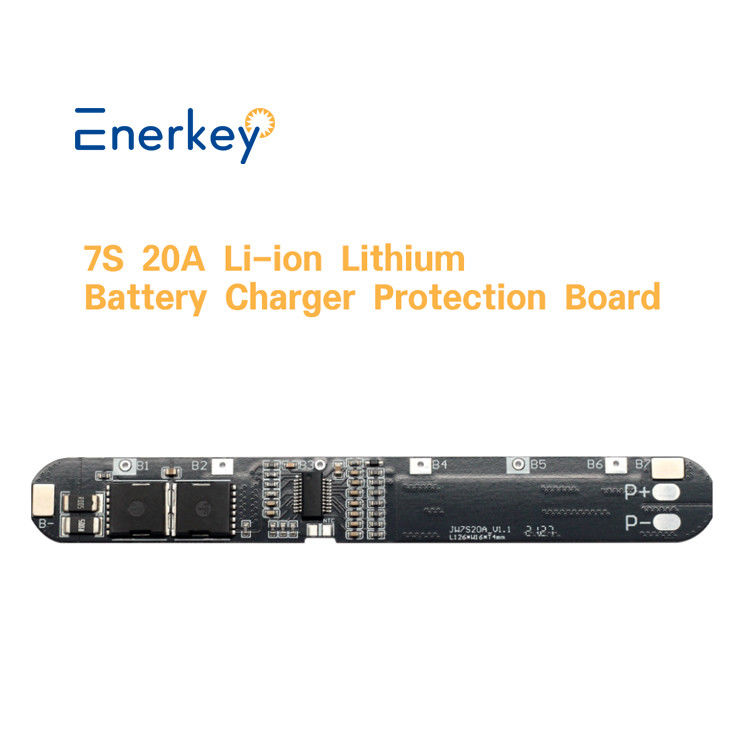

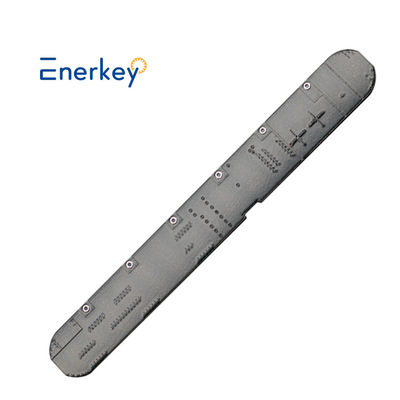

7S Battery BMS With NTC 24V 20A Lithium Li-ion 7S BMS for Base Station Energy Storage
7S 20A BMS 18650 Li-ion Lithium Battery protection device and charge balancer for lithium elements of type 18650 are essential for safely charging lithium-ion elements.
The model in question can manage and stabilize the charge of a group of 7 cells; monitors the individual voltage of the cells by limiting the current in the element to a charge level higher than another,
allowing the perfect balance of the voltages of the individual elements and interrupting the flow of current during the fault conditions, overheating and short circuit.
Specifically for robotic applications and devices that require an accumulating battery with a critical operating current.
SPECIFICATIONS:
Supported battery type: 7 cells 4.2V Lithium-ion battery
Overcharge protection function: Yes
Discharge protection function: Yes
Over current protection function: Yes
Balanced protection function: Yes
Over-current release: Disconnect the load release
Short circuit protection function: Yes(disconnecting the load can be recovered).
7 Way cable
Operating temperature: -40 ~ + 85 ° C
Lifetime:> 50000 hours
Dimensions: 126x16x4 mm
1 x Package Contains: 7S 20A BMS 18650 Li-ion Lithium Battery
|
Enerkey Lithium Battery Protection Board (BMS) 6S 10A 7S 20A 22.2V 24V 36V For Photovoltaic Solar Panels and Industrial Power & Home Energy Storage System and Electric Car and Scooter and Motorcycle
|
||
| Product model |
EK-B6S10A |
EK-B7S20A |
|
Suitable battery strings
|
6S
|
7S
|
| Product size(mm) | L107xW16xT3 | L126xW16xT4 |
| Weight with box | 0.02kg | 0.022kg |
| Rated discharge current | Typ 10A | Typ 20A |
| Peak starting current | TYP 18A | TYP 40A |
| Over current protection current | TYP 10A | TYP 40A |

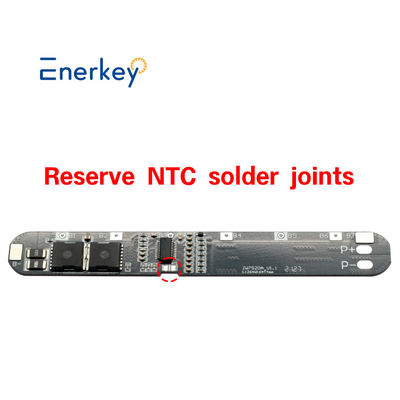

| Specical function | NTC(option) | |
| Suitable battery type | Lithium(NCM) | |
| Rated working voltage B+B- | Max 30V | |
|
P+P- input withstand voltage
|
Max 40V
|
|
|
Charging overcurrent protection value
|
Not limited
|
|
| Charge detection voltage | Min 4.2V / Typ 4.225V / Max 4.25V | |
|
Charge detection delay time
|
Min 0.5S / Typ 1S / Max 1.3S
|
|
|
Overcharge release voltage
|
Min 4.0V / Typ 4.005V / Max 4.05V
|
|
|
Discharge detection voltage |
Min 2.65V / Typ 2.7V / Max 2.75V
|
|
| Discharge detection delay time | Min 20ms / Typ 100ms / Max 150ms | |
| Discharge release voltage | Min 2.8V / Typ 2.95V / Max 3.05V | |
|
Conditions for lifting protection
|
Disconnect external load or charge self-recovery
|
|
| Overcurrent detection voltage | Typ 0.1V | |
| Overcurrent protection time | Min 0.7S / Typ 1S / Max 1.3S | |
| Conditions for lifting protection | Disconnect external load or charge self-recovery | |
| Short circuit protection current | Typ 40A | |
| Detection delay time | Min 150μS / Typ 250μS / Max 400μS | |
| Conditions for lifting protection | Disconnect external load or charge self-recovery | |
| Main circuit on-state resistance | Typ 5mΩ | |
| Normal working current consumption | Typ 10μA / Max 15μA | |
| Current consumption during sleep | Max 2.5μA | |
|
Operating Temperature
|
-40℃ ~ +85℃
|
|
Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
