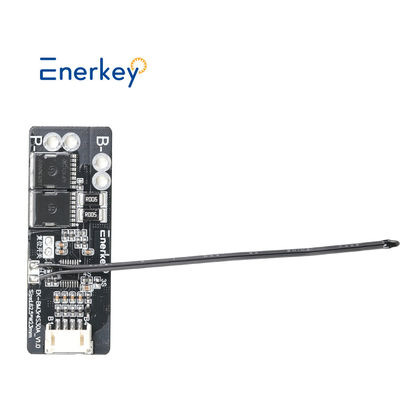

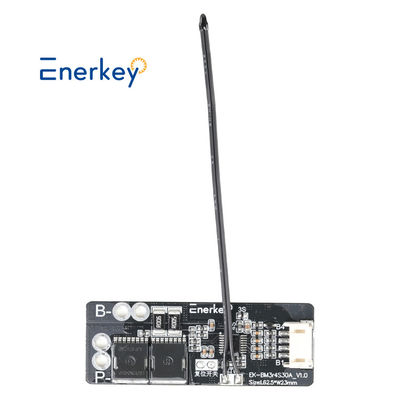

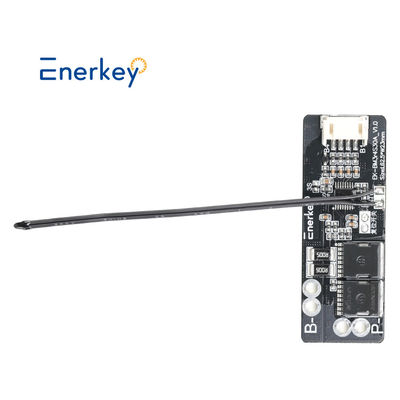

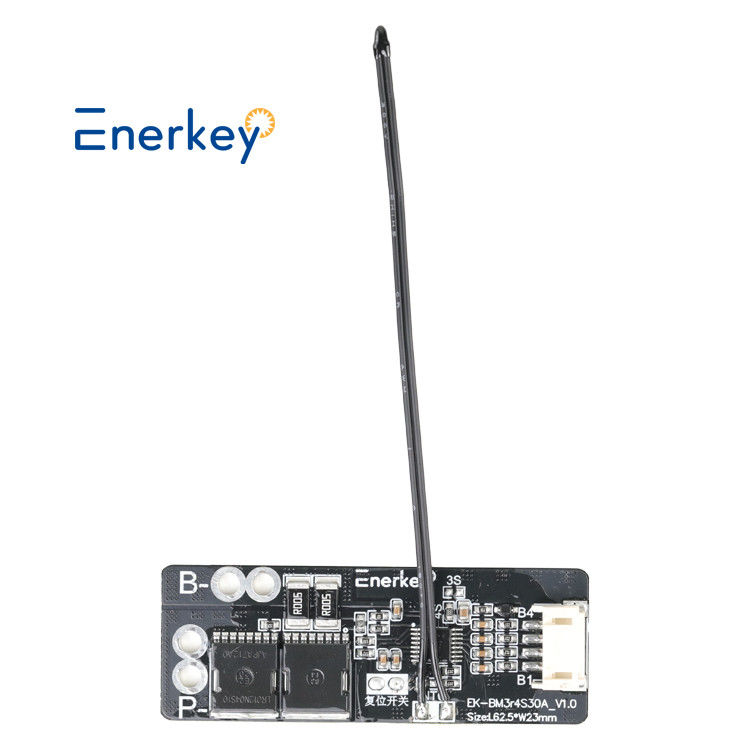

This lithium battery protection board (EK-BM3r4S30A) adopts 3S and 4S integrated solutions. The required number of strings can be flexibly selected according to the wiring diagram provided by our company.
It is mostly used in the battery packs of electric scooters, electric bicycles, power tools, car washers, small household appliances, model aircraft and other products. Mainly plays the role of protecting the battery pack.
1 Overcharge detection voltage: 4.25 ± 0.025V
2. Overcharge release voltage: 4.15 ± 0.05V
3. Over discharge detection voltage: 2.70 ± 0.05V
4. Over discharge termination voltage: 2.95 ± 0.1V
5. Overcurrent: 20-25A
6. Working current: typical: 25A, Max: 30A
7. Termination conditions:the release of protection condition then automatic recovery, without activation (optional charger to activate)
8. Main functions: the overcharge protection function, overdischarge protection, short-circuit protection, over current protection.
9. Working temperature: -40~+85 degrees (high temperature environment and please strengthen radiating)
10. Connection: welding output
11. Module size: L62.5xW23xT7.3mm
Applications:
The protective board can be used as the nominal voltage of 14.4V, 14.8V, 16.8V four series of polymer lithium battery group, four series of 18650 lithium batteries as overcharge and over discharge, short circuit protection.
Without the activation function in the power application for high instantaneous current, and in inverter application for avoid false triggering protection. So it will use more convenient.
|
Enerkey Lithium Battery Protection Board (BMS) 3S 4S 5S 30A 11.2V 12.6V 16V 18V For Photovoltaic Solar Panels and Industrial Power & Home Energy Storage System and Electric Car and Scooter and Motorcycle
|
||
| Product model |
EK-BM3r4S30A |
EK-BM5S30A |
|
Suitable battery strings
|
3S/4S
|
5S
|
| Product size(mm) | L62.5xW23xT7.3 | L62.5xW23xT7.3 |
| Weight with box | 0.015kg | 0.020kg |
| Specical function | NTC(option) | |
| Suitable battery type | Lithium(NCM) | |
| Rated discharge current | Typ 25A / Max 30A | |
| Rated working voltage B+B- | Max 30V | |
| Peak starting current | Typ 60A | |
|
P+P- input withstand voltage
|
Max 40V
|
|
|
Charging overcurrent protection value
|
Not limited
|
|
| Charge detection voltage | Min 4.2V / Typ 4.225V / Max 4.25V | |
|
Charge detection delay time
|
Min 0.5S / Typ 1S / Max 1.3S
|
|
|
Overcharge release voltage
|
Min 4.0V / Typ 4.005V / Max 4.05V
|
|
|
Discharge detection voltage |
Min 2.65V / Typ 2.7V / Max 2.75V
|
|
| Discharge detection delay time | Min 20ms / Typ 100ms / Max 150ms | |
| Discharge release voltage | Min 2.85V / Typ 2.95V / Max 3.05V | |
|
Conditions for lifting protection
|
Disconnect external load or charge self-recovery
|
|
| Overcurrent detection voltage | Typ 0.1V | |
| Over current protection current | Min 20A / Typ 23A / Max 25A | |
| Overcurrent protection time | Min 0.7S / Typ 1S / Max 1.3S | |
| Conditions for lifting protection | Disconnect external load or charge self-recovery | |
| Short circuit protection current | Typ 40A | |
| Detection delay time | Min 150μS / Typ 250μS / Max 400μS | |
| Conditions for lifting protection | Disconnect external load or charge self-recovery | |
| Main circuit on-state resistance | Typ 9mΩ / Max 10mΩ | |
| Normal working current consumption | Typ 10μA / Max 15μA | |
| Current consumption during sleep | Max 2.5μA | |
|
Operating Temperature
|
-40℃ ~ +85℃
|
|
Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
